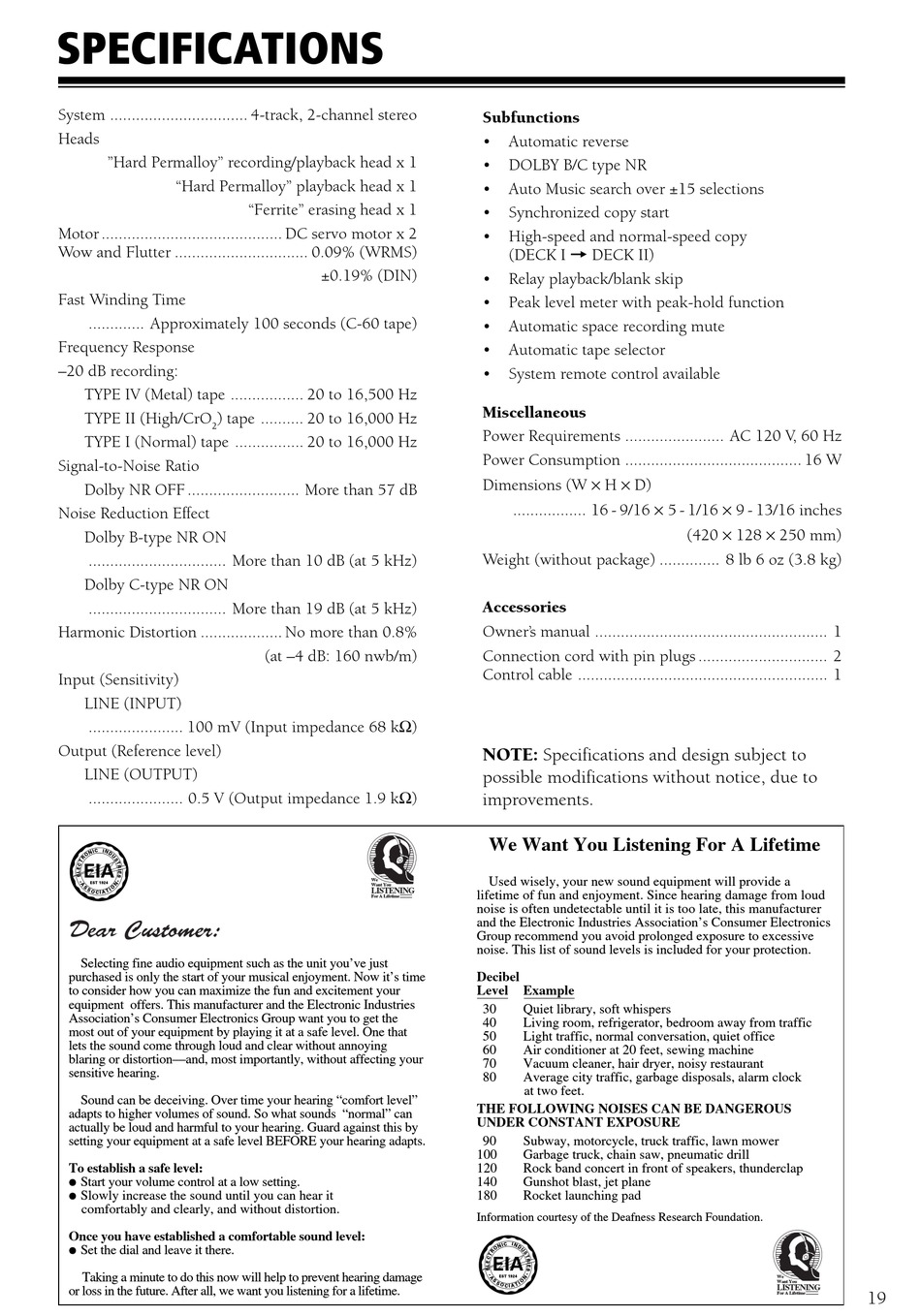

SPECIFICATIONS

System ................................ 4-track, 2-channel stereo
Heads
"Hard Permalloy" recording/playback head x 1
"Hard Permalloy" playback head x 1
Motor .......................................... DC servo motor x 2
Wow and Flutter ............................... 0.09% (WRMS)
Fast Winding Time
............. Approximately 100 seconds (C-60 tape)
Frequency Response
–20 dB recording:
TYPE IV (Metal) tape ................. 20 to 16,500 Hz
TYPE II (High/CrO
) tape .......... 20 to 16,000 Hz
2
TYPE I (Normal) tape ................ 20 to 16,000 Hz
Signal-to-Noise Ratio
Dolby NR OFF .......................... More than 57 dB
Noise Reduction Effect
Dolby B-type NR ON
................................ More than 10 dB (at 5 kHz)
Dolby C-type NR ON
................................ More than 19 dB (at 5 kHz)
Harmonic Distortion ................... No more than 0.8%
Input (Sensitivity)
LINE (INPUT)
...................... 100 mV (Input impedance 68 kΩ)
Output (Reference level)
LINE (OUTPUT)
...................... 0.5 V (Output impedance 1.9 kΩ)
EIA
EST 1924
Selecting fine audio equipment such as the unit you've just
purchased is only the start of your musical enjoyment. Now it's time
to consider how you can maximize the fun and excitement your
equipment offers. This manufacturer and the Electronic Industries
Association's Consumer Electronics Group want you to get the
most out of your equipment by playing it at a safe level. One that
lets the sound come through loud and clear without annoying
blaring or distortion—and, most importantly, without affecting your
sensitive hearing.
Sound can be deceiving. Over time your hearing "comfort level"
adapts to higher volumes of sound. So what sounds "normal" can
actually be loud and harmful to your hearing. Guard against this by
setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
÷ Start your volume control at a low setting.
÷ Slowly increase the sound until you can hear it
comfortably and clearly, and without distortion.
Once you have established a comfortable sound level:
÷ Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage
or loss in the future. After all, we want you listening for a lifetime.
"Ferrite" erasing head x 1
±0.19% (DIN)
(at –4 dB: 160 nwb/m)
We
Want You
LISTENING
For A Lifetime
Subfunctions
Automatic reverse
DOLBY B/C type NR
Auto Music search over ±15 selections
Synchronized copy start
High-speed and normal-speed copy
(DECK I = DECK II)
Relay playback/blank skip
Peak level meter with peak-hold function
Automatic space recording mute
Automatic tape selector
System remote control available
Miscellaneous
Power Requirements ....................... AC 120 V, 60 Hz
Power Consumption ......................................... 16 W
Dimensions (W × H × D)
................. 16 - 9/16 × 5 - 1/16 × 9 - 13/16 inches
Weight (without package) .............. 8 lb 6 oz (3.8 kg)
Accessories
Owner' s manual ...................................................... 1
Connection cord with pin plugs .............................. 2
Control cable .......................................................... 1
NOTE: Specifications and design subject to
possible modifications without notice, due to
improvements.
We Want You Listening For A Lifetime
Used wisely, your new sound equipment will provide a
lifetime of fun and enjoyment. Since hearing damage from loud
noise is often undetectable until it is too late, this manufacturer
and the Electronic Industries Association's Consumer Electronics
Group recommend you avoid prolonged exposure to excessive
noise. This list of sound levels is included for your protection.
Decibel
Level
Example
30
Quiet library, soft whispers
40
Living room, refrigerator, bedroom away from traffic
50
Light traffic, normal conversation, quiet office
60
Air conditioner at 20 feet, sewing machine
70
Vacuum cleaner, hair dryer, noisy restaurant
80
Average city traffic, garbage disposals, alarm clock
at two feet.
THE FOLLOWING NOISES CAN BE DANGEROUS
UNDER CONSTANT EXPOSURE
90
Subway, motorcycle, truck traffic, lawn mower
100
Garbage truck, chain saw, pneumatic drill
120
Rock band concert in front of speakers, thunderclap
140
Gunshot blast, jet plane
180
Rocket launching pad
Information courtesy of the Deafness Research Foundation.
