Owner's Manual

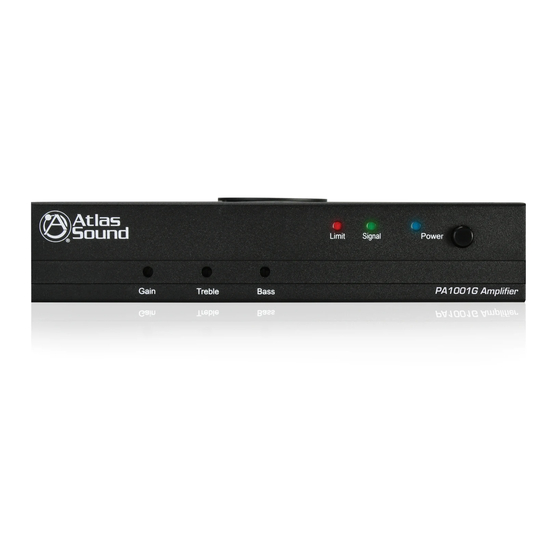

PA1001G Power Amplifier
AtlAs sound PA1001G, 1-chAnnel, 100W, 70V/100V
commerciAl PoWer AmPlifier
ultrA comPAct desiGn With inteGrAted
Video Pole mount suPPort system
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435
– 1 –
AtlasSound.com
Specifications are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA1001G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlas PA1001G

Summary of Contents for Atlas PA1001G

  • Page 1 Owner’s Manual PA1001G Power Amplifier AtlAs sound PA1001G, 1-chAnnel, 100W, 70V/100V commerciAl PoWer AmPlifier ultrA comPAct desiGn With inteGrAted Video Pole mount suPPort system 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 –...

  • Page 2: Table Of Contents

    PA1001G Power Amplifier Owner’s Manual tABle of contents Important Safety Instructions ...3 Introduction, Features, and Applications ...5 Front Panel Description ...6 Rear Panel Description ...7 Cabling ...9 Audio Sense ...9 Placement and Mounting ...10 Pole Mounting ... 11 Specifications ...12 Warranty Information ...16...

  • Page 3: Important Safety Instructions

    16. To completely disconnect this equipment from the mains, disconnect the power supply cord plug from the receptacle. 17. The mains plug of the power supply cord shall remain readily operable. PA1001G Power Amplifier The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage “...
  • Page 4 Should any of the following irregularities occur during use, immediately switch off the power, disconnect the power cord from the AC outlet and contact Atlas Sound. Do not to attempt to continue operation with the product as this may cause fire or electric shock: •...

  • Page 5: Key Features

    Hi-pass filter is incorporated. Master remote level control is easily done via an external 10k poteneometer and a line out makes easily to daisy chain amplifiers. The PA1001G can be used for many in many ways ranging from board- room, restaurant, commercial paging and back ground music applications.

  • Page 6: Power Led

    The Limit LED will illuminate Red if either channel of the PA1001G reaches maximum output power or if a fault is detected with in the amplifier. The PA1001G features a true limiter circuit which help prevents the amplifier from hard clipping or from being over driven.

  • Page 7: Speaker Connections

    This AC outlet is live all the time as long as the power cord is plugged into a live duplex outlet. Keep the total power draw below 500W. This outlet can also be used to remotely turn on the PA1001G. See AC Sense Trigger for more detailed information (page 9).

  • Page 8: Wiring The Aavcc-10K Vca Potentiometer

    “uP” or “Audio” position. By rotating the potentiometer clockwise (right) the trigger point becomes less sensitive to turn on, meaning it will take more audio signal at the input to turn on the amp. Note: Once the PA1001G has sensed audio signal and has triggered on, it will take15 -20 min for it revert back into sleep mode even when there is no audio present.

  • Page 9: Installation And Considerations

    The PA1001G can be remotely turned on via the two stereo audio inputs. The PA1001G mains power switch must be on to activate or adjust Audio Sense trigger control. Prior to power on the AC Mains Power Switch of the PA1001G follow the instructions below.

  • Page 10: Placement And Mounting

    - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the PA1001G should not be situated on sealed cabinet or on a shelf with obstacles on it that may impede the flow of air through the ventilation openings.

  • Page 11: Pole Mounting

    Owner’s Manual PA1001G Power Amplifier Pole mount Pre Assembly Pole mount final Assembly 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 11 – AtlasSound.com Specifications are subject to change without notice.

  • Page 12: Specifications

    PA1001G Power Amplifier Owner’s Manual sPecificAtions outPut PoWer 100 Watts @ 70v into 50Ω load, 100w @ 100v into 100Ω load RMS 1% THD totAl hArmonic distortion 0.2% freQuency resPonse +/-3dB 30Hz - 20 KHz No Hi-Pass Filter +/-3dB 100Hz - 20KHz Hi-Pass engaged Protection circuits AC fuse (T1.6A 250v 5mm x 20mm), Thermal, short circuit...
  • Page 13 Owner’s Manual PA1001G Power Amplifier notes: 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 13 – AtlasSound.com Specifications are subject to change without notice.
  • Page 14 PA1001G Power Amplifier Owner’s Manual notes: 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 AtlasSound.com – 14 – Specifications are subject to change without notice.
  • Page 15 Owner’s Manual PA1001G Power Amplifier notes: 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 15 – AtlasSound.com Specifications are subject to change without notice.

  • Page 16: Limited Warranty

    Musician Series stands and related accessories. Additionally, fuses and lamps carry no warranty. Atlas Sound will solely at its discretion, replace at no charge or repair free of charge defective parts or products when the product has been applied and used in accordance with our published operation and installation instructions.
