Summary of Contents for Atlas DSP2210
- Page 1 DSP2210 & Digital Processor Owner’s Manual DSP2212 and Amplifier DSP2210 & DSP2212 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasSound.com Specifications are subject to change without notice.
-
Page 2: Table Of Contents
DSP2210 & Digital Processor Owner’s Manual DSP2212 and Amplifier Table of Contents Important Safety Instructions ............................2 Introduction ..................................4 System Overview Flow Diagram ............................5 Panel Layout ..................................6 Installation and Endpoint Termination ...........................7 Software Installation and Setup ...........................10 Specifications ................................14 Troubleshooting Guide ..............................15 Warranty ..................................16... - Page 3 Should any of the following irregularities occur during use, immediately switch off the power, disconnect the power cord from the AC outlet and contact Atlas Sound. Do not to attempt to continue operation with the device as this may cause fire or electric shock: •...
-
Page 4: Introduction
Institutional, Commercial and Government facilities. The Atlas Sound DSP2210/DSP2212 is capable of automatic mixing, set up and administration of all inputs/outputs per zone (channel). This is accomplished via an intuitive ‘simple to use’ Graphic User Interface (GUI) managed via a local laptop or desktop computer that is running Microsoft ®... -
Page 5: System Overview Flow Diagram
DSP2210 & Digital Processor Owner’s Manual DSP2212 and Amplifier SYSTEM OVERVIEW – SIGNAL FLOW DIAGRAM DSP2212 Functional Limiter Bass-Treble Para - EQ Zone Amp 1 High Pass Mixer 1 70V Line 1 Bass-Treble Music L Music Mono Music R Graphic EQ... -
Page 6: Panel Layout

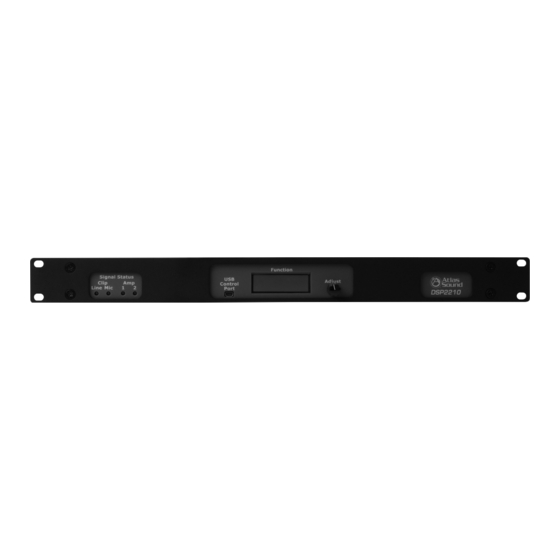

DSP2210 & Digital Processor Owner’s Manual DSP2212 and Amplifier SYSTEM VIEWS DSP2210 FRONT PANEL DSP2210 REAR PANEL DSP2212 FRONT PANEL Function Amp Status Clip Fault Adjust Control Port DSP2212 DSP2212 REAR PANEL 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. -
Page 7: Installation And Endpoint Termination
DSP2210 & Digital Processor Owner’s Manual DSP2212 and Amplifier INSTALLATION COMPUTER NETWORK TERMINATION (DSP2212 only) DSP2210/12 NOTE: All ‘RJ45’ Network connections must be wired to meet EIA/TIA 568B standard. 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 –... - Page 8 AC POWER INPUT (120VAC @ 60Hz or 240VAC @ 50Hz) As noted in the ‘Important Notices’, DSP2210/DSP2212 utilize a UL recognized IEC AC power plug and cord (provided with the unit) which must not be changed or defeated. Please follow these important instructions. Failure to do so will void the product warranties.
- Page 9 MOUNTING DSP2210/DSP2212 unit is designed to mount into standard EIA cabinets, free standing racks, or consoles using the (x4) front slots. NOTE: Allow a minimum one (1) rack space above and below (at 3.5") between DSP2210/DSP2212 and any other electronic equipment to insure proper thermal ventilation.
-
Page 10: Software Installation And Setup
Owner’s Manual DSP2212 and Amplifier SYSTEM OVERVIEW – SYSTEM HARDWARE / SOFTWARE REQUIREMENTS The DSP2210/DSP2212 unit has the following hardware and software computer requirements; • Microsoft® Windows® Operating system shall be: XP Professional, Windows® Vista, Windows® 7 or better •... - Page 11 DSP2210 & Digital Processor Owner’s Manual DSP2212 and Amplifier Select the Unit and click the “Connect to this unit” button The Software should now be able to access and control the unit – eg. Select GEQ 1 As controls are selected, the various functions/settings will appear in the screen below the system functional map for review/adjustment.
- Page 12 DSP2210 & Digital Processor Owner’s Manual DSP2212 and Amplifier PAGE PLANS Select Page Plans Button Turn on the “Zones” to be active during Telco 00 (Mic Input) Page, (and Network Pages – DSP-2212 only) NOISE RAMP Select Noise Ramp Button – “On” ramps the noise level 1dB every 10 seconds to its previous level after power up.
- Page 13 DSP2210 & Digital Processor Owner’s Manual DSP2212 and Amplifier CONNECTING TO THE LAN (DSP2212 only) Connect both the Computer running the Application Software and the unit RJ45 ports to the LAN ports on the Ethernet Router with DHCP Server Select the “Settings” screen from the Menu Click “Discover Units”...
-
Page 14: Specifications
DSP2210 & Digital Processor Owner’s Manual DSP2212 and Amplifier SPECIFICATIONS SYSTEM PERFORMANCE / DSP PROCESSORS • Dynamic range >102dB A-weighted • Frequency response 80Hz – 20kHz ± 3dB at rated output • Distortion THD+N .001% typical at +4dBu, 1kHz, 0dB gain •... -
Page 15: Troubleshooting Guide
GUI / Sound Media Interface per instructions in Section 5.0 Ensure that all speakers are connected to DSP2210/DSP2212. 4. If you continue to experience difficulty please contact Atlas Sound Customer Service department by telephone at 1-800-876-333, online at www.AtlasSound.com, or by email at atlascusser@atlasound.com. -
Page 16: Warranty
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Atlas Sound does not assume, or does it authorize any other person to assume or extend on its behalf, any other warranty, obligation, or liability. This warranty gives you specific legal rights and you may have other rights which vary from state to state.
