Zhone 6381-A3-xxx Technical Specifications

Zhone 6381-A3-xxx Technical Specifications

Adsl2+/reachdsl single port modem

Advertisement

Quick Links

Revolutionary
combination of standards
based ADSL and ReachDSL
on a single platform
DELT - Dual Ended Loop
Testing
Automatically selects
technology with best
performance - ADSL,
ADSL2, ADSL2+, or
ReachDSL 2.2
Speeds beyond 24 Mbps
using ADSL2+
Compatible with all
DSLAMs providing
standard ADSL, ADSL2,
and ADSL2+
Integrated telephone
filter
Bridge and router
configurations

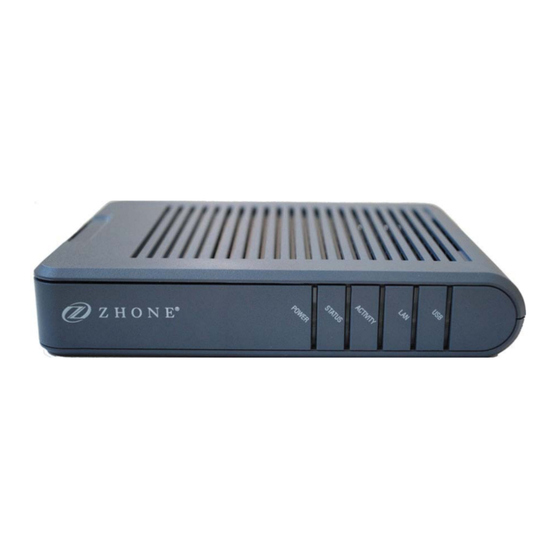

ADSL2+/ReachDSL Single Port Modem
6381-A3-xxx
ADSL2+/ReachDSL Single Port Bridge/Router
with USB
With Zhone's innovative, easy to use ADSL2+/R CPE family, service
providers can provide ADSL2+ service and ReachDSL service in the
same unit, ensuring coverage to the entire subscriber base.
The Zhone 6300 enhanced CPE are easily user-installed. The embedded
web-based user interface is designed to simplify ADSL deployment. All
products provide an Ethernet connection that is auto-sensing,
eliminating the worry about connection cable type (straight-through vs
crossover). All units include a built in POTS filter that eliminates the
expense of an external filter as well as reduces installation errors.
The 6300 enhanced CPE all default to a simple bridge. This and other
default settings make for a quick and easy installation that doesn't
require any configuration.
When operating in router mode, these gateways support DHCP
Server/Relay/Client, NAPT, as well as RIP, dynamic routing, port
forwarding, static routing, and ping initiation. For security, firewall
functions including PAP/CHAP and Packet Filtering are supported.
In addition, all of the CPE that make up the 6300 family support DELT,
or Dual End Loop Test. Because DELT is a dual-ended test, it requires
equipment that supports the DELT feature at both ends of the copper
loop.
DELT is primarily used for reactive tests on a loop after a modem has
been deployed—either to help troubleshoot a line or to capture a
baseline of loop characteristics at the time of installation.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 6381-A3-xxx and is the answer not in the manual?

Questions and answers

Summary of Contents for Zhone 6381-A3-xxx

  • Page 1 Testing Automatically selects technology with best performance - ADSL, With Zhone's innovative, easy to use ADSL2+/R CPE family, service ADSL2, ADSL2+, or providers can provide ADSL2+ service and ReachDSL service in the ReachDSL 2.2 same unit, ensuring coverage to the entire subscriber base.
  • Page 2: Technical Specifications

    Non-operating temperature: -4F to 149F (-20C ITU G.992.5 (ADSL2+) to 65C) ITU G.994.1 (G.hs) Humidity: 5% to 95%, non-condensing ITU G.997.1 Zhone ReachDSL 2.2 Ordering Information 6381-A3-200 ADSL2+/ReachDSL CPE Router (TI), 10/100BaseT, N.A. 6381-A3-210 ADSL2+/ReachDSL CPE Router (TI), 10/100BaseT, N.A., FCC Part 68 Approved 6381-A3-300 ADSL2+/ReachDSL CPE Router (TI), 10/100BaseT, U.K.

This manual is also suitable for:

6381-a3-2106381-a3-2006381-a3-3006381-a3-3026381-a3-3046381-a3-600
