Zhone 6652 6652-A1 Specification

Programmable support of
plan 997, 998, FX and
China plan
Optional U0 band for long
reach applications
DMT based packet mode
supports Ethernet-over
VDSL (EoVDSL) with
asymmetric line data rates
of 100Mbps downstream
and 50Mbps upstream, or
symmetric 50Mbps line
data rate.
Auto sensing ethernet
ports
Integrated Layer 2 switch
with traffic classification
and QoS support.
IP switching, NAT, PAT, SPI
firewall and packet
filtering
Firmware upgrade via
ethernet from local LAN
or remote side.
VDSL2 Bridged/Router
6652-A1
VDSL2 Bridged 4-Port Modem

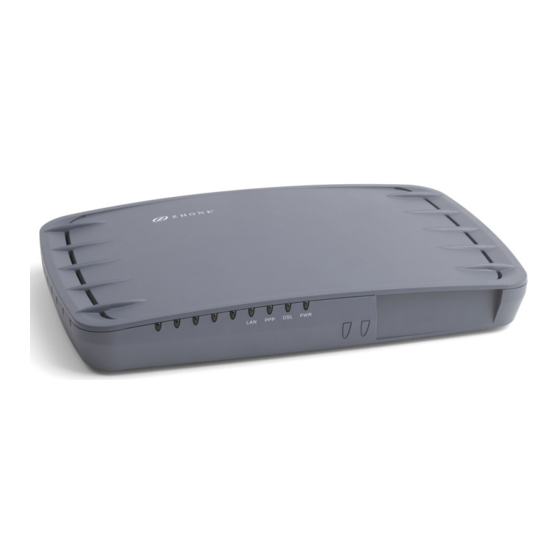

The 6652-A1 is an ethernet-over-VDSL bridge modem utilizing the
Ikanos chipset that complies with carious VDSL standards, and
provides unprecedented braodband service over a single pair of
copper wire. The four 10/100 Base-T Ethernet Ports can easily connect
to any PC or LAN in a home or small office environment. Quality and
multimedia service is ensured with it's powerful traffice control and
management over layer 2 or layer 3. While the NAT/PAT technolgies
share the broadband connection to all its LAN clients for all prevailing
internet applications, the embedded firewall keeps out those malicious
attacks and intrusions. Network management is implemented so it can
be easily configured and managed by the service provider.
