Zhone 6381-A3-xxx Specification

Zhone 6381-A3-xxx Specification

Adsl2+/reachdsl single port modem

Advertisement

Quick Links

Revolutionary
combination of standards
based ADSL and ReachDSL
on a single platform
Automatically selects
technology with best
performance - ADSL,
ADSL2, ADSL2+, or
ReachDSL 2.2
Speeds beyond 24 Mbps
using ADSL2+
Compatible with all
DSLAMs providing
standard ADSL, ADSL2,
and ADSL2+
Integrated telephone
filter
Bridge and router
configurations
Includes PPPoE and PPoA
clients

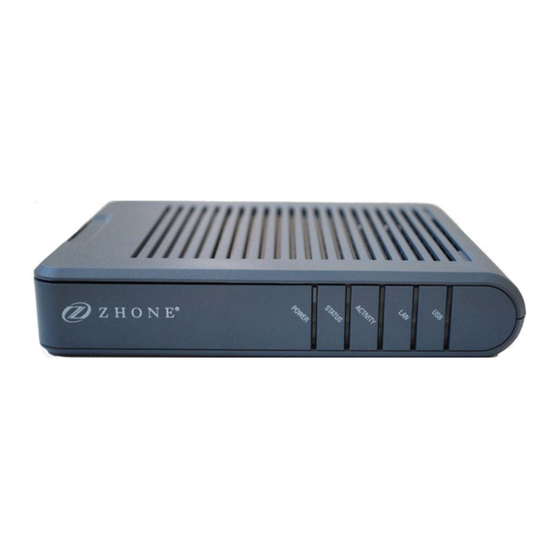

ADSL2+/ReachDSL Single Port Modem
6381-A4-xxx
ADSL2+/ReachDSL Single Port Bridge/Router with
USB
With Zhone's innovative, easy to use ADSL2+/R CPE family, service
providers can provide ADSL2+ service and ReachDSL service in the same
unit, ensuring coverage to the entire subscriber base.
The Zhone 6300 enhanced CPE are easily user-installed. The embedded
web-based user interface is designed to simplify ADSL deployment. All
products provide an Ethernet connection that is auto-sensing, eliminating
the worry about connection cable type (straight-through vs crossover). All
units include a built in POTS filter that eliminates the expense of an
external filter as well as reduces installation errors.
The 6300 enhanced CPE all default to a simple bridge. This and other
default settings make for a quick and easy installation that doesn't require
any configuration.
When operating in router mode, these gateways support DHCP
Server/Relay/Client, NAPT, as well as RIP, dynamic routing, port
forwarding, static routing, and ping initiation. For security, firewall
functions including PAP/CHAP and Packet Filtering are supported.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 6381-A3-xxx and is the answer not in the manual?

Questions and answers

Summary of Contents for Zhone 6381-A3-xxx

  • Page 1 - ADSL, ADSL2, ADSL2+, or ReachDSL 2.2 With Zhone's innovative, easy to use ADSL2+/R CPE family, service providers can provide ADSL2+ service and ReachDSL service in the same Speeds beyond 24 Mbps unit, ensuring coverage to the entire subscriber base.
  • Page 2: Technical Specifications

    Non-operating temperature: -4F to 149F (-20C ITU G.992.5 (ADSL2+) to 65C) ITU G.994.1 (G.hs) Humidity: 5% to 95%, non-condensing ITU G.997.1 Zhone ReachDSL 2.2 Ordering Information 6381-A4-200 ADSL2+/ReachDSL CPE Router (TI), 10/100BaseT, N.A. 6381-A4-300 ADSL2+/ReachDSL CPE Router (TI), 10/100BaseT, U.K.

This manual is also suitable for:

6381-a4 series
