Zhone 6228-I2-xxx Specification Manual

Bonded ADSL2+ can
provide significant rate
and reach improvements
over single line ADSL2+
deployments.
Auto-connect feature will
automatically detect the
first usable PVC and
automatically detect
PPPoE, PPPoA, and Bridge
Protocol(with DHCP Server
available)
Configurable as either a
Bridge or Router
802.11b/g Wireless Access
Point
IGMP v1/v2 support for
video deployments
Filter traffic based on
Destination or Source IP
Address and MAC
Addresses
Traffic Class Rules based
on Protocol, Source IP,
Source Port, Destination
IP, Destination Port,
802.1p

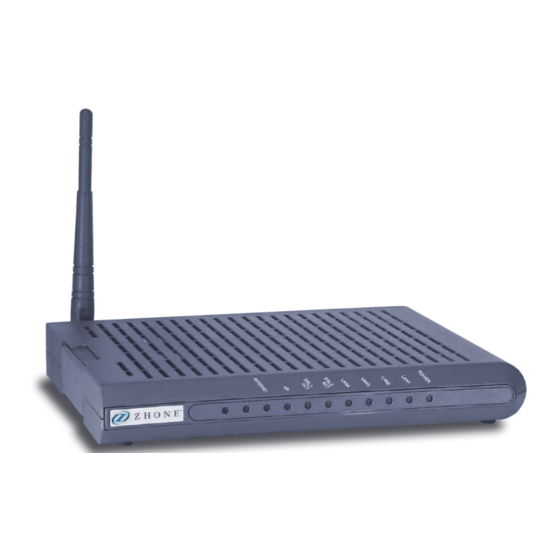

Bonded ADSL2+ 4Port Modem with WiFi
6228-I2-xxx
Bonded ADSL2+ 4 Port Switch WiFi Bridge/Router
The 6200 ADSL2+ family of endpoints deliver the required performance for
multimedia applications at very competitive price points. The 6200 ADSL2+
endpoints, in compact form factor, have been successfully used for residential,
business, in-building deployments such as hotel/motel, temporary housing,
and dormitory-campus installations for high-speed internet access (HSIA) and
video-on-demand services.
The Zhone 6200 ADSL2+ endpoints are easily user-installed. The embedded
web-based user interface is designed to simplify ADSL deployment. All
products provide an Ethernet connection that is auto-sensing, eliminating the
worry about connection cable type (straight-through vs crossover).
DELT or Dual End Loop Test, is a feature that is present the 6200 Family of
ADSL2+ CPEs. DELT is primarily used for reactive tests on a loop after a
modem has been deployed—either to help troubleshoot a line or to capture a
baseline of loop characteristics at the time of installation. Because DELT is a
dual-ended test, it requires equipment that supports the DELT feature at both
ends of the copper loop. While this prevents DELT from being used on loops
where no CPE has yet been deployed, DELT in turn offers a deeper set of loop
tests, and can provide very valuable information on the condition of a copper
loop.
Default settings make for a quick and easy installation that doesn't require any
configuration.
The modem, when operating in router mode, support DHCP
Server/Relay/Client, NAPT, as well as RIP, dynamic routing, port forwarding,
and static routing. For security, firewall functions including PAP/CHAP
authentication and IP filtering are supported.
