Zhone 6411-A1-xxx Technical Specifications

ADSL2+ Annex M support
data rates up to 3MB
Multiple PVC up to 8
support
Static IP, Dynamic RIP
routing support
Network Address
Translation (NAT)
Universal Plug and Play
Support
TR-069 Remote
Management Support

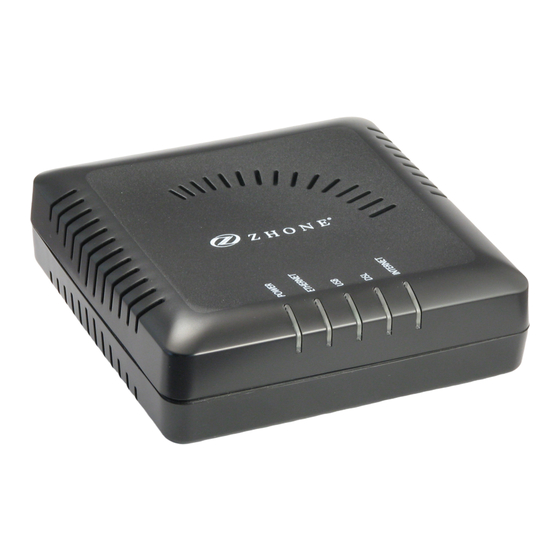

ADSL2+ Modem (Conexant)
6411-A1-xxx
ADSL2+ Modem with 1 Ethernet and 1 USB,
Conexant chipset
The Zhone 6411-A1 ADSL 2/2+ Ethernet USB Router uses Conexant
Viking II-Plus Chipset solution that fully complies with ANSI T1.413 Issue
2, ITU-T G.992.1 (G.dmt) and G.992.2 (G.lite) ADSL standard. Zhone
6411-A1 also provides higher data transmission rates with ADSL2,
ADSL2+, and Extended Reach-ADSL support. This next generation ADSL
will provide up to 12Mbps speed with an additional 600 feet reach for
ADSL2; and up to 27Mbps speed with distance up to 5,000 feet for
ADSL2+ Support. In addition, with ADSL2+ Annex M support, upstream
rate will be improved to up to 3Mbps.
Targeted at the residential users, it is for both single user using Bridge
mode with host based PPPoE Client and multi-users utilizing the
DSL309EU's inbuilt PPPoE/A, IP routing, NAT functionality to share the
ADSL link.
It comes with the Packet Filtering firewall and DMZ support for a full
security options against malicious hackers. With Universal Plug and Play
support, home networking becomes a breeze for everyone in the family.
Multi Port Range/Popular Application Forwarding makes it even easier to
select which application you want your network to allow while ensuring
your security at the same time.
