Operation - Fusion MS-NRX200 Quick Manual

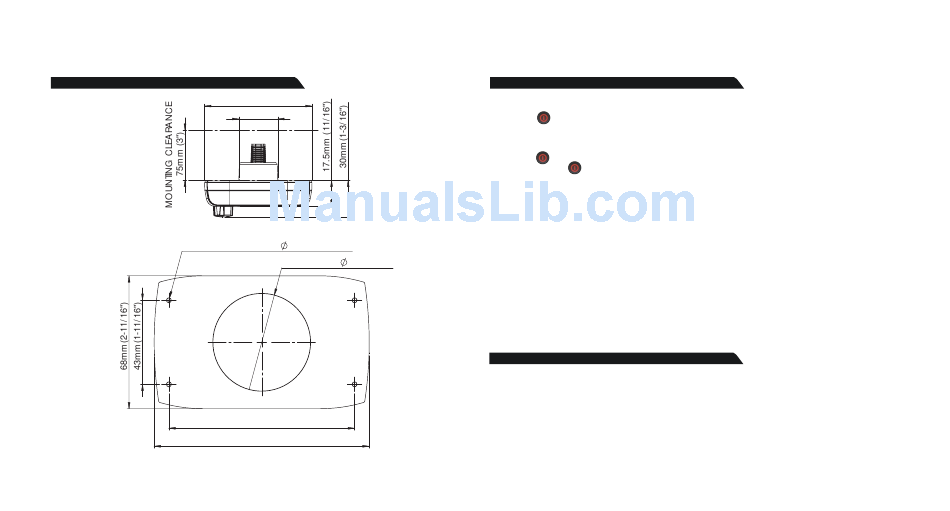

MOUNTING DIAGRAM (NOT TO SCALE)
FUSION ELECTRONICS ACCESSORIES
110mm(4 - 3/8")
40mm(1 - 5/8")
DRILL 4xPILOT HOLES 2.5mm (3/32")
DRILL HOLE 50mm(2")
95mm(3-3/4")
110mm(4-3/8")

OPERATION

POWER ON/OFF
Press to turn on the remote control. The FUSION Marine Stereo will power on if currently OFF.
Note: If the remote control is configured to display NMEA2000 data sentences the power on sequence
becomes a two-step process. See 'NMEA Repeater Mode' below.
Press to MUTE the audio when the stereo is ON.
Press and hold to turn the stereo OFF.
ASSIGNING THE REMOTE TO A STEREO
Press the 'Menu' button and select 'SETTINGS' > 'STEREO'. Select the desired stereo from the list of
available devices on the network. Press the 'Menu' button to exit.
VOLUME ADJUST
Turn the 'Rotary Encoder' to adjust volume levels. Refer to the FUSION Marine Stereo user manual for
details on how to select zones.
BACKLIGHT BRIGHTNESS
Press the 'Menu' button and select 'SETTINGS' > 'LCD'. Turn the 'Rotary Encoder' to adjust Brightness or
Contrast. Press the 'Rotary Encoder' to step between Brightness and Contrast. Press the 'Menu' button
to exit.
After a period of inactivity the remote turns off the display backlight (Default). To disable this function
Press the 'Menu' button and select 'SETTINGS' > 'DIM BACKLIGHT'. Press the 'Rotary Encoder' to
enable/disable the function. Press the 'Menu' button to exit.
NMEA2000 OPERATION
NMEA2000 REPEATER MODE
SELECTING NMEA2000 DATA SENTENCES TO DISPLAY
Press the 'Menu' button and select 'SETTINGS' > 'NMEA MONITOR'. Select the NMEA data to be
displayed from the list of available data. Press the 'Menu' button to exit.
