Fusion MS-NRX200i Instruction Manual

Fusion MS-NRX200i Installation
™
Instructions

Important Safety Information

See the Important Safety and Product Information guide in the
product box for product warnings and other important
information.
Always wear safety goggles, ear protection, and a dust mask
when drilling, cutting, or sanding.
When drilling or cutting, always check what is on the opposite
side of the surface.
Tools Needed
• Phillips screwdriver
• Drill
3
• 2.5 mm ( / in.) drill bit
32
• 50 mm (2 in.) hole saw
• Marine sealant (optional)
Connection Considerations

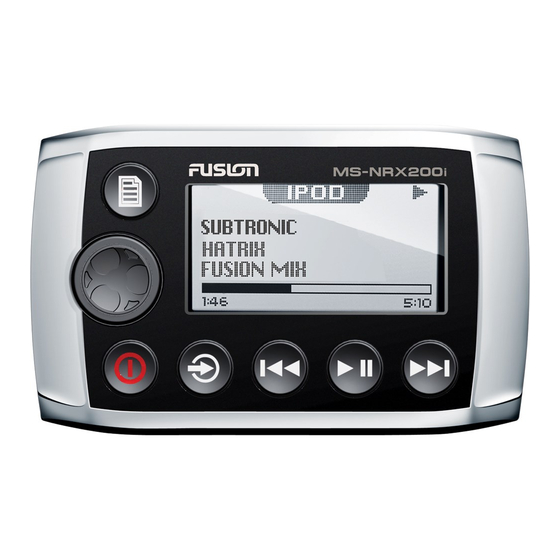

You can connect the Fusion NRX200i remote control to the
Fusion BB300 stereo using a Fusion remote control network or
an existing NMEA 2000 network.
®

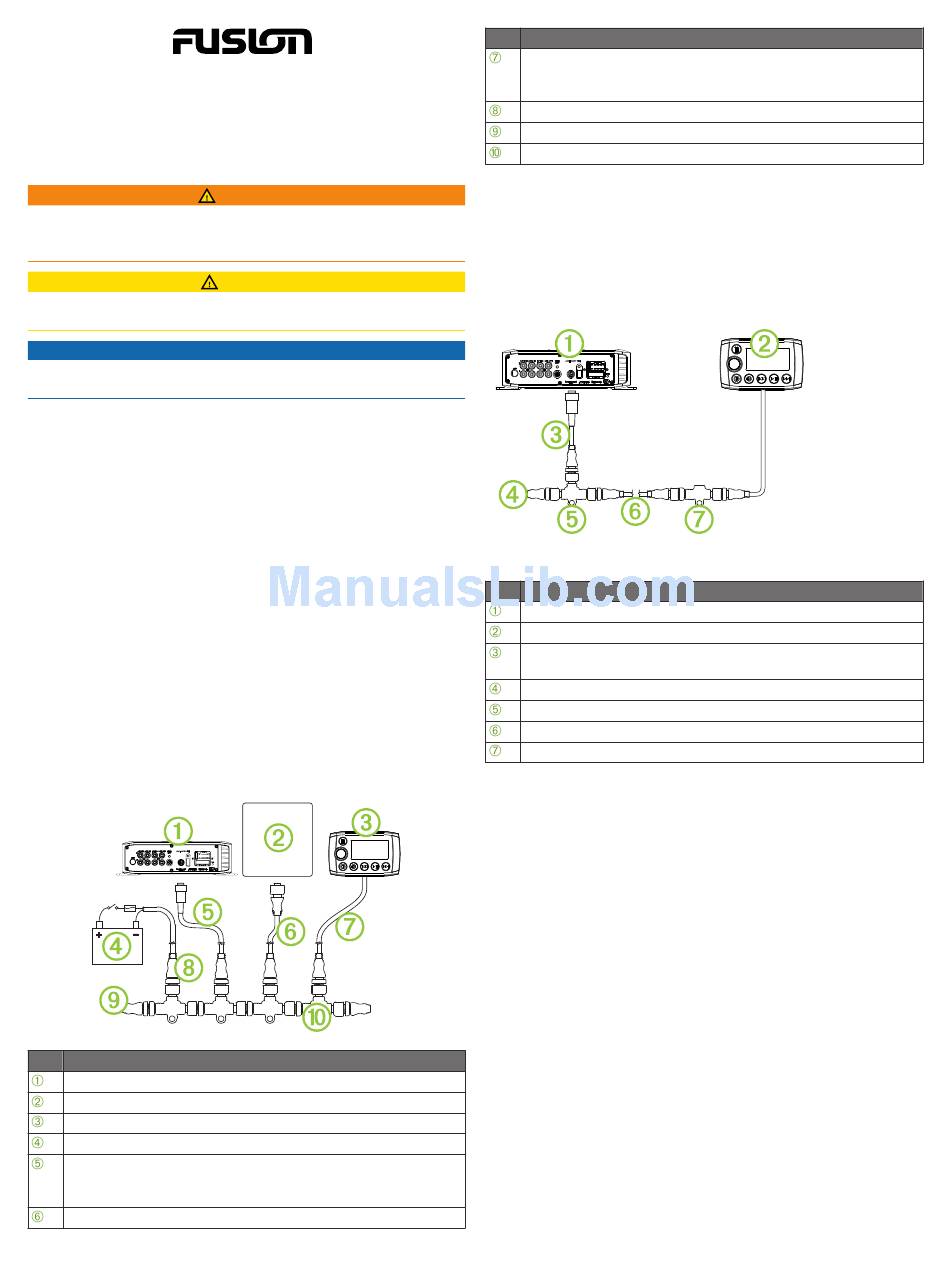

NMEA 2000 Connection Considerations
The Fusion MS-NRX200i remote connects to a NMEA 2000
network on your boat using the attached NMEA 2000 cable and
included connector. Through the NMEA 2000 network, you can
control a connected Fusion BB300 device.
You can connect an unlimited number of remote controls to the
NMEA 2000 network to control a Fusion BB300 device, but you
must build a properly balanced NMEA 2000 network.
Item Description
Fusion BB300 device
Compatible chartplotter
Fusion NRX200i remote control
12 Vdc power source with an ignition or in-line switch
Fusion BB300 NMEA 2000 drop cable
This can be extended to a maximum length of 2 m (6 ft.) using a
standard NMEA 2000 cable.
NMEA 2000 drop cable
April 2015
®
WARNING
CAUTION
NOTICE
Item Description
Fusion NRX200i remote control drop cable.
This can be extended to a maximum length of 2 m (6 ft.) using a
standard NMEA 2000 cable.
NMEA 2000 power cable
NMEA 2000 terminator or backbone cable
NMEA 2000 T-connector
Remote Control Network Connection Considerations
You must use the red, powered drop cable included with the
Fusion MS-BB300R stereo and remote bundle to create this
network.
You can connect one Fusion BB300 stereo and up to three
Fusion NRX200i remote controls to a Fusion remote control
network. If you are connecting more than three remote controls
to the stereo, you must connect to a full NMEA 2000 network.
Item Description
Fusion BB300 stereo
Fusion NRX200i remote control
Red, powered drop cable, supplied with Fusion MS-BB300R
stereo and remote bundle
NMEA 2000 female terminator
NMEA 2000 T-connector
NMEA 2000 backbone cable, 6 m (20 ft.)
NMEA 2000 inline terminator
Mounting Considerations
When selecting a mounting location, observe these
considerations.
• The device must be mounted in a location where there is at
least 75 mm (3 in.) of clearance behind the mounting surface
and you can access the controls after it is mounted.
• If you want to mount the device outside the boat, it must be
mounted in a location well above the waterline, where it is not
submerged.
• If you want to mount the device outside the boat, it should be
mounted in a location where it will not be damaged by a
docks, pilings, or other pieces of equipment.
Mounting the Remote Control
1 At the mounting location, use a 50 mm (2 in.) hole saw to cut
through the mounting surface.
2 Place the remote control in the cutout and mark the pilot
holes.
3
Remove the remote control from the cutout, and using a
3
2.5 mm ( / in.) drill bit, drill the pilot holes.
32
4
Apply marine sealant around the cutout (optional).
5
Place the gasket on the back of the remote control.
6
Feed the attached NMEA 2000 cable through the cutout.
7
Place the remote control in the cutout.
Printed in Thailand 190-01914-03_0A
