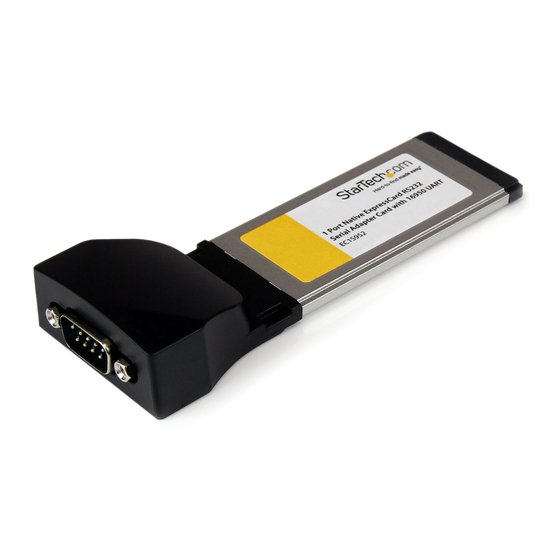

- Page 1 EC1S952 EC2S952 Instruction Manual ExpressCard Serial Adapter 1 or 2 Port Native Expresscard to RS232 Serial Adapter Card with 16950 UART...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en- dorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 1 Hardware Installation ..............1 Driver Installation .................2 Verifying Installation ..............3 Specifications ..............4 Technical Support ............5 Warranty Information ............5... -
Page 4: Introduction
Introduction Packaging Contents • 1 x EC1S952/EC2S952 adapter card • 1 x Driver CD • 1 x User Manual • 1 x 34 to 54mm Slot Spacer Adapter • 1 x Dual DB9 breakout cable (EC2S952 only) System Requirements •... -
Page 5: Driver Installation
The EC1S952/EC2S952 adapter cards will simply slide into the Expresscard slot on the laptop. Push the card all the way in, until it ‘clicks’ and locks into place. To eject the card, simply push the card further into the slot until it clicks, and then release and it will then be ejected from the slot. -
Page 6: Verifying Installation
Verifying Installation From the main desktop, right-click on “My Computer” (“Computer” in Vista), then select Manage. In the new Computer Management window, select Device Manager from the left window panel. Double-click on the “Ports (COM & LPT)” option. The appropriate number of additional COM ports should be visible. -
Page 7: Specifications
Specifications EC1S952 EC2S952 Bus Interface Expresscard 1.0 Connectors 1 x DB9 2 x DB9 Chipset Oxford OXPCIe952 UART 16C950 Maximum Baud Rate 460 kbps Form Factor Expresscard/34 and 54 Supported Operating Windows 2000/XP/Server 2003/Vista Systems (32/64-bit) -
Page 8: Technical Support
Technical Support StarTech.com’s lifetime technical support is an integral part of our com- mit-ment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our com- prehensive selection of online tools, documentation, and downloads. - Page 9 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
