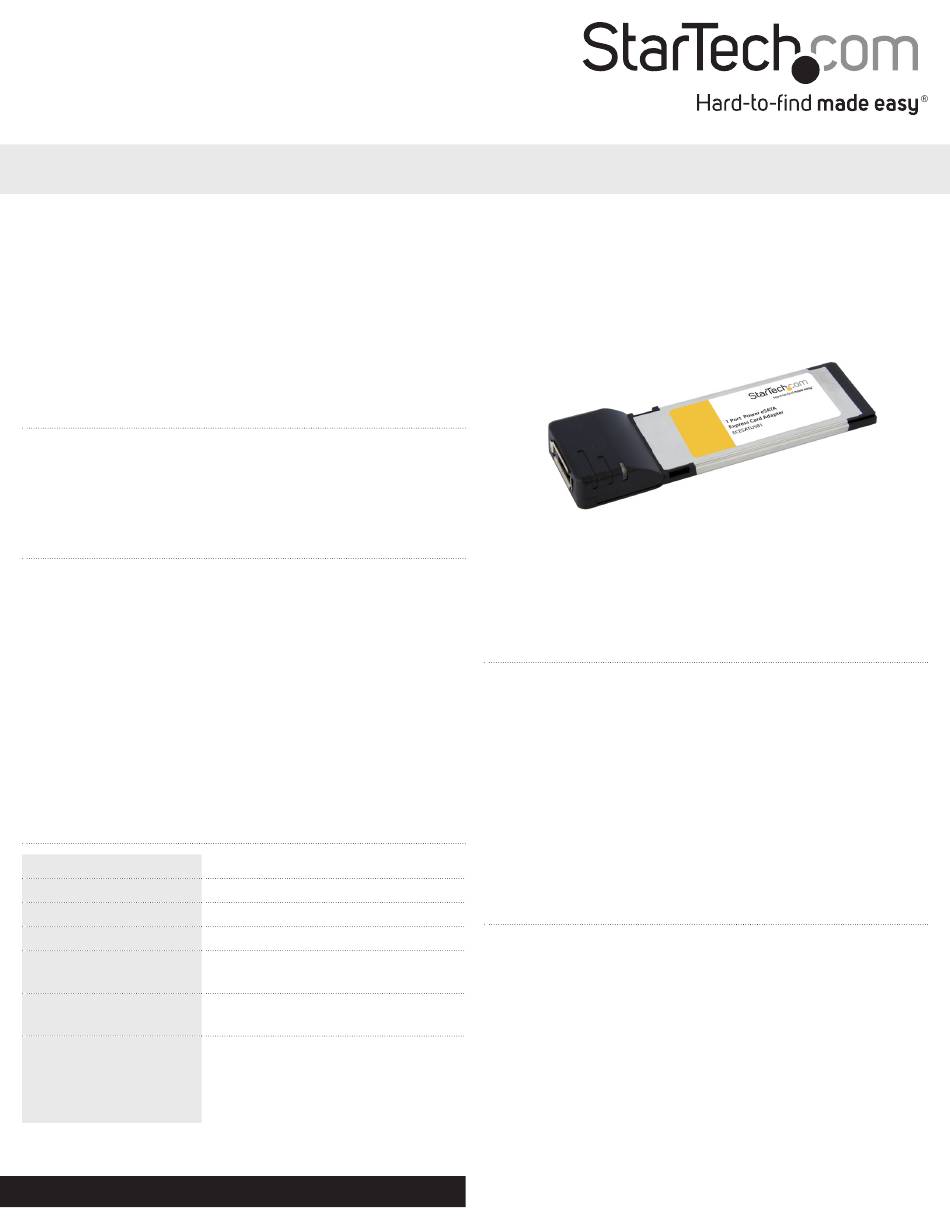

Instruction Manual
1 Port Power eSATA Express Card Adapter
ECESATUSB1
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• ECESATUSB1 adapter card
• Driver CD
• Installation Guide
Using the ECESATUSB1 Card
The Power eSATA port is a specially designed connector that will
allow you to connect either an eSATA connector or USB type A
connector into the same port. Both eSATA and USB can be used
simultaneously, through adapters
(ie. StarTech.com ID: ESATAUSBBO).
Power eSATA cables (ie. StarTech.com ID: ESATAUSB3) are also
available that provide eSATA data and 5V power over a single cable
for compatible Power eSATA devices (2.5" HDD only).
Compatible with eSATA Flash Drives.
Specifications
Bus Interface
Connectors
Chipset
LED
Maximum Data Transfer
Rate
Maximum Data Transfer
Rate
Compatible Operating
Systems
For the most up-to-date information, please visit: www.startech.com
ExpressCard/34
1 x Power eSATA (eSATA+USB)
Silicon Image SiI3132
1 x eSATA Activity
eSATA: 3 Gb/s
USB: 480 Mb/s
eSATA: 3 Gb/s
USB: 480 Mb/s
Windows 2000/XP/Vista/7, Mac OS
10.5.x, Red Hat Enterprise Linux 4
Update 2 , SUSE Linux Enterprise 9.0
SP2
Installation
1. The ECESATUSB1 card will fit into any ExpressCard/34 or
ExpressCard/54 slot. Push the card into slot, until it "clicks". See
your laptop's documentation for more specific information on
plugging ExpressCard adapter cards into the slot.
2. After the card is inserted into the ExpressCard slot, Windows
should automatically detect new hardware. The Found New
Hardware wizard should appear.
3. When prompted, insert the included driver CD into your
computer and Windows should automatically start searching the
CD. Otherwise click "Next" to proceed.
4. Follow any on screen prompts, until the card is successfully installed.
Verifying Installation For Windows 2000/
XP/Vista/7
1. From the main desktop, right-click on My Computer, then select
Manage. In the new Computer Management window, select
Device Manager from the left window panel.
2. Under the "SCSI and RAID Controllers" (2000/XP) or "Storage
Controllers" (Vista/7) category, you should see a device called
Silicon Image SiI3132.
3. Right-click on that device and select Properties, and under Device
Status is should say it's working properly.
*actual product may vary from photos
Manual Revision: 02/28/2012
