- Page 1 EC4S952 Instruction Manual ExpressCard Serial Adapter 4-Port ExpressCard to RS232 Serial Adapter Card with 16C950 UART Manual Revision:06/30/2010 For the most up-to-date information, please visit www.startech.com...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. -
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents ................1 System Requirements ................1 Installation ..............1 Hardware Installation ................1 Driver Installation .................. 1 Specifications ..............2 Technical Support ............3 Warranty Information ..........3... -
Page 4: Introduction

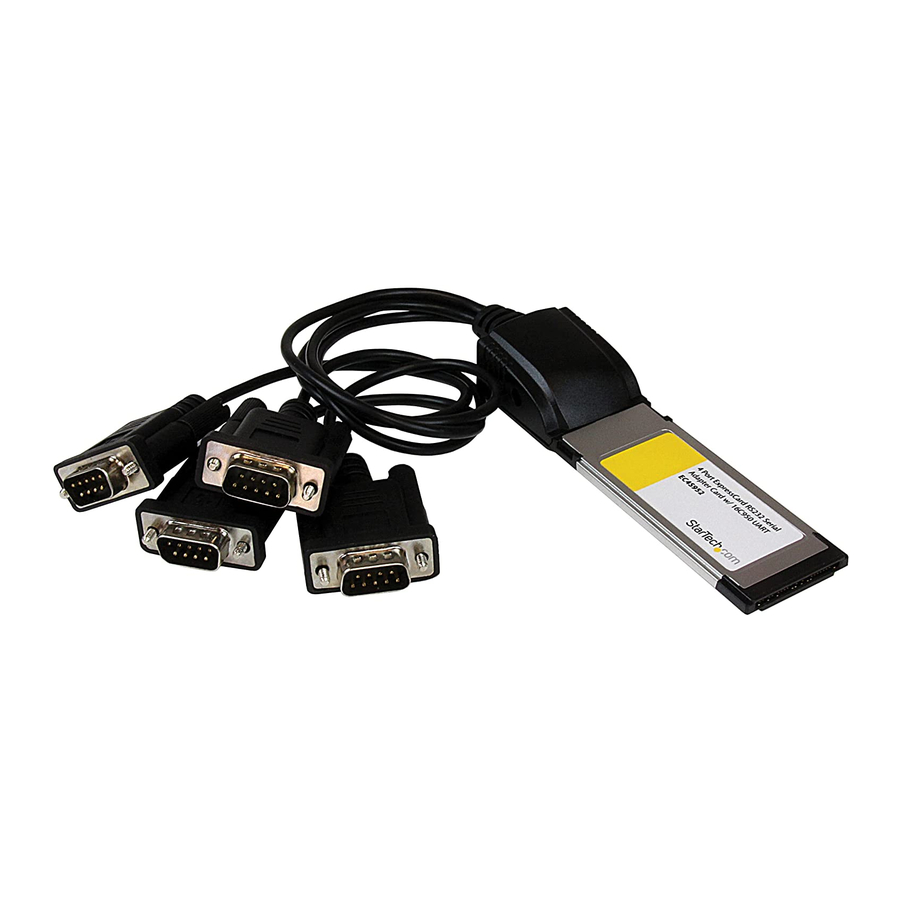

Introduction The StarTech.com 4-Port ExpressCard to RS232 Serial Adapter Card adds four DB9 RS232 serial ports to a laptop or ExpressCard enabled desktop computer system. Based on a single-chip architecture (as opposed to cards that use a “bridge chip”), thus providing native PCI Express communication for greater performance and reliability, as well as reduced power consumption and a CPU load reduction of up to 48%. -
Page 5: Installation
Installation Hardware Installation The ExpressCard adapter will simply slide into the ExpressCard slot on any compatible system. Push the card all the way in, until it ‘clicks’ and locks into place. To eject the card, simply push the card further into the slot until it clicks, and then release and it will then be automatically ejected from the slot. -
Page 6: Verifying Installation
Verifying Installation Windows 2000/XP/Server 2003/Vista/7/Server 2008 R2 From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. In the new Computer Management window, select Device Manager from the left window panel. There should be a category called “Multi-port serial adapters” and double- clicking on the “Ports (COM &... -
Page 7: Specifications
Specifications Bus Interface ExpressCard 1.1 Form Factor 34mm Chipset ID Oxford OXPCIe954 Connectors 4 x DB9 male Supported Protocols RS232 Maximum Data Transfer Rate 921.6Kbps Operating Temperature 0°C ~ 55°C (32°F ~ 131°F) Storage Temperature -20°C ~ 85°C (-4°F ~ 185°F) Humidity 5% ~ 95% RH Dimensions... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 9 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
