Application
The DM2 and DR2 dome cameras are notable for their ability
to work in just about any environment. Because the available
camera options perform in extreme high and low-light situations,
it's easy to find a camera tailored to most security applications.
The discreet DM2 is ideal for indoor applications including retail
environments and healthcare facilities. The DR2, with its vandal
resistant and weather resistant characteristics, is well-suited
for exterior installations including shipping ports and banking
institutions as well as parking lots.
Specifications
DM2/DR2 Camera Models
DRX/DMX (XP3)
Features
Sensor
1/3-in. GE Xposure
Wide Dynamic Range
95 dB typical, 120 dB max
Signal System
NTSC/PAL Selectable
Scanning System
525/60 (NTSC); 625/50 (PAL)
Digital Zoom
—
Synchronization
DC Internal/AC Line Lock
Effective Pixels (HxV)
720 x 540 (NTSC and PAL)
Horizontal Resolution
540 TVL
Sensitivity
0.5 lux @ f1.2, 30 IRE
S/N Ratio
> 49 dB
AGC
on/off, fully programmable
Gamma Compensation
0.45 NTSC; 0.36 PAL
Composite Output
1.0 V p-p @ 75 ohms
Frame Integration
2X~32X
Privacy Masking
—
Mirror
Horizontal
White Balance
ATW/ATW-Extend/Manual
D/N Switching
—
Aperture Correction
—
Lens Mount
D-mount
Lens Options
3.3 to 12 mm Al f1.5
9 to 22 mm Al f2.0
Auto Exposure
—
Manual Exposure
—
Environmental
Operating Temperature (DM2)
32 to 104°F (0 to 40 °C)
Operating Temperature (DR2)
-58 to 122°F (-50 to 50 °C)
Electrical
Input Voltage
12 VDC or 24 VAC
Power Consumption
3W (DC); 2.4 W (AC)
Physical
Dimensions
5.32 x 4.30 in. (135 x 109 mm)
Weight
DM2: 14.5 oz (411 g)
DR2: 33.4 oz (949 g)
Regulatory Certifications
FCC, CE, C-TICK, UL
Typical Camera Locations
XP3
HDR EVR
Loading docks
Y
Y
ATM kiosks
Y
Y
Retail stores
Y
Y
Office lobbies
Y
Y
Automotive dealership showrooms
Y
Y
Hospital hallways / surgical suites
Y
Y
Parking garages
N
Y
DRH/DMH (HDR)
DRE/DME (EVR)
1/3-in. interline transfer
1/3-in. interline transfer
Double Speed CCD
Super HAD CCD
52 dB
—
NTSC or PAL standard
NTSC or PAL standard
525/60 (NTSC), 625/50 (PAL);
525/60 (NTSC), 625/50 (PAL);
2:1 Interlace
2:1 Interlace
—
—
DC Internal/AC Line Lock
DC Internal/AC Line Lock
811 x 508 (NTSC);
811 x 508 (NTSC);
795 x 596 (PAL)
795 x 596 (PAL)
500 TVL color
540 TVL color
0.5 lux @ f1.2, 30 IRE
1.0 lux @ f1.5, 30 IRE
> 48 dB
> 49 dB
0 to 36 dB
0 to 32 dB
8 Curves selectable
9 Curves selectable
1.0 V p-p @ 75 ohms
1.0 V p-p @ 75 ohms
2X~160X
—
8 areas ON/OFF, color, position,
8 areas ON/OFF, 2 colors,
size adjustable
position, size adjustable
Horizontal, Vertical, 180°
—
ATW/Manual
ATW/AWB/Manual
Lens with IR cut filter/auto
—
3 levels adjustable
0 to 9 steps adjustable
D-mount
D-mount
3.3 to 12 mm Al f1.5
3.3 to 12 mm Al f1.5
9 to 22 mm Al f2.0
9 to 22 mm Al f2.0
1/60 (1/50) sec
1/60 (1/50) sec
1/60 (1/50), 1/120, 1/250,
1/60 (1/50), 1/120, 1/250,
1/500, 1/1000, 1/2000, 1/5000
1/500, 1/1000, 1/2000, 1/5000
1/10000 sec.
1/10000 sec.
(only in normal light mode)
32 to 104°F (0 to 40°C)
32 to 104°F (0 to 40°C)
-22 to 122°F (-30 to 50°C)
-22 to 122°F (-30 to 50°C)
12 VDC or 24 VAC
12 VDC or 24 VAC
3.4W (DC);2.9 W (AC
4.5 W (DC); 3.6 W (AC)
5.32 x 4.30 in. (135 x 109 mm)
5.32 x 4.30 in. (135 x 109 mm)
DR2: 33.4 oz (949 g)
DM2: 14.5 oz (411 g
DM2: 14.5 oz (411 g)
DR2: 33.4 oz (949 g)
FCC, CE, C-TICK, UL
FCC, CE, C-TICK, UL

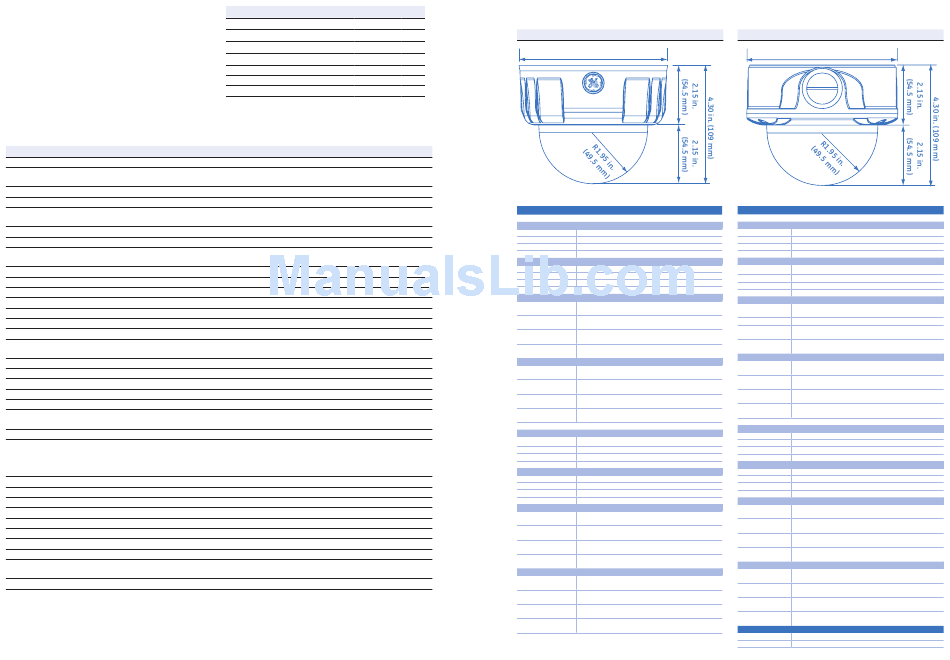

Dimensional Diagrams
N
The DM2 and DR2 housings are interchangeable – select the best housing for your environment and add an XP3, HDR or EVR camera.
N
DM2 Dome Housing
Y
5.32 in. (135 mm)
Y
N
N
Y
Ordering Information
DM2 Plastic Dome — 12VDC/24VAC
Coax
EVR
GEC-DMEP-VA3
540 TVL, PAL, 3.3-12mm Varifocal Autoiris
GEC-DMEP-VA9
540 TVL, PAL, 9-22mm Varifocal Autoiris
GEC-DME-VA3
540 TVL, NTSC, 3.3-12mm Varifocal Autoiris
GEC-DME-VA9
540 TVL, NTSC, 9-22mm Varifocal Autoiris
HDR
GEC-DMHP-VA3
500 TVL WDR, PAL, 3.3-12mm Varifocal Autoiris
GEC-DMHP-VA9
500 TVL WDR, PAL, 9-22mm Varifocal Autoiris
GEC-DMH-VA3
500 TVL WDR, NTSC, 3.3-12mm Varifocal Autoiris
GEC-DMH-VA9
500 TVL WDR, NTSC, 9-22mm Varifocal Autoiris
XP3
GEC-DMXP-VA3
540 TVL UltraView WDR, PAL, 3.3-12mm Varifocal
Autoiris
GEC-DMXP-VA9
540 TVL UltraView WDR, PAL, 9-22mm Varifocal
Autoiris
GEC-DMX-VA3
540 TVL UltraView WDR, NTSC, 3.3-12mm Varifocal
Autoiris
GEC-DMX-VA9
540 TVL UltraView WDR, NTSC, 9-22mm Varifocal
Autoiris
D/N
GEC-DMHDNP-VA3
500 TVL WDR, Day/Night, PAL, 3.3-12mm Varifocal
Autoiris
GEC-DMHDNP-VA9
500 TVL WDR, Day/Night, PAL, 9-22mm Varifocal
Autoiris
GEC-DMHDN-VA3
500 TVL WDR, Day/Night, NTSC, 3.3-12mm Varifocal
Autoiris
GEC-DMHDN-VA9
500 TVL WDR, Day/Night, NTSC, 9-22mm Varifocal
Autoiris
UTP
EVR
GEC-DMEUP-VA3
540 TVL, UTP, PAL, 3.3-12mm Varifocal Autoiris
GEC-DMEUP-VA9
540 TVL, UTP, PAL, 9-22mm Varifocal Autoiris
GEC-DMEU-VA3
540 TVL, UTP, NTSC, 3.3-12mm Varifocal Autoiris
GEC-DMEU-VA9
540 TVL, UTP, NTSC, 9-22mm Varifocal Autoiris
HDR
GEC-DMHUP-VA3
500 TVL WDR, UTP, PAL, 3.3-12mm Varifocal Autoiris
GEC-DMHUP-VA9
500 TVL WDR, UTP, PAL, 9-22mm Varifocal Autoiris
GEC-DMHU-VA3
500 TVL WDR, UTP, NTSC, 3.3-12mm Varifocal Autoiris
GEC-DMHU-VA9
500 TVL WDR, UTP, NTSC, 9-22mm Varifocal Autoiris
XP3
GEC-DMXUP-VA3
540 TVL UltraView WDR, UTP, PAL, 3.3-12mm
Varifocal Autoiris
GEC-DMXUP-VA9
540 TVL UltraView WDR, UTP, PAL, 9-22mm
Varifocal Autoiris
GEC-DMXU-VA3
540 TVL UltraView WDR, UTP, NTSC, 3.3-12mm
Varifocal Autoiris
GEC-DMXU-VA9
540 TVL UltraView WDR, UTP, NTSC, 9-22mm
Varifocal Autoiris
D/N
GEC-DMHDNUP-VA3 500 TVL WDR, Day/Night, UTP, PAL, 3.3-12mm
Varifocal Autoiris
GEC-DMHDNUP-VA9 500 TVL WDR, Day/Night, UTP, PAL, 9-22mm
Varifocal Autoiris
GEC-DMHDNU-VA3
500 TVL WDR, Day/Night, UTP, NTSC, 3.3-12mm
Varifocal Autoiris
GEC-DMHDNU-VA9
500 TVL WDR, Day/Night, UTP, NTSC, 9-22mm
Varifocal Autoiris
DR2 Dome Housing
5.32 in. (135 mm)
DR2 Rugged Dome — 12VDC/24VAC
Coax
EVR
GEC-DREP-VA3
540 TVL, PAL, 3.3-12mm Varifocal Autoiris
GEC-DREP-VA9
540 TVL, PAL, 9-22mm Varifocal Autoiris
GEC-DRE-VA3
540 TVL, NTSC, 3.3-12mm Varifocal Autoiris
GEC-DRE-VA9
540 TVL, NTSC, 9-22mm Varifocal Autoiris
HDR
GEC-DRHP-VA3
500 TVL WDR, PAL, 3.3-12mm Varifocal Autoiris
GEC-DRHP-VA9
500 TVL WDR, PAL, 9-22mm Varifocal Autoiris
GEC-DRH-VA3
500 TVL WDR, NTSC, 3.3-12mm Varifocal Autoiris
GEC-DRH-VA9
500 TVL WDR, NTSC, 9-22mm Varifocal Autoiris
XP3
GEC-DRXP-VA3
540 TVL UltraView WDR, PAL, 3.3-12mm Varifocal
Autoiris
GEC-DRXP-VA9
540 TVL UltraView WDR, PAL, 9-22mm Varifocal Autoiris
GEC-DRX-VA3
540 TVL UltraView WDR, NTSC, 3.3-12mm Varifocal
Autoiris
GEC-DRX-VA9
540 TVL UltraView WDR, NTSC, 9-22mm Varifocal
Autoiris
D/N
GEC-DRHDNP-VA3 500 TVL WDR, Day/Night, PAL, 3.3-12mm Varifocal
Autoiris
GEC-DRHDNP-VA9 500 TVL WDR, Day/Night, PAL, 9-22mm Varifocal
Autoiris
GEC-DRHDN-VA3
500 TVL WDR, Day/Night, NTSC, 3.3-12mm Varifocal
Autoiris
GEC-DRHDN-VA9
500 TVL WDR, Day/Night, NTSC, 9-22mm Varifocal
Autoiris
UTP
EVR
GEC-DREUP-VA3
540 TVL, UTP, PAL, 3.3-12mm Varifocal Autoiris
GEC-DREUP-VA9
540 TVL, UTP, PAL, 9-22mm Varifocal Autoiris
GEC-DREU-VA3
540 TVL, UTP, NTSC, 3.3-12mm Varifocal Autoiris
GEC-DREU-VA9
540 TVL, UTP, NTSC, 9-22mm Varifocal Autoiris
HDR
GEC-DRHUP-VA3
500 TVL WDR, UTP, PAL, 3.3-12mm Varifocal Autoiris
GEC-DRHUP-VA9
500 TVL WDR, UTP, PAL, 9-22mm Varifocal Autoiris
GEC-DRHU-VA3
500 TVL WDR, UTP, NTSC, 3.3-12mm Varifocal Autoiris
GEC-DRHU-VA9
500 TVL WDR, UTP, NTSC, 9-22mm Varifocal Autoiris
XP3
GEC-DRXUP-VA3
540 TVL UltraView WDR, UTP, PAL, 3.3-12mm Varifocal
Autoiris
GEC-DRXUP-VA9
540 TVL UltraView WDR, UTP, PAL, 9-22mm Varifocal
Autoiris
GEC-DRXU-VA3
540 TVL UltraView WDR, UTP, NTSC, 3.3-12mm Varifocal
Autoiris
GEC-DRXU-VA9
540 TVL UltraView WDR, UTP, NTSC, 9-22mm Varifocal
Autoiris
D/N
GEC-DRHDNUP-VA3 500 TVL WDR, Day/Night, UTP, PAL, 3.3-12mm Varifocal
Autoiris
GEC-DRHDNUP-VA9 500 TVL WDR, Day/Night, UTP, PAL, 9-22mm Varifocal
Autoiris
GEC-DRHDNU-VA3 500 TVL WDR, Day/Night, UTP, NTSC, 3.3-12mm
Varifocal Autoiris
GEC-DRHDNU-VA9 500 TVL WDR, Day/Night, UTP, NTSC, 9-22mm Varifocal
Autoiris
Brackets
DR-FM
Flush ceiling mount bracket
DR-RWM
Wall mount bracket
