Camera specifications
Modules
22x color
Sensor
1/4 in. CCD
Zoom
Optical 22x; Digital 12x
Resolution
470 TVL NTSC, 460 TVL PAL
Synchronization
Internal/line lock
Lens
F=4mm (wide) to 64mm
(tele); F1.6 to F3.8
Angle of View (H)
47.3° (wide) to 2.2° (tele)
Sensitivity
3 lux at 1/60 sec NTSC or
1/50 sec PAL
Sensitivity,
N/A
ICR-off
Electronic
1/60 to 1/30,000 sec, NTSC;
Shutter Speed
1/50 to 1/30,000 sec, PAL
Video Output
1.0 V p-p

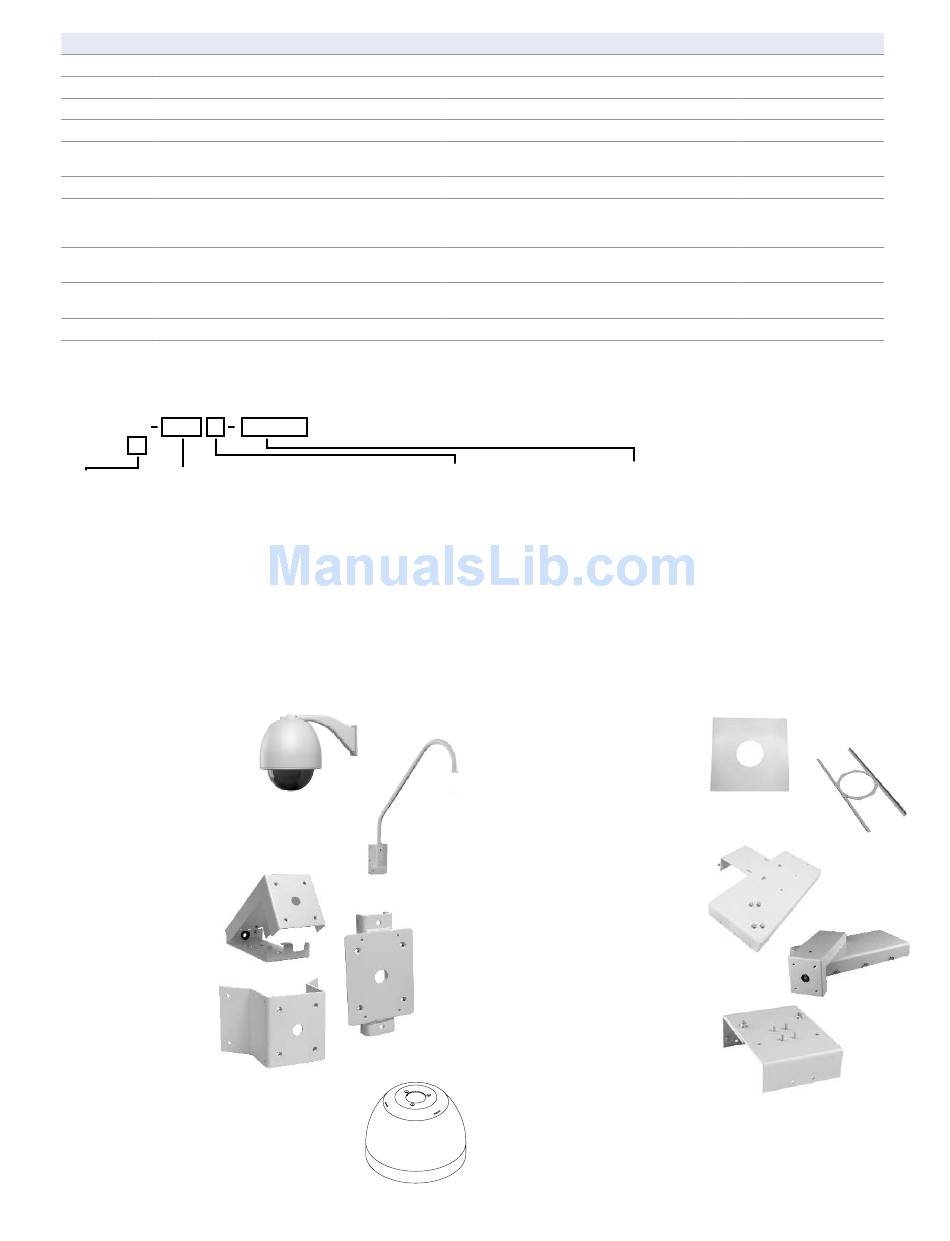

Ordering Information
First, choose the CyberDome™ II housing, bubble, and camera that you want.
CY
Model
Housing
S
Select
F
Flush mount
B
Standard
FP
Plenum-rated flush mount
H
Pendant mount
HE
Pendant mount with heater and fan
C
Wall mount
CE
Wall mount with heater and fan
D
Heavy duty
DE
Heavy duty with heater and fan
P
Wall mount pendant pressurized
housing
PE
Pendant pressurized housing
R
Rugged pendant
RE
Rugged pendant with heater and fan
Then, choose mounting accessories from the list below.
GEA-102
Cast-aluminum wall-mount arm
• Weight: 2.0 lb. (0.91 kg)
• Material: Aluminum
• Finish: Gray
GEA-104
Parapet swing-arm mount
• Weight: 7.75 lb. (3.52kg)
• Material: Aluminum
• Finish: Gray powder coat
GEA-105
Corner-mount adapter
• Weight: 1.9 lb. (0.86 kg)
• Material: Aluminum
• Finish: Gray powder coat
GEA-106
Pole-mount adapter
• Weight: 14.4 oz. (408 g)
• Material: Aluminum
• Finish: Gray powder coat
GEA-107
Roof-mount adapter
• Weight: 1.2 lb. (0.54 kg)
• Material: Aluminum
• Finish: Gray powder coat
IDH-5200
Sun-shield for standard and rugged housings
• Dimensions: 10.75 in. (273 mm) x 7.51 in. (191 mm)
• Material: ABS plastic
• Finish: Gray powder coat
18x day/night
23x day/night with WDR
1/4 in. CCD
1/4 in. CCD
Optical 18x; Digital 12x
Optical 23x; Digital 12x
470 TVL NTSC, 460 TVL PAL
470 TVL NTSC, 460 TVL PAL
Internal/line lock
Internal/line lock
F=4.1mm (wide) to 73.8mm
F=3.6mm (wide) to 82.8mm
(tele); F1.4 to F3.0
(tele); F1.6 to F3.7
48° (wide) to 2.8° (tele)
54° (wide) to 2.5° (tele)
0.7 lux at 1/60 sec NTSC or
3 lux at 1/60 sec NTSC or
1/50 sec PAL; 0.05 lux at
1/50 sec PAL; 0.2 lux at
1/4 sec NTSC or 1/3 sec PAL
1/4 sec NTSC or 1/3 sec PAL
0.01 lux at 1/4 sec NTSC or
0.02 lux at 1/4 sec NTSC or
1/3 sec PAL
1/3 sec PAL
1/4 to 1/10,000 sec, NTSC;
1/60 to 1/30,000 sec, NTSC;
1/3 to 1/10,000 sec, PAL
1/50 to 1/30,000 sec, PAL
1.0 V p-p
1.0 V p-p
Dome Bubble
2
Bronze acrylic
(pressurized only)
3
Clear acrylic
4
Smoke acrylic
6
Chrome mirrored
acrylic
7
Gold mirrored
acrylic
8
Clear polycarbonate†
9
Smoke polycarbonate†
† Available for F, FP, D, DE, R,
and RE housing options
< GEA-102
GEA-104 >
< GEA-105
^ GEA-106
< GEA-107
IDH-5200 >
26x day/night
1/4 in. CCD
Optical 26x; Digital 12x
470 TVL NTSC, 460 TVL PAL
Internal/line lock
F=3.5mm (wide) to 91mm
(tele); F1.6 to F3.8
54.2° (wide) to 2.2° (tele)
1 lux at 1/60 sec NTSC or
1/50 sec PAL; 0.07 lux at
1/4 sec NTSC or 1/3 sec PAL
0.01 lux at 1/4 sec NTSC or
1/3 sec PAL
1/4 to 1/10,000 sec, NTSC;
1/3 to 1/10,000 sec, PAL
1.0 V p-p
PTZ Camera Assembly
C22N 22x select color camera, NTSC
C18P 22x select color camera, PAL
D18N 18x day/night camera, NTSC
D18P 18x day/night camera, PAL
D23N 23x day/night camera, NTSC
D23P 23x day/night camera, PAL
D26N 26x day/night camera, NTSC
D26P 26x day/night camera, PA
D36N 36x day/night camera, NTSC
D36P 36x day/night camera, PAL
GEA-113
Ceiling panel
• Weight: 3.2 oz. (91 g)
• Material: Steel
• Finish: White enamel
GEA-114
T-bar support kit
• Weight: 6.4 oz. (181 g)
• Material: Steel
• Finish: Galvanized
Parapet-capping brackets
• Material: 0.25 in. aluminum
• Finish: Gray powder coat
GEA-108: Corner, narrow
• 6 to 12 in. (152 to 305 mm)
• Weight: 7 lb. (3.18 kg)
GEA-109: Corner, wide
• 12 to 17 in. (305 to 432 mm)
• Weight: 8 lb. (3.63 kg)
GEA-110: Straight, narrow
• 6 to 12 in. (152 to 305 mm)
• Weight: 14 lb. (6.4 kg)
GEA-111: Straight, wide
• 12 to 17 in. (305 to 432 mm)
• Weight: 15 lb. (6.8 kg)
36x day/night with WDR
1/4 in. CCD
Optical 36x; Digital 12x
530 TVL NTSC, 530 TVL PAL
Internal/line lock
F=3.4mm (wide) to
122.4mm (tele); F1.6 to F4.5
57.8° (wide) to 1.7° (tele)
1.4 lux at 1/60 sec NTSC or
1/50 sec PAL; 0.1 lux at
1/4 sec NTSC or 1/3 sec PAL
0.01 lux at 1/4 sec NTSC or
1/3 sec PAL
1/4 to 1/10,000 sec, NTSC;
1/3 to 1/10,000 sec, PAL
1.0 V p-p
< GEA-113
GEA-114 >
< brackets
