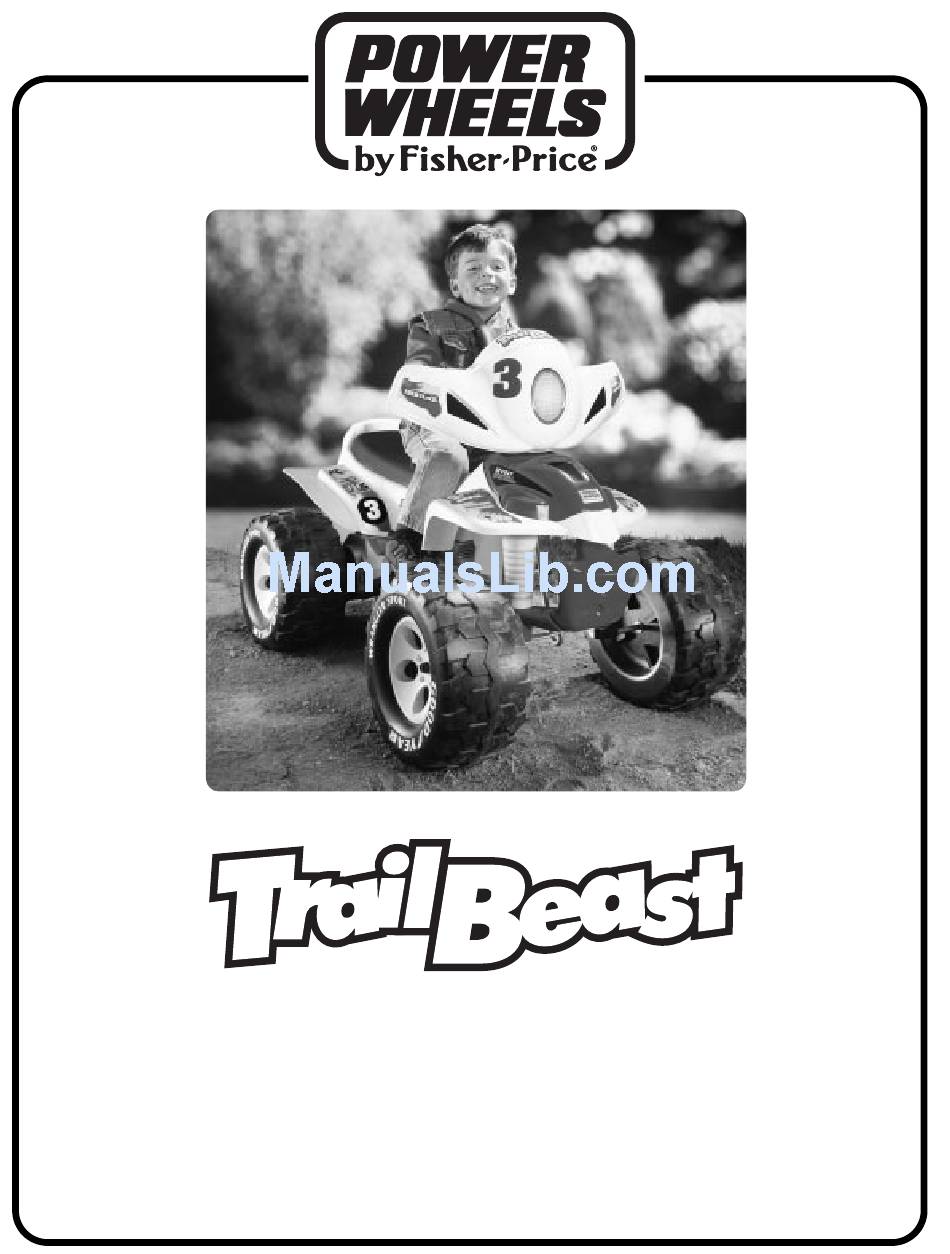

Product features may vary from the picture above.
™
Owner's Manual
with Assembly Instructions
Please read this manual and save it with your original sales receipt.
For Model 74527
Tools needed for assembly: Phillips Screwdriver, Hammer, and Pliers (not included);
Cap Nut Assembly Tool (included).
Use only with a Power Wheels
®
12 Volt Lead-acid Rechargeable Battery with Built-in Thermal Fuse
and Power Wheels
®
12 Volt Charger (both included).
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fisher-Price Power Wheels TrailBeast 74527
Summary of Contents for Fisher-Price Power Wheels TrailBeast 74527
- Page 1 Product features may vary from the picture above. ™ Owner’s Manual with Assembly Instructions Please read this manual and save it with your original sales receipt. For Model 74527 Tools needed for assembly: Phillips Screwdriver, Hammer, and Pliers (not included); Cap Nut Assembly Tool (included).
-
Page 2: Table Of Contents
Table of Contents Important Information ..............2 Warnings and Cautions . -
Page 3: Warnings And Cautions
Warnings and Cautions WARNING • Children can be harmed by small parts, sharp edges and sharp points in the vehicle’s unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle. -
Page 4: Parts
Parts • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. - Page 5 Parts Sound Box Front Fairing Handlebar Housing - Top Half 12-Volt Charger Handlebar Housing - 12 Volt Battery Bottom Half Round Bushing - 2 Radio Knob - 2 Lock Nut - 2 Key Assembly Handlebar Microphone Hex Bushing - 4 Cap Nut Not Shown: Label Sheet, Literature Bag Installation Tool...
-
Page 6: Parts Diagram
Parts Diagram Vehicle Body Radio Knob - 2 Round Bushing - 2 Cowling Right Hand Grip Lock Nut - 2 Seat Handlebar Housing - Top Half Rear Wheel Driver - 2 Wheel - 4 Handlebar Housing - #8 x " Screw - 17 Hubcap - 4 Bottom Half "... -
Page 7: Battery Charging
Battery Charging About Thermal Fuses WARNING Your Power Wheels 12 volt battery is equipped with a ® built-in thermal fuse. The thermal fuse is a self-resetting • The battery must be handled by adults safety device which automatically “trips” and shuts down operation of the vehicle if the vehicle is overloaded or the only. -
Page 8: Important Notes
Battery Charging Important Notes • Your new battery must be charged for at least 18 hours before you use it in your vehicle for the first time. • You do not need to remove the battery from your vehicle to recharge it. Battery •... -
Page 9: Assembly
Assembly Round Hole Rear Axle Right Right Fender Mudflap Bottom View Cap Nut • Position the vehicle body upside down. Note: The mudflaps are marked “R” and “L” to designate • Fit a cap nut onto one end of the rear axle. right and left. - Page 10 Assembly • Slide a wheel onto the rear axle. Make sure the ribs on the wheel fit into the grooves on the rear wheel driver. Rear Axle • Slide a hex bushing, barrel side first, onto the rear axle. Press all but the ring on the hex bushing into the wheel. •...
- Page 11 Assembly PRESS HERE To Snap Side Tabs Cowling Side Side Shifter Rear Tab Handle Channel • Press firmly on each side of the cowling to snap the four side tabs into the slots in the vehicle body. Make sure the rear tab stays aligned with the slots. •...
- Page 12 Assembly Steering Column Hole Hole Circular Upper Lower Indentation Steering Steering Linkage Linkage Handlebar Lock Nut Lock Nut Neck Hole • Position the handlebar so that the side with the three holes and circular indentation faces up. • Fit the neck against the bottom of the handlebar, with the holes in the handlebar and neck aligned.
- Page 13 Assembly Handlebar Handlebar Sound Housing - Top Half Neck Groove Handlebar Steering Housing - Column Bottom Half • Slide the bottom half of the handlebar housing onto the end of the steering column. Make sure the rim on the bottom of the handlebar housing fits into the hole in the vehicle body.
- Page 14 Assembly Key Assembly Front Fairing Screw Knobs Microphone Screw Screw Screw • Bend the plastic tip at the end of the microphone cord so Handlebar that it forms a "T". Assembly • Insert the plastic tip through the hole in the handlebar housing.
-
Page 15: Label Decoration
Label Decoration Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. •... - Page 16 Label Decoration Right Side Left Side...
-
Page 17: Battery Installation
Battery Installation Important Note: Use only a Power Wheels ® 12 volt battery with built-in thermal fuse. Use of any other battery will damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels ®... -
Page 18: Battery Care And Disposal
Battery Care Battery Care and Disposal and Disposal Care Disposal If a battery leak develops, avoid contact with the leaking • Your Power Wheels ® battery is a sealed lead-acid acid and place the damaged battery in a plastic bag. See battery. -
Page 19: Rules For Safe Driving
Rules for Safe Driving 4. Teach your child to avoid driving on steep inclines or WARNING slopes. Restrict your child’s driving to areas that are fairly level with gentle inclines or slopes of no more than 10°. • Adult supervision is required. Children •... -
Page 20: How To Operate Your Vehicle
How to Operate Your Vehicle As assembled, your vehicle is ready to roll in low • Press the foot pedal. The vehicle will back-up at a speed (2 mph, maximum). When your child is ready maximum of 2 mph. to drive the vehicle in high speed (5 mph, maximum), •... -
Page 21: M Statement Of Limited Warranty
How to Operate Your Vehicle How to Operate Your Vehicle • Help your child practice steering to learn how far and Advanced Use - High Speed Drive how quickly to turn the handlebar when driving forward in high speed. Disconnecting the High Speed Lock-Out •... -
Page 22: Problems And Solutions Guide
Problems and Solutions Guide IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels ® Consumer Affairs, toll- free at 1-800-348-0751 between 8 AM and 5 PM (EST) Monday through Friday. Or, contact your local Power Wheels authorized service center. -
Page 23: Problem Possible Cause
Problems and Solutions Guide Problem Possible Cause Solution Vehicle was running but Loose wire or loose connectors Check all wires and connectors. Make sure the motor suddenly stopped harness connector is plugged into the battery, and that there are no loose wires around the motors. Tripped thermal fuse Each Power Wheels ®... -
Page 24: Screw.
Problems and Solutions Guide Problem Possible Cause Solution Vehicle runs sluggishly Undercharged battery Charge the battery. A new battery should have been charged for at least 18 hours before using the vehicle for the first time. After first-time use, recharge the battery for at least 14 hours after each use. -
Page 25: Authorized Service Centers
Problems and Solutions Guide Problem Possible Cause Solution When the foot pedal is pressed, Loose wire or connector Check all wires around the motors and all connectors the vehicle won’t run without to make sure they are tight. a push “Dead Spot”... - Page 26 Authorized Service Centers SHELTON - Jeff’s Appliance, Inc., 500A Howe Avenue, 06484, (208) 343-0102 LAKE CHARLES - Capitol Schwinn Cyclery, 722 E. Prien Lake (203) 924-8997 Road, 70605, (318) 474-9090 ILLINOIS STAMFORD - Appliance Servicenter of Stamford, NEW ORLEANS (METAIRIE) - Le Jouet, Inc., 1700 Airline Hwy., CHAMPAIGN - Appliance Parts &...
- Page 27 Authorized Service Centers MISSISSIPPI 45 Northern Boulevard, 11021, (516) 466-0644 PENNSYLVANIA HATTIESBURG - Champion Cycle & Fitness, 104 South 37th HUDSON - Sweeps Vacuum & Repair Center, Inc., ALTOONA - Frye’s Sweeper & Sewing Center, Inc., Avenue, 39401, (601) 264-8233 705 Warren Street, 12534, (518) 828-5457 1400 Valley View Boulevard, 16602, (814) 943-5001, (800) 640-1308...
- Page 28 ® is a registered trademark of The Stanley Works. Fisher-Price, Power Wheels by Fisher-Price, Power Sounds Grip and Trail Beast are U.S. trademarks of Mattel, Inc. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. ©2000 Mattel, Inc. All Rights Reserved.
