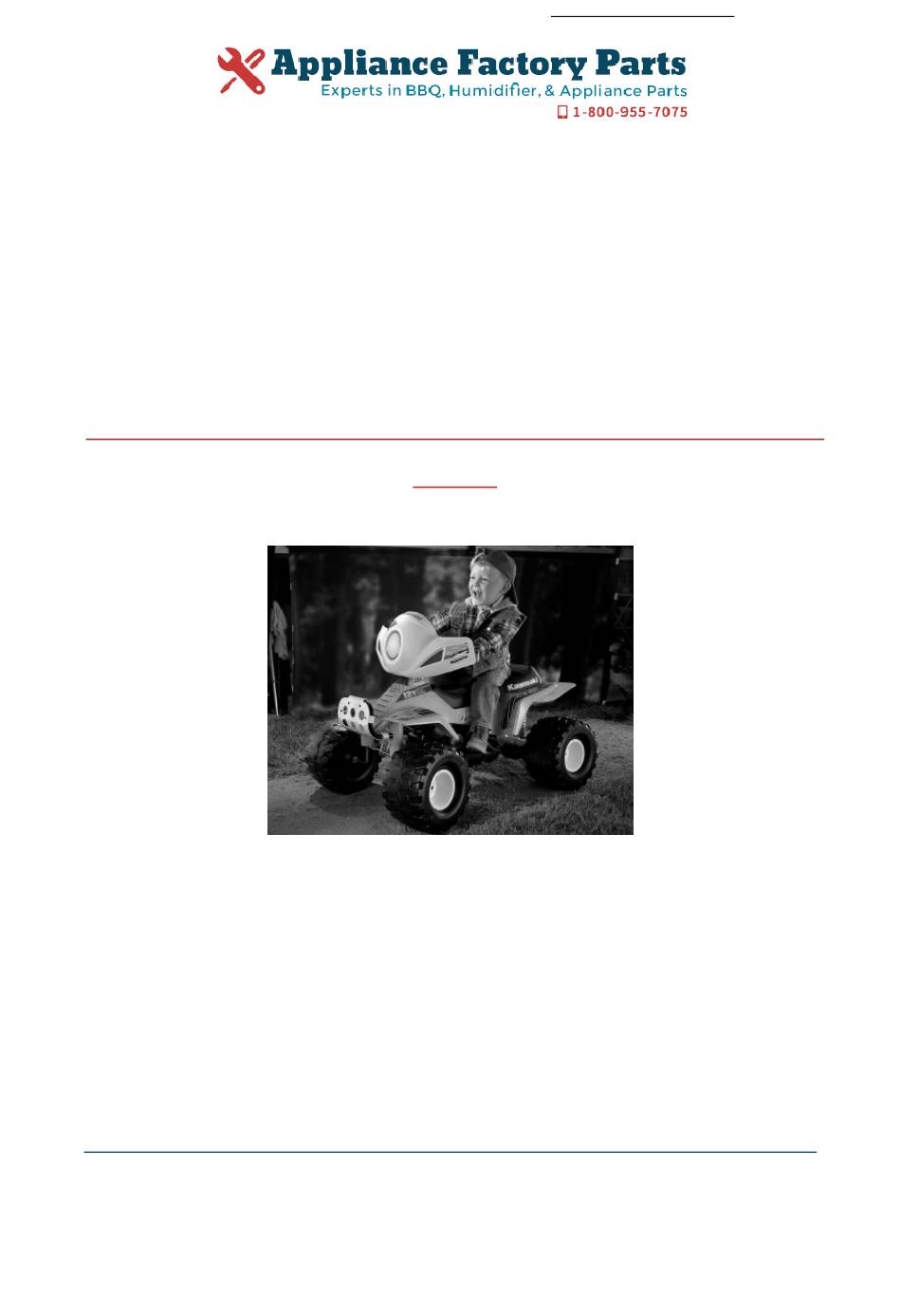

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. FISHER PRICE 74750 Owner's Manual Shop genuine replacement parts for FISHER PRICE 74750 Find Your FISHER PRICE Ride On Parts - Select From 999 Models -------- Manual continues below --------...
- Page 2 Product features may vary from the picture above. Kawasaki Ninja ® ® Owner’s Manual with Assembly Instructions Please read this manual and save it with your original sales receipt. For Model 74750 Tools needed for assembly: Phillips Screwdriver, Hammer, Pliers, and Safety Scissors. Use only with Power Wheels ®...
-
Page 3: Table Of Contents
Table of Contents Important Information ..............2 Warnings . -
Page 4: Warnings
Warnings WARNING • Children can be harmed by small parts, sharp edges and sharp points in the vehicle’s unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle. -
Page 5: Parts
Parts • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. - Page 6 Parts Cover Plate Right Hand Grip Left Hand Grip Handlebar Housing - Top Half Handlebar Housing - Front Fairing Bottom Half Handlebar Brushguard Steering Column Sound Box Battery Retainer Handlebar Neck...
- Page 7 Parts Key Assembly 12-Volt Charger Microphone Small Parts Bag 30 Amp Fuse - 3* Round Bushing - 2 Hex Bushing - 4 6 Volt Battery - 2 Wing Nut Lock Nut - 2 Radio Knob - 2 Not Shown: Label Sheet, Literature Bag #8 x "...
-
Page 8: Parts Diagram
Parts Diagram Microphone Vehicle Body Lock Nut - 2 Radio Knob - 2 Steering Column Wing Nut Right Hand Grip Driver - 2 30 Amp Fuse - 2 Handlebar Housing - Top Half Wheel - 4 #8 x " Screw (black) - 15 Hubcap - 4 Cover Plate #6 x... -
Page 9: Battery Charging
Battery Charging We recommend that you start charging your batteries before beginning assembly of your vehicle. Your new batteries must be charged for at least 18 hours before you use your vehicle for the first time. WARNING • The batteries must be handled by adults only. The batteries are heavy and contain sulfuric acid (electrolyte). - Page 10 Battery Charging • Your new batteries must be charged for at least 18 hours before you use them in your vehicle for the first time. Charger • We recommend that you start charging your batteries before beginning assembly of your new vehicle. •...
-
Page 11: Assembly
Assembly Do not omit any steps. Please set aside at least 45 minutes for assembly. Cover Plate Rear Wheel Vehicle Body Driver • Fit the cover plate over the opening in the front of the vehicle body. • Fit a rear wheel driver into a wheel. •... - Page 12 Assembly Rear Axle Cap Nut Hubcap • Fit a hubcap on the rear axle and slide it into the center • Fit a cap nut on the end of the rear axle. of the rear wheel. • Tap the cap nut with a hammer to secure it on the end of the rear axle.
- Page 13 Assembly Front Axle Front Wheel Hex Bushing Ring Side Small Round Hole Front Axle Round Bushing " (Large) Washer • Slide a hex bushing onto the front axle. The ring side of • Slide a wheel, small round hole first, onto the front axle. the hex bushing should face out.
- Page 14 Assembly Upper Steering Linkage Hole Hole Circular Indentation Handlebar Lock Nut Steering Lock Nut Hole in Column Neck Vehicle Lower Body Steering • Position the handlebar so that the side with the three Linkage Bottom View holes and circular indentation faces up. •...
- Page 15 Assembly Handlebar Handlebar Sound Housing - Top Half Neck Groove Handlebar Steering Housing - Column Bottom Half • Fit the top half of the handlebar housing onto the bottom Helpful Hint: You may want the help of another adult to half of the handlebar housing.
- Page 16 Assembly Top Tab Sport Bar Key Assembly Knobs Microphone Side Brushguard • Bend the plastic tip at the end of the microphone cord so • Wrap the tab at the top of the brushguard around the top that it forms a "T". of the sport bar.
- Page 17 Assembly Rear Axle Cover - Shock Half - Short Half Small Shock Half - Large Rear Support Rear Axle Cover - Rear View Long Half • Fit the large half of one shock set against one of the Rear View rear supports.
-
Page 18: Label Decoration
Label Decoration Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. •... - Page 19 Label Decoration ® ® 20 - 25 Right Side ® Left Side One time assembly is now complete. Four extra cap nuts are included with your vehicle. If you have any extra large washers, hex bushings or round bushings, you have probably incorrectly assembled one or more of the wheels. Please review assembly steps 4 - 12.
-
Page 20: Battery Installation
Battery Installation Important Note: Use only Power Wheels ® Type H batter- Battery ies with Power Wheels ® 30 amp fuses installed. Use of any Retainer other batteries or fuses will damage your vehicle. Make sure that you charge the batteries for at least 18 hours using the enclosed Power Wheels ®... -
Page 21: Battery Care And Disposal
Battery Care and Disposal Care Disposal If a battery leak develops, avoid contact with the leaking • Your Power Wheels ® batteries are sealed lead-acid bat- acid and place the damaged battery in a plastic bag. See teries. They must be recycled or disposed of in an envi- information below for proper disposal. -
Page 22: Rules For Safe Driving
Rules for Safe Driving 4. Teach your child to avoid driving on steep inclines or WARNING slopes. Restrict your child’s driving to areas that are fairly level with gentle inclines or slopes of no more than 10°. • Adult supervision is required. Children •... -
Page 23: How To Operate Your Vehicle
How to Operate Your Vehicle Beginner Use - Low Speed Drive To Stop FORWARD/ REVERSE LOW/HIGH Switch Switch • Your vehicle has a patented, electronic braking system As assembled, your vehicle is ready to roll in low speed that automatically stops the vehicle when your child’s foot mph, maximum). -
Page 24: Caring For Your Vehicle
How to Operate Your Vehicle How to Operate Your Vehicle • Stopping in high speed is the same as stopping in low Advanced Use - High Speed Drive speed. When your child’s foot is lifted from the pedal, the vehicle automatically stops. Connecting the High Speed Hook-Up •... -
Page 25: Problems And Solutions Guide
Problems and Solutions Guide IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels ® Consumer Affairs, toll-free at 1-800-348-0751 between 8 AM and 6 PM (EST) Monday through Friday. Or, contact your local Power Wheels authorized service center. - Page 26 Problems and Solutions Guide Problem Possible Cause Solution Vehicle was running but Loose wire or loose connectors Check all wires and connectors. Make sure the battery suddenly stopped connector is tightly plugged into the motor harness connector, and that there are no loose wires around the motors.
- Page 27 Problems and Solutions Guide Problem Possible Cause Solution Vehicle runs sluggishly Undercharged batteries Charge the batteries. New batteries should have been charged for at least 18 hours before using the vehicle for the first time. After first-time use, recharge the batteries for at least 14 hours after each use.
- Page 28 Problems and Solutions Guide Problem Possible Cause Solution Vehicle constantly blows fuses Wrong type of fuse used Your vehicle requires two Power Wheels ® 30 amp fuses, one in each battery. Make sure the Power Wheels ® 30 amp fuses are properly installed in the batteries. For best performance, do not use substitute parts.
-
Page 29: Statement Of Limited Warranty
Statement of Limited Warranty 90-day limited warranty for the Power under this warranty or implied by law or any indirect or consequential damages for breach of warranty. Wheels ® Ride-On Toy Vehicle Some states do not allow the exclusion or limitation so A 6-month battery warranty applying only to this limitation may not apply to you. - Page 30 Authorized Service Centers YUCAIPA - Aire-Rite Heating & A/C, 34724 Yucaipa Blvd., SUNRISE - Muller Appliance Service, 2620 N. University SOUTH BEND (OSCEOLA) - AAA Appliance Service Co., 92399, (909) 797-2788 Drive, 33322, (954) 749-5460 11868 Lincoln Way West, 46561, (219) 679-4981 TAMPA - Authorized Appliance Service Co., Dibbs Plaza, TERRE HAUTE - Corey Electronics,1101 S.
- Page 31 Authorized Service Centers MASSACHUSETTS SPRINGFIELD - Mar-Beck Appliance Service Co., ROCHESTER - Benfante Appliance Service, 1286 2704 S. Glenstone Avenue, 65804, (417) 882-3070 Mt. Hope Avenue, 14620, (716) 473-8765 BOSTON (MEDFIELD) - Wills Hardware, 5 Janes Avenue, ST. LOUIS - Authorized Appliance, Inc., 2355 Hampton SEA CLIFF, L.I.
- Page 32 Authorized Service Centers OREGON TENNESSEE VIRGINIA PORTLAND - Appliance Repair Central, 3203 N. E. Sandy CHATTANOOGA - Light Electric, 732 East 11th Street, FREDERICKSBURG - Logan Electric Service, Inc., 98 Blvd., 97232, (503) 234-7339, (800) 588-7339 37403, (615) 267-9224 Industrial Drive, 22408, (540) 898-8873 KNOXVILLE - Appliance &...
- Page 33 Kawasaki, Ninja and associated trademarks are owned by and used under license from Kawasaki Motors Corp., U.S.A. ©1998 Kawasaki Motors Corp., U.S.A. All Rights Reserved. ©1997 Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 - All Rights Reserved Printed in the U.S.A.
