Tannoy CMS601 DC Technical Specifications

CMS601 DC

Product Description

The Tannoy CMS601 DC is a full bandwidth; high power and high sensitivity ceiling monitor
system. The 165mm (6.50") Tannoy Dual Concentric™ is a point source, constant directivity
drive unit design comprising a multi fibre paper pulp mid bass cone and a 25mm (1")
ferrofluid cooled, titanium dome HF unit with neodymium magnet system. The driver and
passive frequency dividing network is mounted in a vented, injection moulded, paintable
front baffle manufactured from UV/weather resistant UL94V-0 ABS material.
The mid-bass and tweeter sections of the Tannoy Dual Concentric™ constant directivity
driver are coincidentally aligned to a true point source; ensuring a wide and controlled
dispersion for optimum coverage; this while avoiding the massive loss of energy, in the
vertical plane at the crossover frequency, inherent in two-way discreet designs. This high
power and high sensitivity design, with extended frequency response and very low distortion,
is equipped with dynamic high frequency protection.
This compact unit is specifically designed for applications requiring the combination of
premium sonic quality for music and speech reinforcement and exceptional reliability and
intelligibility.
The CMS601 DC is equipped with a low insertion loss 60W line transformer easily configurable
to the following settings via front baffle mounted rotary tapping switch:
70V systems: 60W / 30W / 15W / 7.5W / OFF & low Impedance operation
100V systems: 60W / 30W / 15W / OFF & low Impedance operation
Two CMS601 DC model versions and a separate back can are available to satisfy the vast
majority of installation application requirements:
CMS601 DC BM (Blind Mount) - supplied with an integral back can.
CMS601 DC PI (Pre-Install) - supplied without a back can.
CMS601 PI Back Can (Pre-wire back can) - use with the CMS601 DC PI.
The zinc plated steel back cans have an integrated, recessed termination box. The removable
locking connector has screw terminals for secure wire termination and "loop through" facility.
Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit.
Spring loaded self-aligning clamps make for quick and easy installation, while all models
are also supplied with two tile support rails and one C-ring included in the package. A
plaster (mud) ring is available as an optional accessory.

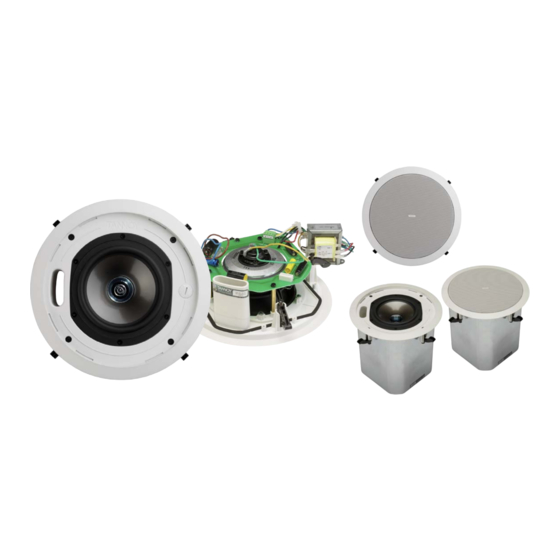

CMS601 DC PI
CMS601 DC BM
Features
165mm (6.50") point source Dual Concentric™ driver
•
• High power & high sensitivity with extended frequency
response and very low distortion
• Wide, controlled constant directivity dispertion for optimum
coverage.
• Does not suffer from massive loss of energy in the vertical
plane at crossover caused by two way discreet designs
• UV/weather resistant UL94V-0 ABS front baffle
Blind Mount & Pre Install options
•
• Dynamic high frequency protection
• Easily accessible tapping switch on front baffle.
• Low insertion loss 60w line transformer
• Ferrofluid cooled neodymium HF
• Packaged with tile rails and C-ring for quick & easy installation
and simple stocking logistics
Five year warranty
•
Applications
• Multi-zone foreground music & paging systems
Boardrooms & offices
•
• Business music systems
Airports, convention centres, hotels
•
• Reception/ waiting rooms
Houses of worship
•
• Retail outlets/ shopping malls
Lounges/ bars
•
• Cruise ships
• Courtrooms
CMS601 DC
GRILLE FITTED
