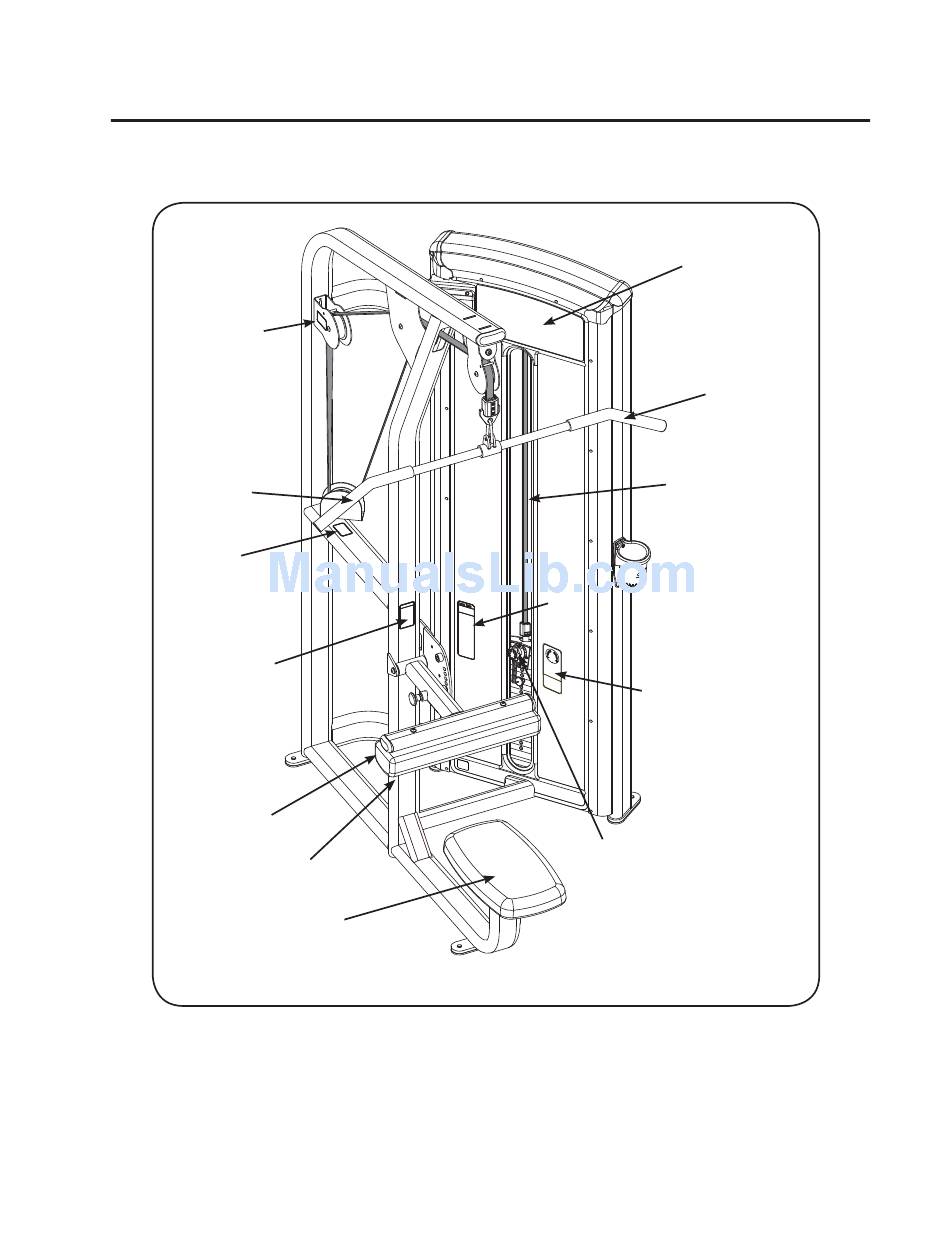

Exploded-View Diagram - CYBEX VR3 Lat Pull Owner's And Service Manual

Cybex VR3 12130 Lat Pull Owner's Manual
A
H
A
B
F
G
E
NOTE: See exploded-view diagram for location of I (serial number decal)
DESCRIPTION
A. Caution Decal ................... 4000Y316-X
B. Warning Decal ................... 8500-311-X
C. Warning Decal .................... 4605-381-X
D. Placard Decal ..................... 12130-598-X
E. Seat Pad............................. 4800-188
F. Thigh Pad w/Wear Cover.... 4800-006
LAT PULLDOWN
PRODUCT NO. 12130
PART NO. DESCRIPTION
G. Wear Cover (Item F).............4800-093
H. Grip
I. Serial Number Decal
J. Belt ..................................... GB000202
K. Weight Selector Pin ........... BH030207
L. Cybex Decal ...................... 3900-442
M. Increment Weight Decal.... 11000-407
D
H
J
C
M
K
................................ PR400201
PART NO.
Service
Page 6-3
