ASSEMBLY

Assembly requires two persons. Place all parts of the PROFORM
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires a phillips screwdriver
rubber mallet

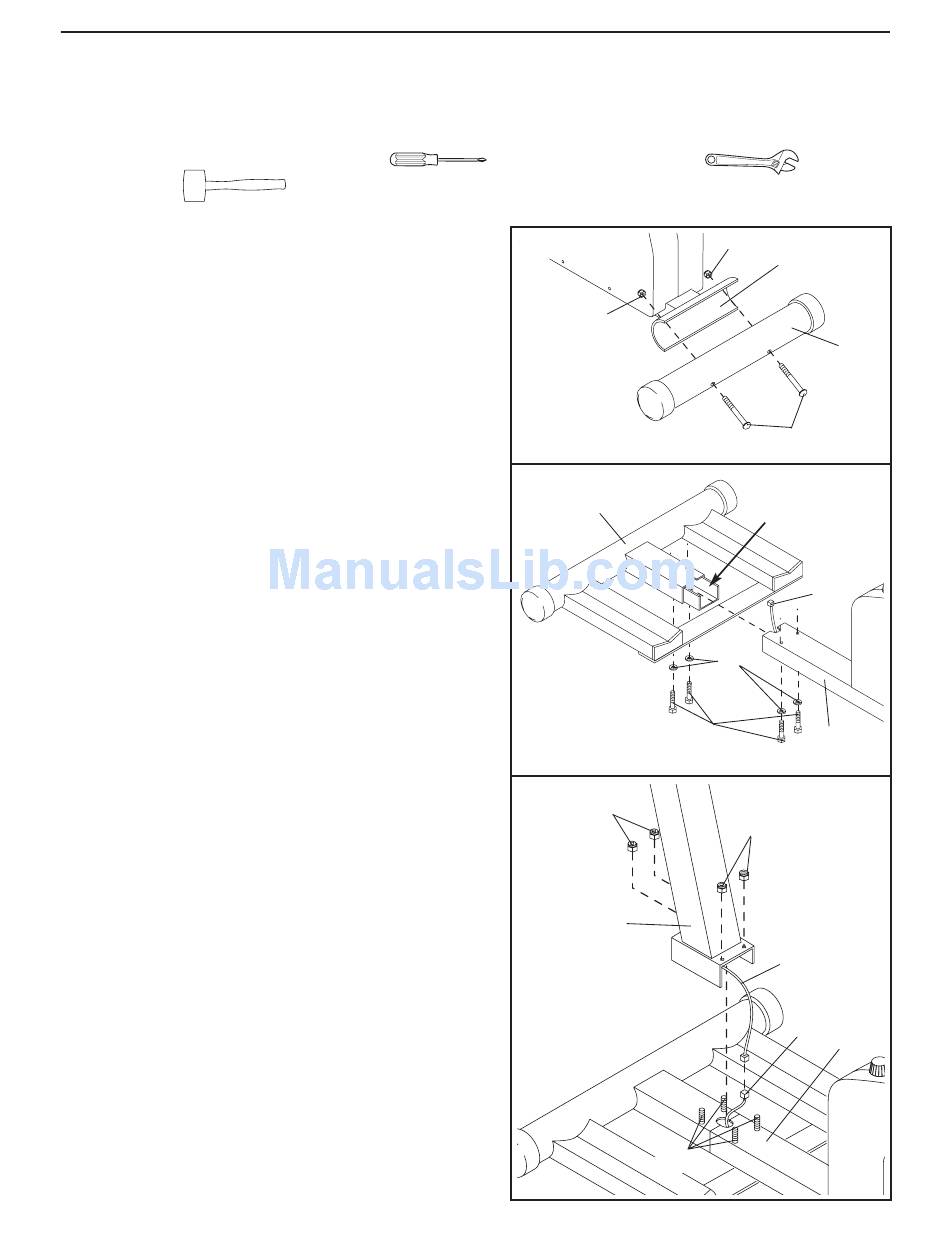

1. Hold the Stabilizer (68) against the saddle on the rear
of the Base (1). Attach the Stabilizer with two M10 x
75mm Bolts (66) and two M10 Nylon Locknuts (54).
2. Slide the "U"-channel on the Rail Stabilizer (37) into
the Base (1). Make sure that the Reed Switch Wire
(48) is extending from the hole formed where the
two parts meet; be careful not to damage the Reed
Switch Wire.
Insert two M10 x 68mm Bolts (67) with two M10
Washers (71) up through the Base (1) and the Rail
Stabilizer (37). Note: It may be easier to insert the
Bolts if the unit is tipped on its side.
Insert two M10 x 68mm Bolts (67) with two M10
Washers (71) up through the Rail Stabilizer (37).
3. While one person holds the Upright (2), connect the
Extension Wire (49) to the Reed Switch Wire (48)
extending from the Base (1). Insert any excess wire
into the Upright or the Base.
Slide the Upright (2) onto the four M10 x 68mm Bolts
(67). Make sure that the wires do not get pinched
as you slide the Upright into place.
Hand tighten an M10 Nylon Locknut (54) onto each
M10 x 68mm Bolt (67). Tip the unit on its side and use
two wrenches to tighten the Nylon Locknuts fully.
(none of these is included).
