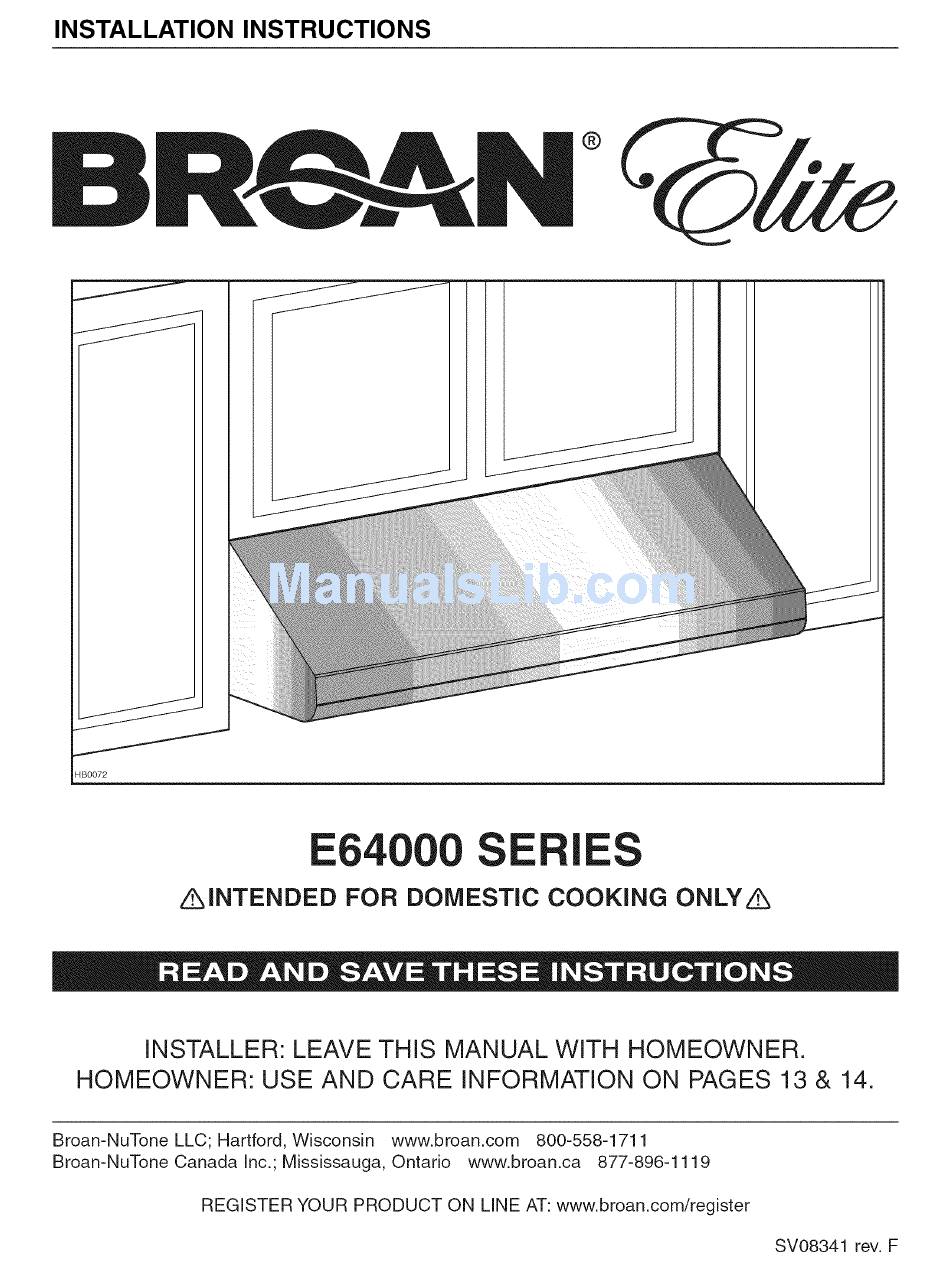

INSTALLATION
INSTRUCTIONS
®
r
I
J
J
HB0072
E64000 SERIES
_INTENDED
FOR DOMESTIC
COOKING
ONLYZ_,
INSTALLER:
LEAVE THIS MANUAL WITH HOMEOWNER.
HOMEOWNER:
USE AND CARE INFORMATION
ON PAGES 13 & 14.
Broan-NuTone LLC; Hartford, Wisconsin
www.broan.com
800-558-1711
Broan-NuTone Canada Inc.; Mississauga, Ontario
www.broan.ca
877-896-1119
REGISTER YOUR PRODUCT ON LINE AT: www.broan.com/register
SV08341 rev. F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 331H and is the answer not in the manual?

Questions and answers

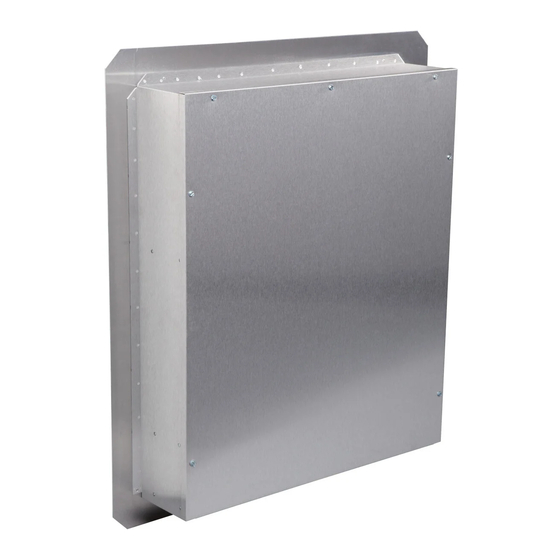

Summary of Contents for Broan 331H

  • Page 1 ONLYZ_, INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER. HOMEOWNER: USE AND CARE INFORMATION ON PAGES 13 & 14. Broan-NuTone LLC; Hartford, Wisconsin www.broan.com 800-558-1711 Broan-NuTone Canada Inc.; Mississauga, Ontario www.broan.ca 877-896-1119 REGISTER YOUR PRODUCT ON LINE AT: www.broan.com/register SV08341 rev. F...
  • Page 2 Broan Elite E64E Series hood must be installed Use proper pan size. Always use cookware appropriate with one Broan exterior blower model 331 H, 332H, for the size of the surface element. 335 or 336; or one Broan in-line blower models HLB3, HLB6, HLB9, HLB11.
  • Page 3 E64000 SERIES RANGE HOOD SYSTEM INTERNAL BLOWERS (10" ROUND MODEL441 WALL CAP) MODEL 64"; ÷, MODEL437 "',, .÷/" (7" ROUND MODEL "'-. MODEL _.8. ÷ (HIGH CAPACITY ROOF CAP)',,. ./'" WALL CAP) OR644 (8" ROUND ÷÷÷" (Roof CAP) WALL CAP) Xxx% MODEL41 5 .""...
  • Page 4 (HIGH CAPACITY ROOF /.%J_ OR HLB11 (1100 CFM) MODEL (1200 CFM) <-_ "'-. IN-LINE BLOWER "---._///__--_ ..0 N DLUDES 8"xl 2"TO MODEL 331H (600 CFM) OR 336 (1500 CFM) EXTERIOR BLOWER OR 332H (900 CEM) ', - Ir_._ ..
  • Page 5: Ducted Installation

    (included with the hood), or hood using external blowers. For hood using external blowers, the Broan Elite E64000 Series must be installed with in-line blower models HLB3, HLB6, HLB9 or HLB11, or exterior blower model 331 H, 332H, 335 or 336 only.
  • Page 6: Preparethe Installation

    - In-line blower assembly HLB3, HLB6, HLB9 or HLB11 (all include transition) - Exterior blower assembly 331H, 332H, 335 or 336 - Shielded halogen lights (120 V, 50 W, GU-IO) (2 required for 30" and 36" hood widths, 3 required for 42" and 48" hood widths)
  • Page 7: Installbacksplash (Optional)

    2. PREPARETHE INSTALLATION (CONT'D) DUCTED INSTALLATIONS ONLY Cut-out the openings for duct (A) and power cable (B), in cabinet or wall, according to the direction of discharge chosen. See figures below. NOTE: For all internal blower hoods, the cut-out opening for house wiring can be made in cabinet bottom OR wall, no matter the discharge chosen (vertical or horizontal).
  • Page 8 4. REMOVEFILTERSAND GREASEDRIP RAIL A. Remove tape on filters. Remove filters from hood and set aside. NOTE: It is recommended to start with the center one(s). B. Remove tape on grease drip rail (1). Lift out grease drip rail and set aside.
  • Page 9: Horizontal Discharge

    6. CHOOSE THE OPENING(S) (INTERNAL BLOWER HOODS ONLY) Remove the knockout for the chosen opening(s) (horizontal at the back of the hood or vertical on top). See illustrations below. VERTICAL DISCHARGE HORIZONTAL DISCHARGE NOTE: For ducted installation only. HR0021 Punch out the appropriate electrical knockout hole on top (A) or back (B) of the hood.
  • Page 10 7. HORIZONTAL DISCHARGE INSTALLATION (INTERNAL BLOWER(S) O NLY) Slide the blower to disengage its flange from the retaining bracket. HD0270 Flip the blower and engage flange in the back wall retaining bracket. Using 5/16" socket screws previously removed, secure the blower to the hood. Plug the blower in.
  • Page 11: Install The Hood

    10. INSTALLTHE HOOD (ALL BLOWERS) INTERNAL BLOWER: Run power cable to installation location. Place the hood in its location. Mark the position of the screws (smaller part of the key holes [A]) with a pen. Remove the hood and install the (4) 1/2" double thread screws at marked positions, leaving a 1/8"...
  • Page 12 13. INSTALLLIGHTBULBS This hood must use 120 V, 50 W, MR16 with GU10 base or PAR16 with GU10 base, shielded halogen lamps (not included). (2 required for 30" and 36" hood widths, 3 required for 42" and 48" hood widths). }ersonal injury, only install shielded halogen lamps.
  • Page 13: Operation

    15. USEAND CARE Baffle Filters The baffle filters should be cleaned frequently. Use a warm detergent solution. Wash more often if your cooking style generates greater grease--like frying foods or wok cooking. Remove baffle filters by pushing them towards the back of hood and rotating filters downward. Baffle filters are dishwasher safe. Allow filters to dry completely before reinstalling them in the hood.
  • Page 14: Warranty

    MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service. THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT...
  • Page 15: Wiring Diagrams

    18. WIRING DIAGRAMS Broan Elite E64000 Series NEON internal blower hoods --BLK SWITCH CONTROL SPEED USE ONLY WITH APPROPRIATE MAKE-UP AIR SYSTEM _ORA- THERMOSTAT !BLK"-_ EuL4NE .-o,_BLK .WHT £(3 GROUND _ WHT i_ LAMP SWITCH .WHT- COLOR CODE r II...
  • Page 16: Service Parts

    19. SERVICEPARTS Broan Elite E64000 Series Broan Elite E64000 Series internal blower hoods Exterior or In-Line blower hoods 8--i 11-- 12--' PART DESCRiPTiON QTY.(Hood KEY PART NO. DESCRIPTION QTY. (Hood WIDTH) WIDTH) 30" 36" 42" 48" 30" 36" 42" 48"...
  • Page 17: Guide D'installation

    • LAISSER CE MANUEL AU PROPRIg:TAIRE. PROPRIg:TAIRE • DIRECTIVES D'UTILISATION ET D'ENTRETIEN EN PAGES 29 et 30. Broan-NuTone LLC; Hartford, Wisconsin www.broan.com 800 558-1711 Broan-NuTone Canada Inc.; Mississauga, Ontario www.broan.ca 877 896-1119 ENREGISTREZ VOTRE PRODUIT EN LIGNE ,&."www.broan.com/register SV08341 rev. F...
  • Page 18 Broan Nettoyez r6guli_rement la (les) roue(s) du ventilateur. suivant : 331H, 332H, 335 ou 336 ou un ventilateur Ne laissez pas la graisse s'accumuler sur le en ligne Broan suivant : HLB3, HLB6, HLB9 ou ventilateur, les filtres ou les conduits d'6vacuation.
  • Page 19 SI RIE E64000 - - SYSTI ME DE HOTTE DE CUISINII RE VENTILATEURS INTERIEURS /CAPUCRON DE MUR MODELE64, PC ROND) ..." "-. ÷ ÷÷--° MODELE MODELE ""-..o÷-" MODELE ou 644 • "", ÷"÷*°'" [LJAPUCHONDE 7 poDERoND)MUR (CAPUCHON DE MUR (CAPUCHON DE 8 PC ROND) •...
  • Page 20 PCM) ""-.. (INCLUANT DEUX TRANSITIONS RONDES 12 PO A 10 PO) 335 (1200 "'"-.. DE 8 POX VENTILATEUR EXTI_RIEUR MODELE PCM) MODELE 331H (600 336 (1500 PCM) PCM) .."'"'-..OU 332H (900 PCM) "\ : MODELE ..,'(CAPUONONMURAL I !!
  • Page 21 (inclus avec la hotte), ou des hottes utilisant des ventilateurs externes. Pour cette derni6re cat6gorie, la hotte de mod61e Broan Elite de s6rie E64000 doit 6tre install6e uniquement avec I'un des ventilateurs en ligne de mod61e HLB3, HLB6, HLBg, HLB11, ou un ventilateur ext6rieur de mod61e 331 H, 332H, 335 ou 336 (vendus s6par6ment).
  • Page 22 - Ensemble de ventilateur en ligne HLB3, HLB6, HLB9 ou HLB11 (tous incluant la transition) - Ensemble de ventilateur ext6rieur, module 331H, 332H, 335 ou 336 - Ampoules halog_nes avec 6cran GU10, 50 W (2 requises pour les hottes de 30 poet de 36 po de largeur, 3 requises pour...
  • Page 23 2. PRI_PARER L'INSTALLATION (SUITE) _NSTALLATIONS AVEC CONDUITS SEULEMENT D6couper les ouvertures pour le conduit (A) et le fil d'alimentation 61ectrique (B), dans I'armoire ou lemur, selon le type d'6vacuation choisi. Voir ci-dessous. NOTE : Pour toutes les hottes & ventilateur int6rieur, I'ouverture pour le fil d'alimentation 61ectrique peut 6tre pratiqu6e dans la base de I'armoire OU dans lemur, peu importe le type d'6vacuation choisi (verticale ou horizontale).
  • Page 24 4. RETIRERLES FILTRESET LA GOUTTII_RE A. Enlever le ruban adh6sif des filtres. Retirer les filtres de la hotte et les mettre de c6t6. NOTE : II recommand6 commencer par celui (ceux) du centre. B. Enlever le ruban adh6sif de la goutti_re (1). Retirer la goutti_re et la mettre...
  • Page 25 CHOISIR L'OUVERTURE (HOTTEA VENTILATEUR(S)INTI_RIEUR(S) S EULEMENT) Enlever I'ouverture pr6amorc6e (ou les ouvertures pr6amorc6es) selon le type d'6vacuation choisie (horizontale & I'arri@e de la hotte ou verticale sur le dessus). Voir les illustrations ci-contre. /,__ _:VACUATIONHORIZONTALE NOTE'Seulement pour installation avec conduits. HR0021 D6foncer I'ouverture...
  • Page 26 INSTALLATION A I_VACUATION HORIZONTALE (HOTTE A VENTILATEUR(S)INTI_RIEUR(S) S EULEMENT)(SUITE) Faire glisser le ventilateur pour d6sengager sa bride de son support de fixation. HD0270 Retourner le ventilateur et engager sa bride dans le support de fixation du panneau arri_re interne. ,A I'aide d'une douille 5/16 po et des vis retir6es pr6c6demment, assembler le ventilateur &...
  • Page 27: Installerla Hotte

    10. INSTALLERLA HOTTE(TOUS LES VENTILATEURS) VENTILATEUR INTC:RIEUR: Passer I'alimentation 61ectriquejusqu'& I'endroit de I'installation de la hotte. Placer la hotte & son emplacement. Marquer la position des vis (petite pattie du trou en forme de poke [A]) & I'aide d'un crayon. Refirer la hotte et installer 4 vis 1/2 po & double filets aux endroits marqu6s en laissant un espace de 1/8 po.
  • Page 28 13. INSTALLERLESAMPOULES 1'6clairage de cette est produit par des ampoules halog_nes avec 6cran de 50 W, 120 V avec culot GU10 (non incluses). (2 requises pour une hotte de 30 po ou de 36 de largeur, ou 3 pour une hotte de 42 po ou de 48 po de largeur). amals installer une ampoule a faisceau froid, dichro'fque,...
  • Page 29: Entretien

    15. ENTRETIEN Filtres b chicane Les filtres & chicane doivent 6tre nettoy6s fr6quemment. Utiliser une solution d'eau chaude et de d6tergent. Nettoyer les filtres & chicane plus souvent si vos habitudes de cuisson g6n_rent plus de graisse, comme par exemple la friture ou les aliments saut6s au wok. Retirer les filtres en les poussant vers I'arri_re de la hotte et en les retournant vers le bas.
  • Page 30: Garantie

    €:tat ou d'une 3rovince fit I'autre. Cette garantie annule toutes les autres garantJes prec6dentes. Pour le service sous garantie, vous devez (a) aviser Broan-NuTone fi I'adresse ou numero de tel@hone mentionne plus bas, (b) donner...
  • Page 31 18. SCHI MASI LECTRIQUES Broan Elite S_rie E64000 NEON Hottes b ventilateur(s) int_rieur(s) INTERRUPTEUR DU VENTILATEUR DE VITESSE I CONTROLE A N'UTILISER SEULEMENT QU'AVEC UN DISPOSITIF D'APPORT D'AIR APPROPRIE ,-------- THERMOSTAT IGNE_ "EWE E LA TERRE INTERRUPTEUR D'ECLAIRAGE CODE DE COULEUR...
  • Page 32: Pii Ces De Rechange

    19. PII CES DE RECHANGE Broan Elite S_rie E64000 Broan Elite S_rie E64000 Hotte _ ventilateur ext_rieur ou en ligne 8--i 11-- 12-- N ° DESCRiPTiON iQq_ (LARGEUR DEHOT'rE Q_ (L_GEUR _ P,or_ N ° R_. PIECE N ° 36Po42._48_ Re= P_ECE N °...
  • Page 33 AL PROPIETARIO DE LA CASA. PROPIETARIO: INFORMACION SOBRE UTILIZACION Y CUIDADO EN LAS P_,GINAS 45 Y 46. Broan-NuTone LLC; Hartford, Wisconsin www.broan.com 800-558-1711 Broan-NuTone Canada Inc.; Mississauga, Ontario www.broan.ca 877-896-1119 REGISTRE SU PRODUCTO EN LiNEA EN: www.broan.com/register SV08341 rev. F...
  • Page 34 No deje que la grasa se acumule en el ventilador, ni en los Broan modelo 331H, 332H, 335 o 336, o con un filtros o en los conductos de evacuaci6n. ventilador en linea de Broan modelo HLB3, HLB6, HLB9 o HLB11.
  • Page 35 SERIE E64000 - - CAMPANAS DE COCINA DE LA VENTILADORES INTERIORES DE 10") _ MODELO64: "-. ÷ ÷÷°_° MODELO MODELO441 "''"-._-o÷'*" MODELO 7") o 644 • "'", ..'" (CAPUCHON MURAL CA (CPA ,°'* REDONDO (CAPUCHON MURAL • MODELO _._____J CODO AJUSTABLE MODELO418 REDONDO...
  • Page 36 SERIE E64000 - - CAMPANAS DE COCINA DE LA VENTILADORES EN LiNEA Y EXTERIORES MODELO437 CAPAClDAD PARA TEJADO) VENTILADOR EXTERIOR MODELO 335 (1200 PCM) O 336 (1500 PCM) (CAPUCHON DE ALTA MODELO (CAPUCHON MURAL REDONDO DE 8") 10") REDONDO 10".) LiNEA VENTILADOR EN LiNEA...
  • Page 37 E64000 debe instalarse _nicamente con los ventiladores en linea modelos HLB3, HLB6, HLB9 o HLB11, o con los modelos exteriores 331H, 332H, 335 o 336. No utilice otros ventiladores. Los ventiladores se venden aparte. Prevea el lugar y la forma en que instalar_ las tuberfas.
  • Page 38 2. PREPARACION DE LA INSTALACION AI instalar, reparar o limpiar el aparato se aconseja el uso de lentes y guantes de seguridad. NOTA: Antes de comenzar la instalaci6n, verificar el contenido de la caja. Si alguna pieza falta o est& daSada, p6ngase en contacto con el fabricante.
  • Page 39 2. PREPARACION DE LA INSTALACION (CONTINUACION) SOLO PARA INSTALACIONES CON TUBOS Corte los orificios para el tubo (A) y el cable de alimentaciOn (B) en el armario o en la pared, de conformidad con la direcciOn de la evacuaciOn elegida. V6anse abajo las ilustraciones. NOTA: Para todas las campanas con ventiladores interiores, el orificio para hacer pasar el cableado de la casa puede hacerse en la base del armario O en la pared, independientemente del tipo de evacuaci6n que elija (horizontal o vertical).
  • Page 40 4. DESMONTAJE DE LOS FILTROSY DEL RIELDE VERTIDODE LA GRASA A. Retire la cinta de los filtros. Retire los filtros de la campana y p6ngalos a un lado. NOTA: Se aconseja empezar por los del medio. B. Retire la cinta del riel de vertido de la grasa (1).
  • Page 41 6. ELECCION DE LOS ORIFICIOS (VENTILADORES INTERIORES 0NICAMENTE) Retire las piezas que cubren los orificios elegidos (en la parte posterior de la campana para el orificio horizontal, o en la parte superior para el orificio vertical). V6anse las ilustraciones de abajo. EVACUACIONVERTICAL EVACUACI6N HORIZONTAL NOTA: S61o para las...
  • Page 42 7. INSTALACION DE LA EVACUACION HORIZONTAL (VENTILADORES I NTERIORES 0NICAMENTE)(CONTINUAClON) Deslice el ventilador para desprender su reborde del soporte de retenci6n. HD0270 Voltee el ventilador e introduzca su reborde en el soporte de retenci6n de la pared posterior. Utilice una Ilave tubular de 5/16" y los tornillos retir6 anteriormente...
  • Page 43 10. INSTALACION DE LACAMPANA (TODOS LOS VENTILADORES) VENTILADORES INTERIORES: Lleve el cable de alimentaci6n hasta el lugar de la instalaci6n. Coloque la campana en su lugar. Marque con un IApiz el lugar de los tornillos (parte mAs peque_a de los agujeros [A]). Retire la campana e instale los 4 tornillos de doble rosca de 1/2"...
  • Page 44 13. INSTALACIONDE LAS BOMBILLAS Esta campana debe utilizar bombillas hal6genas protegidas de 120 V, 50 W, de tipo GU10 o PAR16 (no incluidas) (2 para las campanas de 30" y 36" de anchura, 3 para las de 42" y 48" de anchura). tara uso en dispositivos encerrados.
  • Page 45 15. UTILIZAClONY CUIDADO Filtros Los filtros deben limpiarse con frecuencia. Utilice una disoluci6n de detergente con agua templada. Lavelos con mayor frecuencia si su tipo de cocina genera m&s grasa (alimentos fritos o cocina con wok). Retire los filtros empujAndolos hacia la parte trasera de la campana y girandolos hacia abajo. Las placas de los filtros pueden lavarse en el lavavajillas.
  • Page 46 Para tenet derecho al servicio de garantia, debe usted: a) Informar a Broan-NuTone, a una de las direcciones o telefonos que aparecen abajo; b) Dar el nQmero de modelo y el nQmero de identificaci6n de la pieza y (c) Describir el tipo de defecto en el producto o pieza. En...
  • Page 47 18. DIAGRAMASELI CTRICOS Campanas con ventilador interior NEON de la serie E64000 de Broan Elite INTERRUPTOR VENTILADOR < < UTILiCESE SOLO CON UN SISTEMA APROPIADO DE CIRCU D&CION DEL AIRE TERMOSTATO LfNEA-o-NE HILO NEUTRO_ TIERRA] INTERRUPTOR DE LAMPARA L -NE ..
  • Page 48 19. PIEZAS Campanas con ventilador interior Campanas con ventilador exterior o en linea de la serie E64000 de la serie E64000 de Broan Elite de Broan Elit 10 _ 8--i HL0104 HL0103 N. ° L_Cavlm_ N. ° C_ (,_acwELA _...
