Buderus Logano plus GB312 Applications Manual
  1. Manuals
  2. Brands
  3. Buderus Manuals
  4. Boiler
  5. Logano plus GB312
  6. Applications manual
Buderus Logano plus GB312 Applications Manual

Buderus Logano plus GB312 Applications Manual

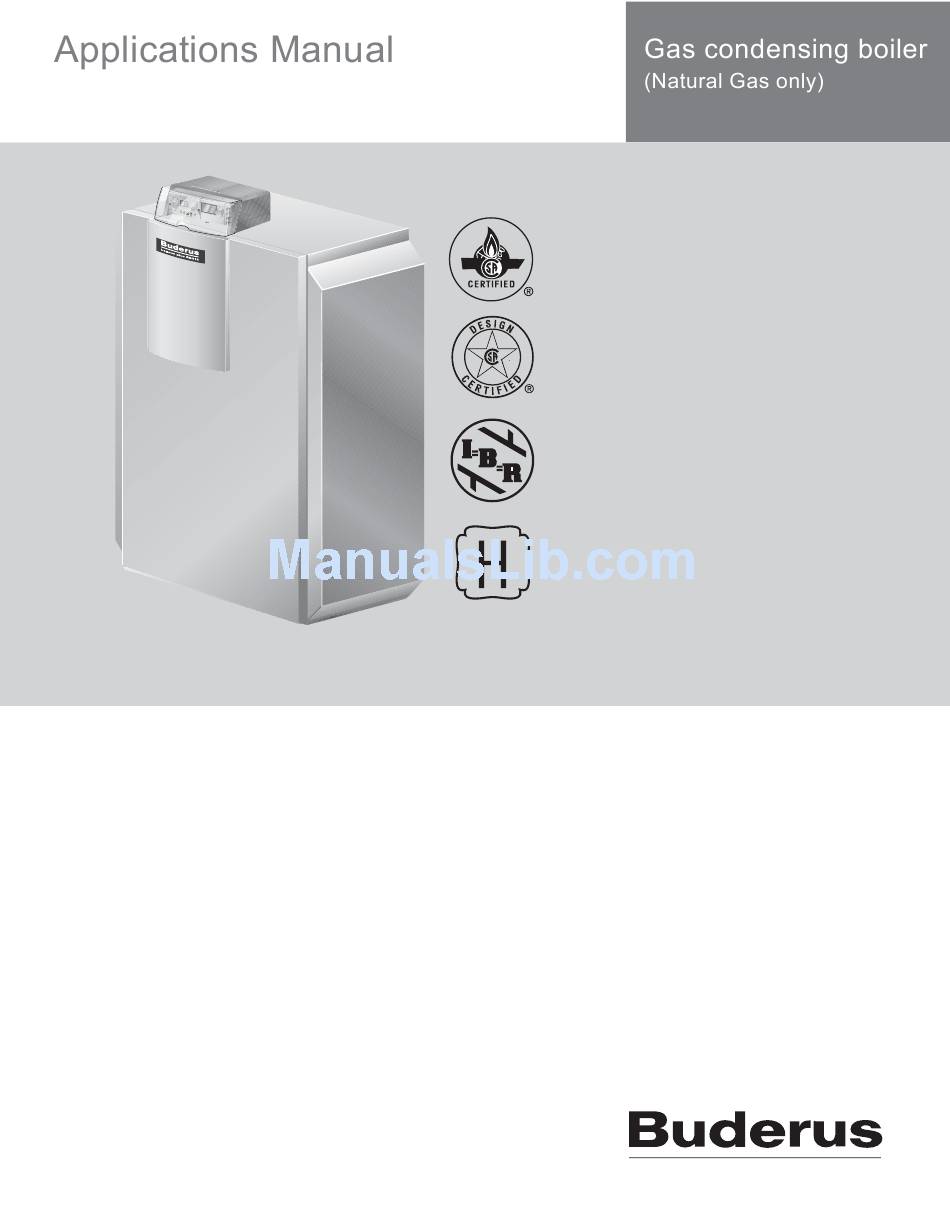

Gas condensing boiler
