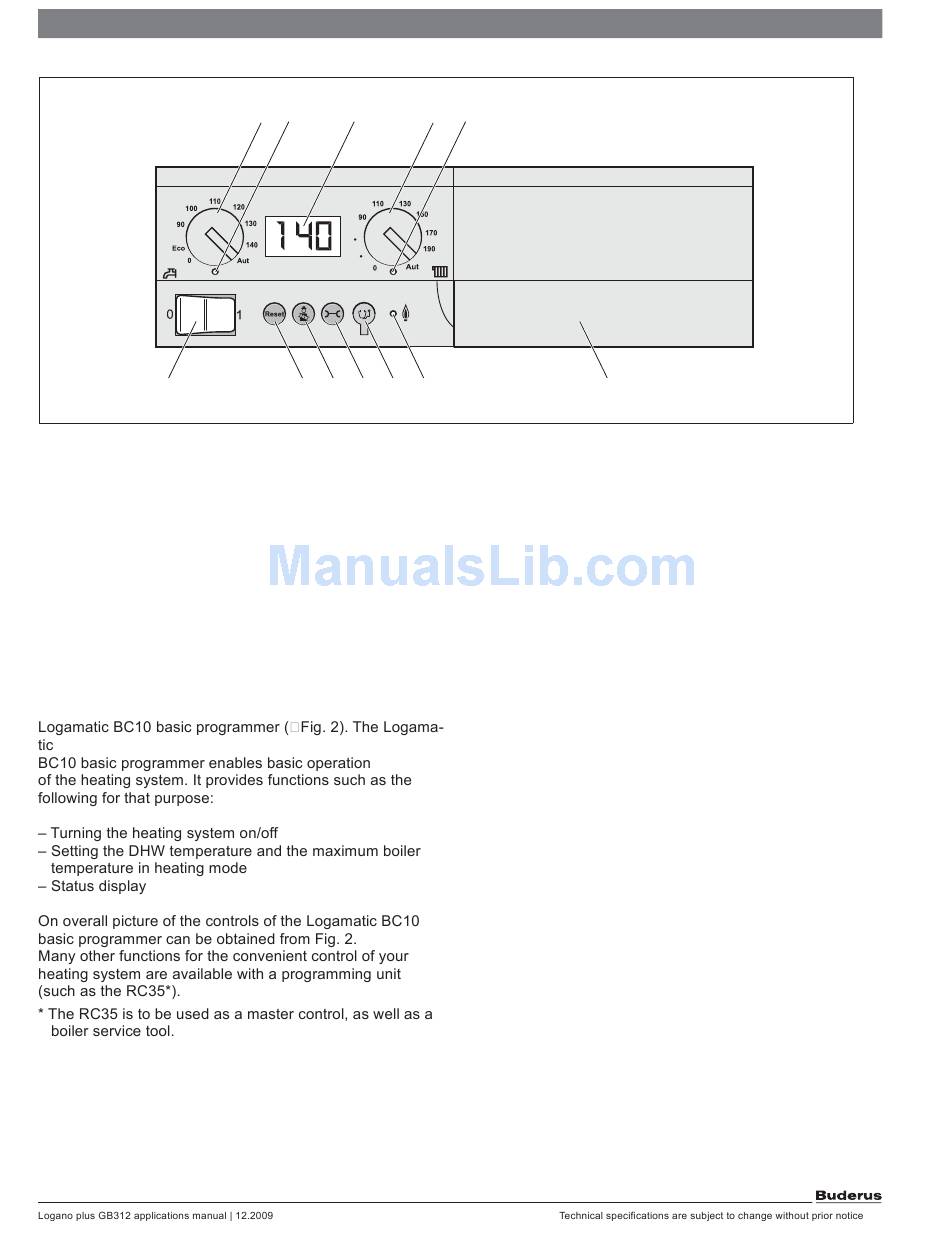

Fig. 2 Logamatic BC10 basic programmer - controls
1 On/off switch
2 Dial for DHW set point
3 "DHW heating" LED
4 Status display screen
5 Control knob for maximum boiler temperature
6 "Heat demand" LED
7 Base plate with slot for a programming unit e.g. RC35
(behind the cover panel)
8 "Burner" LED (ON/OFF)
9 Socket for connecting diagnostic plug
10 "Status display" button
11 "Flue gas test" button
12 "Reset" button
2 3 4 5
12 11 10 9 8
(available : Fall 2008)
6
7
