Accessories

The parts required for the exhaust
air system can be obtained from
customer service or your local
dealer. Please follow the installation
instructions supplied by the
appropriate manufacturer!

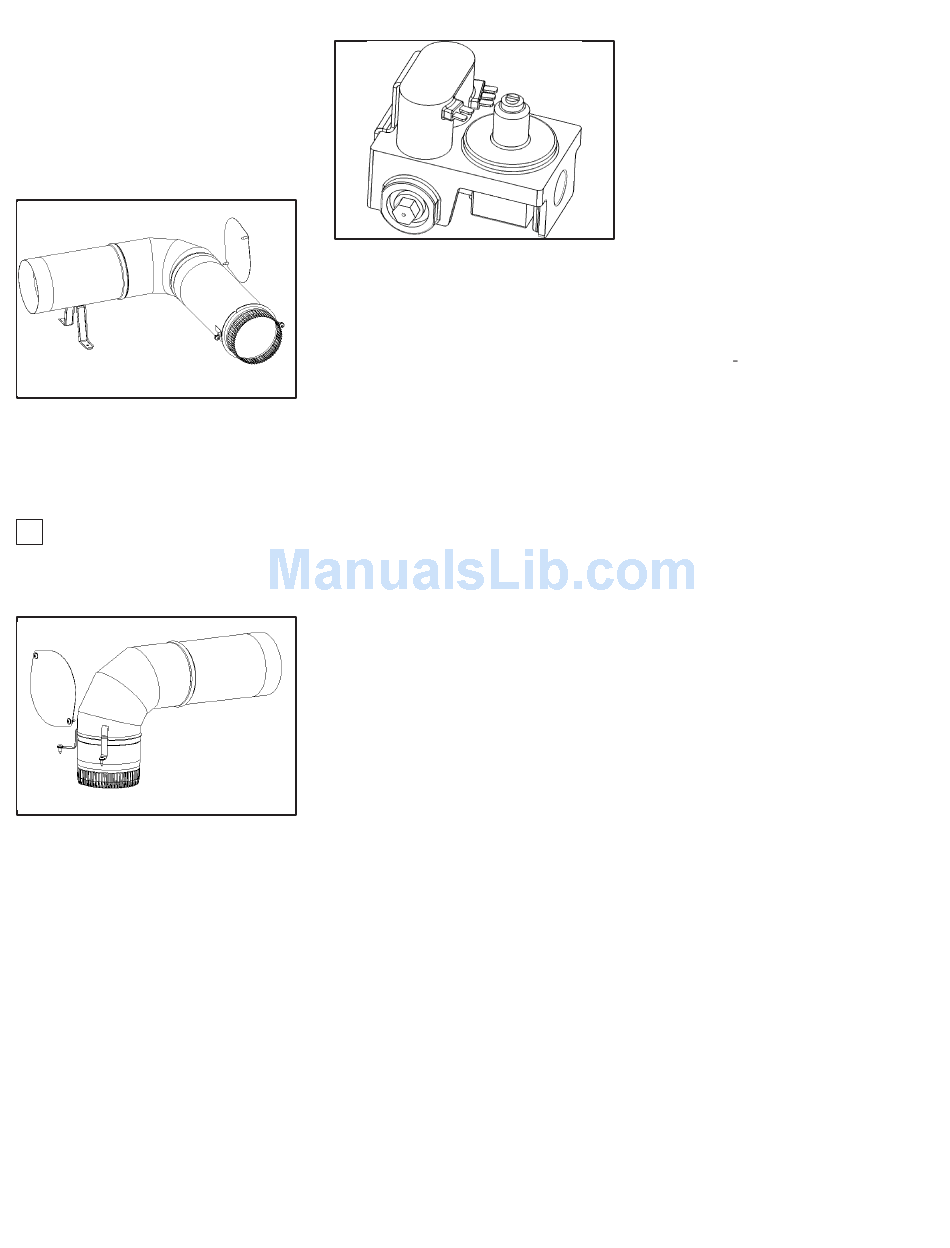

Side exhaust kit
part no. WTZ 1265
Note:
The maximum permitted number of
90° elbows (including this side
exhaust kit) is four!
Special tool for cutting the hole
i
in prepared side panel is
required. Contact local dealer!
Bottom exhaust kit
part no. WTZ 1270
Note:
The maximum permitted number of
90° elbows (including this side
exhaust kit) is four!
LP - Gas Kit
part no. WTZ 1280
The parts required for the LP
version can be obtained from your
local dealer. Please follow the
installation instructions supplied by
the appropriate manufacturer!
Note:
Dryer must be checked for proper
operation whenever the gas
connections have been broken
Left hinge kit
part no. WTZ 126S
The door catch can be reversed if
necessary. The door is hinged on
the right at the factory.
Pedestal Mounting Kit
part no. WTZ 1295S
If mounting the dryer on the
pedestal follow the instructions
supplied with the pedestal.
Mobile home kit
part no. WTZ 1275
Note:
Please check with the Authority
Having Jurisdiction in your area to
verify if a gas dryer can be installed
in your mobile home. Once that has
been verified, installation of the
dryer shall conform to the
Manufactured Home Construction
and Safety Standard, Title 24 CFR,
Part 3280 {formerly the Federal
Standard for Mobile Home
Construction and Safety, Title 24,
HUD (Part 280)}, and/or Standard
CAN/CSA Z240 MH.
Please use mobile home kit number
WTZ 1275 for means to secure the
dryer to the structure.
See page 9 Exhaust Air
Connection" for the exhaust duct
installation instructions.
The exhaust duct must be securely
fastened to a noncombustible
portion of the mobile home
structure and must not terminate
beneath the mobile home.
An opening to the outside must be
provided during installation. Insure
that the free area of the opening for
the introduction of outside air is not
less than twice the area of the dryer
exhaust outlet or use at least a
5 inch diameter exhaust or at least
2
a 25 in square exhaust duct for the
opening.
