Bosch Nexxt 500 Series, Nexxt WTMC3521UC / WTMC352SUC Manual

Introduction

Congratulations on having selected a Bosch clothes dryer, the choice of those that demand exceptional performance from their clothes dryer.
This dryer complies with ANSI Z21.5.1/ CGA 7.1 2002 Clothes Dryers Vol. I.
A distinctive feature of your dryer is low energy consumption.
An easy operation philosophy, a variety of customized drying programs and a solid touch and feel make this appliance a user friendly assistant in your household.
The Bosch dryer offers the following standard features:

• High efficiency precision drying system
• Large 6.4 cu.ft. (181 l) stainless steel drum with a capacity up to 17.6 lbs (8 kg) load
• Large port hole (18"/457 mm), door lock with automatic drum stop function
• Exceptionally quiet operation
• Sensor controlled auto cycles
• Timed cycles from 20 to 60 minutes

Each dryer which leaves our factory has undergone a thorough performance test and is in full working condition. If you have any questions especially concerning installation of the dryer - our customer service team will be happy to advise you.
Further information and a selection of our products can be found on our web site: www.bosch.appliances.com

Please refer to the rating plate to insure that your dryer is designed for your fuel source.

Definitions

This indicates that death or serious injuries may occur as a result of non observance of this warning.

This indicates that injuries may occur as a result of non observance of this warning.
This indicates that damage may occur as a result of non observance of this warning.
This symbol is used to draw the user's attention to important matters.

INSTALLATION INSTRUCTIONS

Before installing the dryer

Unpacking the appliance
The dryer is very heavy. Do not lift it by yourself. Do not lift the appliance by projecting components (e.g. door) due to risk of breakage.

Remove the appliance packaging carefully to prevent damage to the surfaces.
Check the dryer for transportation damage. Do not connect a dryer which is visibly damaged. If in doubt, contact your dealer.

Supplied components

After removing the packaging, immediately remove any objects from the drum.
The dryer is delivered as a complete unit. The operating instructions and supplied accessories can be found in the drum.

Installation location

Do not install the dryer:

• outdoors,
• in an environment with dripping water,
• near flammable materials,
• in rooms which are at risk of frost,
• in rooms which may contain gas or other fuels,
• in cupboards with lockable doors or in alcoves.
• with other fuel burning appliance in the same closet.

The installation room must be well ventilated, otherwise the dryer will operate below optimum performance.
Do not operate the dryer at temperatures above 104°F (40°C) and below 41°F (5°C). Low temperatures affect the automatic program sequence and may prolong the drying times.
The installation surface for the dryer must be clean, level and firm. Do not install the appliance on carpets! Compensate for uneven floors with the height adjustable feet.
Install the dryer and level side to side and front to back. Use a bubble level. Never remove the height adjustable feet!

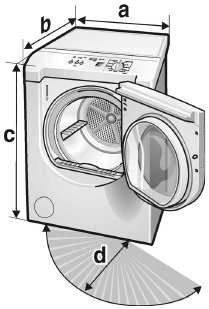

The size of the installation area depends on the dimensions of the dryer. Ensure that there is adequate room for the swivel range of the door!

If installed in a garage, the dryer must be installed on a substantial platform at least 18 inches above the floor to reduce the liklihood of igniting flammable vapors and be located or protected so it cannot be damaged by a moving vehicle

	Dimension	Weight
a	27.0" (686 mm)	125 lbs
b	31.8" (808 mm)	(56 k ) (56 kg)
c	37.2" (945 mm)	with with packaging packaging
d	19.7" (500 mm)/	143 lbs
angle	170-180°	(64 kg)

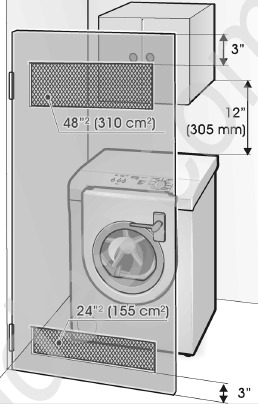

If installing the dryer in a closet, observe the minimum distances according to the following table:
Minimum Installation Clearances

	Closet
Sides	0" (0 mm)
Top	12" (305 mm)
Rear*	0" (0 mm)

* as close to wall as gas piping and venting will allow.

Important information concerning minimum distances:

• Depending on the location of the exhaust air connection, an additional minimum distance of 5½ inch (14 cm) must be provided on this side for pipes/brackets
• Distances above the indicated minimum dimensions reduce the risk of mold formation behind the appliance.
• Additional distances reduce noise transmission.
• Additional distances facilitate installation and service.

• If the dryer is installed in a small room, the doors of the room must be fitted with vents of a specified minimum size.

The dryer door is delivered with hinges on the right. If required, the door hinges can be switched to the left side.
If the door hinges are to be changed over, please contact your dealer or our customer service team.

Electrical connection

GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electrical shock by providing a path of least resistance for the electric current. This appliance features a cord with an equipment grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which has been properly installed and grounded in accordance with all local regulations and ordinances.

Improper connection of the equipment grounding conductor may result in electric shock. Have the appliance checked by a qualified electrician or service technician if you are in doubt as to whether the dryer has been properly grounded.
Do not modify the plug provided with the appliance - if it will not fit in the outlet, have a proper outlet installed by a qualified electrician or exchange the cord with an appropriate one rated for the dryer.

The dryer must only be connected to an individual branch circuit via a socket which has been properly installed and grounded.
The household electrical voltage must correspond to the voltage specification on the dryer (rating plate).
You will find the rating plate on the inside of the front panel.

Connection specifications as well as the electrical requirements are stipulated on the appliance nameplate.
Make sure that:

• the power cord plug fits into the socket.
• the power cord is acceptable for use in this application.
• the grounding system is properly installed.

The power cord may be replaced by an electrician only.
Replacement power cords are available from Customer Service.

Volts	Hertz	Amperes	Watts
110-120	60	9	1080

Gas connection

Explosion hazard!
Use a new AGA or CSA approved gas supply line.
Install a shut off valve.
Securely tighten all gas connections.
Have a qualified person make sure gas pressure does not exceed 14 in. W.C./ 3.49 kPa/ 0.506 psig. (Natural and Propane Gas).
Example of a qualified person include:

• licensed heating personnel,
• authorized gas supplier personnel,
• authorized service personnel.

Failure to do can result in explosion or fire.
Risk of death or injury!
All gas line connections must be tested for leaks prior to appliance operation. Apply soapy water to gas line connections and check for formation of new bubbles. Bubbles indicate leak!
When installing the gas supply to the gas dryer inlet pipe, do not exceed 310 lbf in (35 Nm).

Never use an open flame to test for gas leaks.

Gas type

This gas dryer when equipped for use with NATURAL GAS, will employ an orifice size 46 and have a gas outlet pressure of 3.5 in. W.C. This gas dryer when equipped for use with PROPANE GAS, will employ an orifice size of 1.21 mm, and have a gas outlet pressure of 11 in. W.C.
Your dryer must have the correct valve for the type of gas in your home. Valve information is located on the rating plate behind the door below the drum. If the rating plate information does not agree with the type of gas available, contact your dealer or our customer service team.

Gas supply line

¹/₂" I.D. pipe is recommended.
³/₈" approved tubing is acceptable for lengths under 20 ft (6.1 m) if local codes and gas supplier permit.
Must include ¹/₈" NPT plugged tapping, immediately upstream of the gas connection.
A shut off valve must be included:

• USA:
  An individual manual shut off valve must be installed within 6 ft (1.8 m) of the dryer in accordance with the National Fuel Gas Code, ANSI Z223.1.
• Canada:
  An individual manual shut off valve must be installed in accordance with the B149, Installation Codes, CAN/CSA B149.1 and CAN/CSA B149.2. It is recommended that an individual manual shut off valve be installed within 6 ft (1.8 m) of the dryer.

1. ¹/₂" NPT gas supply line
2. Gas shut off valve
3. ¹/₈" NPT plugged tapping
4. ³/₈" pipe to flare adapter fitting
5. ³/₈" flexible gas connector (to the dryer)

The shut off valve should be easy to reach for opening and closing.
Note:
The dryer must be checked for proper operation whenever the gas connections have been broken.

Dryer gas pipe
The gas pipe that comes out through the rear of the dryer has a ³/₈" male pipe thread.

Connection of the dryer

Connection must be made by a qualified technician.
The dryer must be disconnected from the gas supply piping system during testing pressure.
When using for the first time make sure that there is no air in the piping system.

Do not use copper pipes and tubing if connected to natural gas.
The connection may be different, according to the supply line type, size and location.
If local codes permit, use a flexible stainless steel connector (Design certified by the America Gas Association or CSA International) to connect the dryer.

To reduce the distance between body sheet and wall install a ³/₈" elbow on the gas pipe of the dryer.

1. gas pipe (³/₈" male pipe thread)
2. ³/₈" elbow

Exhaust air connection

1. To reduce the risk of fire, this dryer MUST BE EXHAUSTED OUTDOORS.
2. To reduce the risk of fire, do not use ductwork longer than recommended.
3. DO NOT use a plastic or non metal duct with this dryer.
4. DO NOT use a duct smaller than 4 inches in diameter.
5. DO NOT use exhaust hoods with magnetic latches.
6. DO NOT exhaust the dryer into a chimney, furnace cold air duct, attic, crawl space, or any other ductwork used for venting.
7. DO NOT install a flexible duct in an enclosed wall, ceiling or floor.
8. DO NOT crush or kink the duct.
9. Do clean and inspect the exhaust system on a regular basis; at least once a year.
10. The exhaust duct must terminate in a manner to prevent back drafts or entry of birds or other wildlife.

The Bosch dryer must be vented outdoors. To prevent build up of moisture and accumulation of lint indoors, as well as to maintain maximum drying efficiency, it is recommended that the dryer is vented outdoors.

Exhaust air outlet on the dryer

The dryer is delivered with an exhaust air outlet on the rear of the appliance.
To take account of the spatial requirements and an existing exhaust air system, the following connection options are possible for the exhaust air outlet:

• on right side of the appliance,
• on the underside of the appliance.

1. Exhaust air outlet on the rear of the appliance (standard)
2. Exhaust air outlet on the side (optional)
3. Exhaust air outlet on the underside of the appliance (optional)

Special exhaust air connections must be obtained from our customer service for either connection type

• Side air exhaust
• Bottom air exhaust

A qualified technician should change the exhaust air outlet to the optional connection location.

Ductwork

To ensure optimum performance, the ducting system of the dryer should be as short as possible with a minimum number of elbows. Your dryer will work best when the venting system has as few air flow restrictions as possible. Exhaust ducting which is longer than recommended may extend drying time, cause lint to accumulate and affect dryer performance and dryer life.

Four-inch (approx. 100 mm) diameter ducting should be used. Use either rigid metal or flexible metal ducting material. DO NOT use plastic or non metal duct with this dryer.
DO NOT assemble the ductwork with screws or fasteners that extend into the duct. They will serve as an accumulation point for lint.
Joints should be secured with aluminium tape.

All joints should be tight to avoid leaks. The male end of each duct section must point away from the dryer.
Whether connecting to an existing venting system or a new venting system, make sure that all ducting is clean and free of lint.
The maximum permitted length for both rigid and flexible metal duct is shown in the table below.

Number of 90° Turns or Elbows	Rigid Duct	Flexible Duct
0	66 ft. (2011 cm)	45 ft. (1372 cm)
1	56 ft. (1707 cm)	36 ft. (1097 cm)
2	48 ft. (1463 cm)	29 ft. (884 cm)
3	39 ft. (1189 cm)	22 ft. (671 cm)
4	30 ft. (914 cm)	16 ft. (488 cm)

Note:
Side and bottom exhaust installations have a 90° turn inside the dryer. To determine maximum exhaust length, add one 90° turn to the chart.
More than two 90° turns are not recommended. For best performance, separate all turns by at least 4 ft. of straight duct, including distance between last turn and exhaust hood.

Exhaust vent hood

The exhaust duct must end with an approved exhaust vent hood with swing out damper(s). DO NOT use an exhaust vent hood with magnetic latches.
To avoid exhaust restriction, the outlet must be a minimum of 12 inches (30 cm) above ground level or any other obstructing surface.

Required parts
The parts required for the exhaust air system (elbows, lines, exhaust air outlets) are not included in standard delivery of the dryer.

Accessories

The parts required for the exhaust air system can be obtained from customer service or your local dealer. Please follow the installation instructions supplied by the appropriate manufacturer!

Side exhaust kit
part no. WTZ 1265

Note:
The maximum permitted number of 90° elbows (including this side exhaust kit) is four!
Special tool for cutting the hole in prepared side panel is required. Contact local dealer!

LP - Gas Kit
part no. WTZ1280

The parts required for the LP version can be obtained from your local dealer. Please follow the installation instructions supplied by the appropriate manufacturer!
If you have a propane gas dryer and need to convert it to natural gas, (Service Kit 496297) please consult your customer service agent for assistance.
Note:
Dryer must be checked for proper operation whenever the gas connections have been broken.

Bottom exhaust kit
part no. WTZ1270

Note:
The maximum permitted number of 90° elbows (including this side exhaust kit) is four!

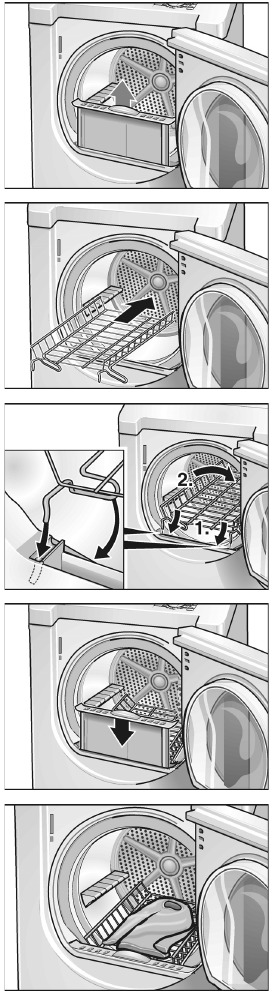

Dryer rack
part no. WTZ 1290

Use the dryer rack to dry washable woolen textiles (e.g. sweaters) and shoes.

Left hinge kit
part no. WTZ 1260 (White Dryers)
part no. WTZ 126S (Silver Dryers)
The door catch can be reversed if necessary. The door is hinged on the right at the factory.

Pedestal Mounting Kit
part no. WTZ 1295 (White Dryers)
part. no. WTZ 1295S (Silver Dryers)
If mounting the dryer on the pedestal follow the instructions supplied with the pedestal.

Mobile home kit
part no. WTZ 1275
Note:
Please check with the Authority Having Jurisdiction in your area to verify if a gas dryer can be installed in your mobile home. Once that has been verified, installation of the dryer shall conform to the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 {formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD (Part 280)}, and/or Standard CAN/CSA Z240 MH.
Please use mobile home kit number WTZ 1275 for means to secure the dryer to the structure.
See "Exhaust Air Connection" for the exhaust duct installation instructions.
The exhaust duct must be securely fastened to a noncombustible portion of the mobile home structure and must not terminate beneath the mobile home.
An opening to the outside must be provided during installation. Insure that the free area of the opening for the introduction of outside air is not less than twice the area of the dryer exhaust outlet or use at least a 5 inch diameter exhaust or at least a 25 in² square exhaust duct for the opening.

Installation - step by step

1. Unpack the dryer.
2. Remove all objects from the drum.
3. Check the dryer for visible damage.
4. Position the dryer near the installation location.
5. If required, have customer service change the door hinges to the left.
6. If required, have customer service install the exhaust air outlet on the dryer.
7. Have the gas supply connected by an qualified technician.
8. Install exhaust duct, if necessary. Follow the installation instructions supplied by the appropriate manufacturer!
   If space is very restricted, it is recommended to fit the initial parts of the exhaust duct to the dryer before the dryer is moved to its final installation location.
9. Move the dryer to its final location and align.

   Do not slide dryer across the floor if height adjustable feet have been extended. Feet and/or dryer base may be damaged if dryer is slid across floor with height adjustable feet extended.

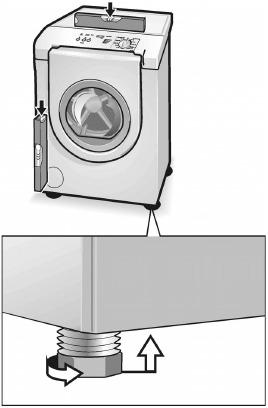

10. Position and then level the dryer

    The dryer should be level with all four feet firmly on the ground. The dryer must not wobble. If the dryer is not level or if it does wobble, the feet must be adjusted. Adjust the height adjustable feet until the dryer does not rock and is level, both front to back and side to side.
11. Connect the exhaust duct to the exhaust air outlet on the dryer.
12. Insert plug into the wall receptacle.

Check list before using the dryer

1. Check that steps 1-12 have been implemented properly.
2. Ensure that the dryer is connected to the power supply.
3. Open the shutoff valve.
4. Read the operating instructions to understand how your dryer operates.
5. Conduct an appliance test:
   • Check that the drum is empty.
   • Close the dryer door.
   • Switch the dryer to "Extra Dry" and then press the Start button.
   • After 3-5 minutes press the Stop button and open the door.
6. If the interior of the dryer feels warm, the dryer has been connected properly.
   Switch the dryer to "Off".
7. If the dryer does not work, switch the dryer to "Off".
   Look in the troubleshooting section of the OPERATING INSTRUCTIONS and find the fault.

Preparing to transport the dryer - step by step

1. Close the shut off valve.
2. Rotate the program selector to "Off".
3. Pull out the power supply plug or turn off the circuit breaker.
4. Disconnect gas supply
5. Disconnect the exhaust duct from the exhaust air outlet on the dryer.
6. Place any accessories in the drum.
7. Close the door and secure with adhesive tape.
8. Screw the height adjustable feet of the dryer into the housing to prevent them from being damaged during transportation.

OPERATING INSTRUCTIONS

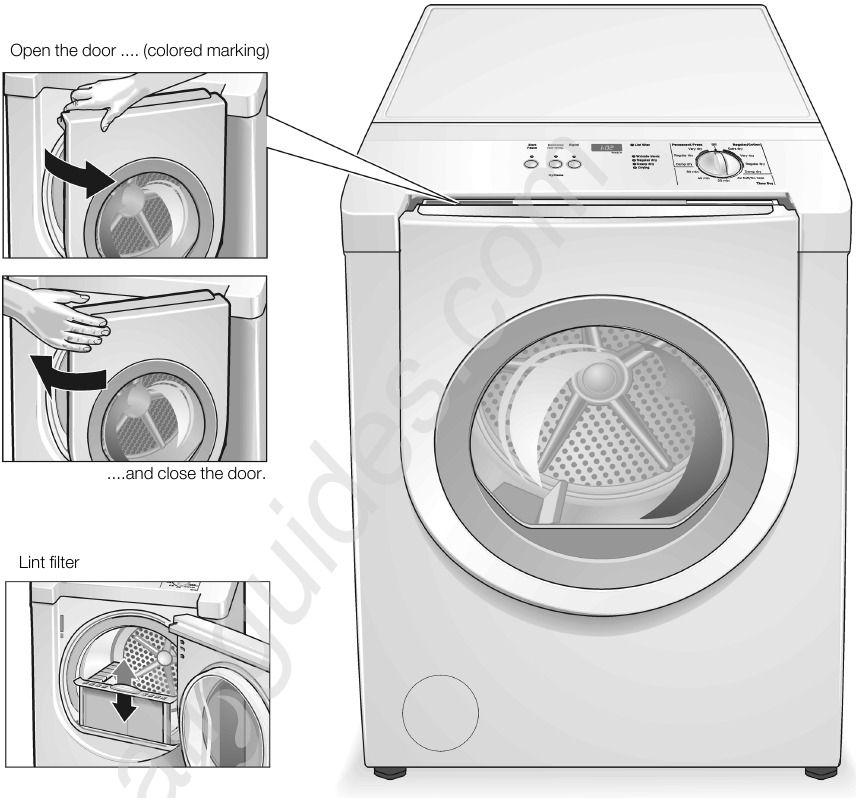

Your new dryer

Access panel located on the bottom left corner of the dryer is for Service Access Only.

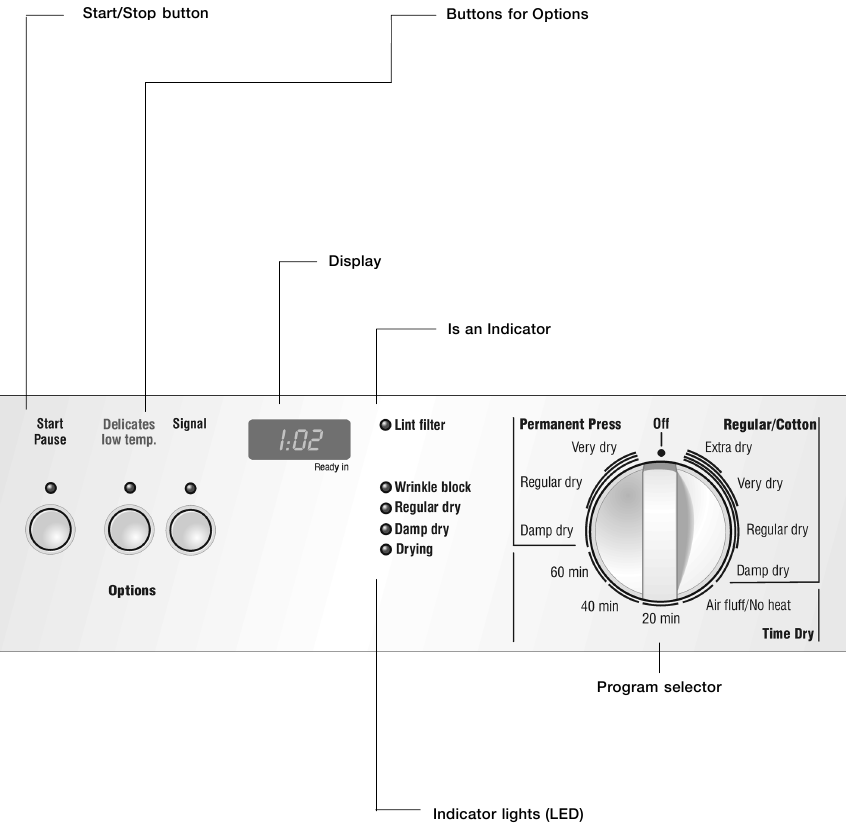

Control Panel

Start/Stop button
Starts, interrupts and ends the drying process.
Buttons for Options (in addition to the program if required).
See "Delicates low temp."
Press for temperature sensitive textiles (e.g. acrylic fibers). The temperature of the drying process is reduced, the drying time is extended correspondingly.
Signal
An acoustic signal indicates the end of the program.
Display
Indicates the estimated remaining time of programs.
Is an Indicator
Serves as a reminder to clean the lint filter.
Program selector
Selects a program.
To switch off the dryer, rotate the program selector to "Off".
Indicator lights (LED)
Indicate the current state of the drying process.

Summary of instructions

Before using your dryer read and follow all installation and operating instructions.

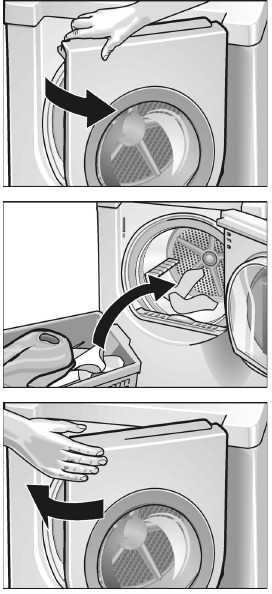

Preparing the dryer
Check the lint filter. The filter should be cleaned before and after every drying process.

Selecting a program

Choose an option...

...and start the dryer.

Switch off the dryer

Using the dryer rack

Safety information

Always follow the IMPORTANT SAFETY INSTRUCTIONS.

TO AVOID EXPLOSION HAZARD!
Keep flammable materials and vapors, such as gasoline, away from the dryer.
Do not dry anything that has ever had anything flammable on it (even after washing).
Do not dry anything that has ever had any type of oil on it (including cooking oils).
Items containing foam, rubber or plastic must be dried on a clothes line or by using an Air fluff/No heat cycle.
Do not allow items containing flammable materials, such as lighters, to remain in clothes while drying.
Failure to follow these instructions may result in explosion or fire.
To avoid risk of death or injury!
Use the dryer only in the house or the garage for drying normal amounts of laundry for the household.
Use only for drying textiles which were washed with water.
Never operate the dryer without the front cover plate in place.

Before switching on the dryer
Install the dryer in accordance with the installation instructions.
Do not use a dryer which is visibly damaged. If in doubt, contact your dealer.

Using the dryer
Do not leave children unsupervised near the dryer.
Keep pets away from the dryer. Before closing the door, check the contents of the drum.
Remove all objects from pockets. Lighters are particularly hazardous. Risk of explosion!
Switch off the dryer at the end of the program.

Protecting the dryer
Do not climb on the dryer.
Do not lean or sit on the door. Risk of dryer tipping over!
Do not store or use solvent detergent boosters or stain remover in the vicinity of the dryer.
The dryer could be damaged.
Do not lift the dryer by projecting components.
Risk of breakage!

Protection of the environment

Tips on saving energy
To save energy, money and time, Bosch recommends the following:

• Drain the laundry thoroughly!
  Before drying, spin the laundry thoroughly in the washing machine. Use the highest possible spin speed for the type of laundry! Higher spin speeds reduce the drying time and the energy consumption.
• Use optimum load!
  Use maximum recommended loads. However, do not exceed loads.
• Clean filter!
  Clean the filter before and after each drying process
• Ventilate the room!
  During the drying process provide an adequate supply of fresh air.
• Do not dry unsuitable materials!
  Do not dry rubberized or air tight items.
• Do clean and inspect the exhaust system on a regular basis!
  Blockages may extend drying time.

Before using the dryer for the first time

Before you use the dryer for the first time:

1. Read these operating instructions carefully.
2. Check that the supply voltage corresponds with the voltage specifications on the rating plate of the dryer.
3. Check that the gas type corresponds with specifications on the rating plate of the dryer.
4. Have a qualified person make sure gas pressure does not exceed 14 in. WC/3.49 kPa.0.506 psig (Natural and Propane Gas).
5. Remove all objects from the drum.
6. Check the dryer for visible damage. If damages found contact your dealer.
7. Wipe the inside of the drum with a damp cloth.
8. Conduct an appliance test.
9. If the dryer does not work, switch the dryer to "Off".
   Look in the troubleshooting section of the operating instructions and find the fault.

Temporary disconnection of the dryer

Operate your dryer only when you are at home. If you intend going on vacation or are not using your dryer for an extended period of time, you should:

1. Turn off the circuit breaker.
2. Close the shut off valve.
3. Pull out the power supply plug if possible.
4. Clean the lint filter.

Laundry

Identification of fabrics
Observe the treatment symbols on the textile labels. They provide valuable information as well as limitations about the drying process.
Do not dry the following textiles in the dryer:

• Air tight textiles (e.g. rubberized)
• Delicate fabrics (silk, synthetic curtains)

Dry woolen or wool rich textiles with dryer rack only!
Use the time program "Air fluff/No heat" to dry articles containing foam rubber or similarly textured rubber like materials.

Drying tips
In principle, the following applies to all drying programs:

• To ensure a uniform drying result, sort the laundry according to fabric type and drying program.
• Fasten zippers, hooks and eyes. Fasten loose belts, apron strings, etc..
• Do not overdry easy care laundry - risk of wrinkling! Leave laundry to dry in the air.
• Do not iron laundry immediately after drying. Place the laundry in a pile for a short while. Residual moisture will then be distributed uniformly.
• Knitted textiles (e.g. T-shirts, cotton jersey laundry) often shrink when dried for the first time. Do not use the "Very dry/Extra dry" program.

Program selection

For optimum drying results your dryer offers several program groups and additional options.
Select the required drying program from the program table according to the examples.

Automatic programs

There are automatic programs for different types of textiles.
(Regular/Cotton or Permanent press).
Regular/Cotton

Permanent Press

The program sequence of automatic programs is controlled via sensors. The duration of the program depends on the measured degree of moisture in the laundry and on the selected degree of dryness (e.g. Damp dry or Extra dry).

Time programs

Time programs run for a specific time (20, 40, 60 minutes).
In the "Air fluff/No heat" stage the dryer runs on ambient air without a heat supply for 20 minutes.

Dry woolen or wool-rich textiles with dryer rack only!

Options

Delicates low temp.
Press the "Delicates low temp." button for temperature sensitive textiles. Observe the care information or symbols on the textiles. The temperature of the drying process is reduced, the drying time is extended.

Signal
Your dryer outputs different signals, if the "Signal" button is pressed.

Signal	Type
Start	Short tone
End	Sequence of short tones
Mal operation	Sequence of long tones
Warning of malfunction	Sequence of long tones

The signal "Warning of malfunction" is active in any case.

Indicator of program sequence

The dryer uses an electronic scanning system for all programs except the time programs. A moisture sensor continuously checks the moisture in the laundry. Drying ends automatically as soon as the selected degree of dryness has been reached. The drum continues to rotate at specific intervals for one hour to prevent creasing.
The current degree of drying and the level reached during the program sequence is indicated via indicator lights (Drying, Damp dry, Regular dry, Wrinkle block).

If the indicator light "Wrinkle block" illuminates when the program selector is in Off - Position - turn off the circuit breaker and call for customer service!

Program selection table

Automatic programs
For Cottons and coloreds made of cotton or linen. Press "Delicates low temp." button for temperature sensitive textiles.		"Regular/Cottons" Automatic program
	For laundry
Bed linen, table linen, towels	which is to be ironed	Damp dry
Bed linen and table linen, towels, T-shirts, sports shirts, overalls
T-shirts, sports shirts, dresses, trousers, overalls, underwear
Terry towels, kitchen towels, hand towels, bed linen, underwear, cotton socks	which is not to be ironed	Regular dry
Terry towels, kitchen towels, hand towels, bed linen, underwear, cotton socks	which is not to be ironed, thick multi-ply	Very dry
Terry bathrobes and terry bed linen,	which is particularly thick or multi-ply	Extra dry
Easy care (drip dry) laundry made of synthetic and blended fabric, cotton e.g. polyester Press the "Delicates low temp." button for very temperature sensitive textiles.		"Permanent Press" Automatic program
	For laundry,
Trousers, dresses, skirts, shirts, blouses, leggings, sports clothing with synthetic rich fibers, lingerie	which is not to be ironed or only lightly ironed	Damp dry
Shirts, blouses, sports clothing	which is not to be ironed	Regular dry
Bed linen and table linen, track suits, comforters, blankets	which is not to be ironed, thick multi ply	Very dry
Time programs		"Time Dry"
Pre dried textiles with low moisture content, individual small items, e.g. bath towels, bathing suits, dish cloths. For the smallest loading condition from 0.22 lb 0.44 lb (i. e. one small towel), for this a time dry program should be selected Press the "Delicates low temp." button for temperature sensitive textiles.
Cottons and coloreds made of cotton or linen. Temperature sensitive textiles.		20, 40, 60 min 20, 40, 60 min
Freshening or airing little worn items of clothing and drying of extreme sensitive textiles. For all textile types inclusive foam rubber (e.g. pillows, stuffed toys), plastic (e.g. shower curtains, table clothes), rubber (e.g. backed rugs), sheer nylon, polypropylene.		Air fluff/No heat

Operation

Using the dryer

1. Open the door.

2. Check lint filter.
   The filter should be cleaned after and before every drying process. Cleaning the filter reduces the drying time and saves energy.

3. Rotate program selector to the desired program.
   Select the program which corresponds to the laundry in the dryer from the program selection table.
   The dryer light turns on inside the drum.

   The "Start/Stop" indicator light starts flashing.
4. If required, select "Option" by pressing the button.
   The "Options" are explained above.

5. Place laundry in the empty drum. Put each piece of laundry into the machine separately.
   For best results the laundry to be dried must be sorted according to type of laundry and desired degree of drying.

   Observe drying symbols of the laundry manufacturer. If drying woolen clothing and shoes.
   Ensure that there is only laundry in the drum. Check that all items are completely in the drum.
6. Close the door.
   The "Start/Stop" indicator light continues flashing.
   If the door has not been closed properly, the dryer will not start.

7. Press the "Start/Stop" button. The "Start/Stop" indicator light illuminates.
   The program starts with an acoustic signal (if set).
   If a standard program has been selected, the indicator lights indicate the progress of the program sequence.

   At program end an acoustic signal is emitted (if set) and the "LED Wrinkle block" illuminates.
   When the drying process is complete (program or selected time program ended), the drum rotates at specific intervals for 1 hour.
   This prevents the laundry from creasing. The laundry remains loose and fluffy until it is removed. The laundry should be removed before this time has elapsed.
8. Open the door.

9. Take the laundry out of the dryer.
10. Rotate the program selector to "Off".
    The dryer light goes out.

11. Clean the filter.
    The filter should be cleaned after each drying process. Cleaning the filter reduces the drying time and saves energy.
12. Close the door.

Using the dryer rack

Use the dryer rack to dry washable woolen textiles (e.g. sweaters) and shoes. The dryer rack remains stationary while the drum rotates. Damp wool should not be moved, as it has a tendency to matt. Drying shoes without a rack could damage the drum.

Dry only one item of clothing or one pair of shoes - maximal dry load 2.2 lbs (1 kg)! The laundry must have been spun! Only dry prewashed shoes! The laundry must not touch the drum! It could jam and be damaged. After using the dryer rack, take it out of the dryer immediately.

Inserting the dryer rack

1. Open the dryer door.
2. Check that the drum is empty.
3. Remove the lint filter.

4. Lift the dryer rack horizontally into the drum.

5. Place the dryer rack so that the catches are inserted at the front in the locating holes.

6. Insert the lint filter.
   The lint filter must be inserted flush with the drum edge!


Drying laundry items on the dryer rack

1. Fold laundry to fit the dryer rack.

2. Place laundry loosely on the basket. Do not crush! Laundry must not touch the drum! Do not allow items to hang over the dryer rack!
3. Close the door.
4. Follow directions for time program on next page.

Drying shoes on the dryer rack

1. Prepare shoes.
   • Clean shoes to prevent the drum from becoming soiled.
   • If preparing sports shoes, extend the tongue.
   • Loosen or remove shoe laces.
   • Remove insoles and heel pads.
2. Place shoes on the rack.

   • Directly on the dryer rack
     or
   • Roll up a towel and place the heels of the shoes on the towel. This will ensure a more uniform drying result.

3. Close the door.

Choose a time program

1. Rotate program selector to "Time dry/... min.".
   • Select the drying time from the following table according to the laundry type.

     Laundry type	Required drying time
     Thin woolen pullover (approx. 0.8lbs/350 g)	80 min. (e.g. 60 + 20 min)
     Thick woolen pullover (approx. 1.9lbs/850 g)	90-120 min. (e.g. 60 + 40 min)
     Skirt	60-90 min.
     Trousers	60-90 min.
     Small items (e.g. gloves)	30 min.
     Shoes	30 min.

2. Press the "Start/Stop" button. The "Start/Stop" indicator light illuminates.
3. If the item of clothing still contains residual moisture after the indicated drying time:
   • Fold the item of clothing so that the damp parts are on the outside.
   • Restart the program and reduce the drying duration depending on the degree of residual moisture.
4. After drying, spread out the laundry at air for approx. 15 min. (shoes for approx. 30 min.).
5. Remove the lint filter.
6. Take the dryer rack out of the drum.

7. Re-insert the lint filter.


Cleaning and care

Cleaning the dryer

TO AVOID RISK OF EXPLOSION!
Never use solvents or highly flammable liquids for cleaning.

Incorrect cleaning may damage the dryer. Do not spray with a water jet. Do not use scouring agents or all purpose cleaners. Do not use steam cleaners.
Wipe the housing and fascia with a soft cloth and soapy water only.
Wipe the drum, door seal and inside of the door with a damp cloth only.

Cleaning the lint filter

A dirty filter extends the drying time and increases energy consumption.
The filter should be cleaned before and after each drying process.
If a warning signal and an E01 warning message are emitted during a drying program, clean the filter immediately and check the exhaust duct.
The program interrupts automatically.

1. Switch off the dryer. Program selector to "Off".

   The inside of the door heats up during the drying process.
2. Open the door.
3. Remove the lint filter.
4. Remove lint by stroking your hand over the filter.

   The filter should be lightly scrubbed twice a year with warm soapy water. The filter is cleaned when it no longer holds water. The filter must be dried thoroughly before being replaced.
5. Insert the filter.
6. Close the door.

Cleaning the exhaust duct

Inspect and clean the exhaust ducting at least once a year to prevent clogging. A partially clogged exhaust can lengthen the drying time.

• Turn off the circuit breaker
• Pull out power supply plug
• Close the shut off valve.
• Disconnect the duct from the dryer.
• Vacuum and reconnect the duct.

Remove gas connection before moving the dryer to clean the duct. Be careful not to destroy the gas connection when cleaning the duct.

Cleaning the moisture sensor

The moisture sensor has to be cleaned because a fine layer of transparent buildup is deposited on the sensors.
This deposit can easily be removed by wiping the sensors (the two bars next to the lint filter) with a cloth and a little white vinegar.
Use white vinegar only!
Clean the moisture sensor once a month.

Cleaning the bearing shield

Over time, fluff from the drying process collects in the bearing shield.
This fluff can be easily removed using your vacuum cleaner, at least once a month.

Change the light bulb

The dryer light turns on inside the drum when you open the door.
To change the light bulb:

• Set program selector to "off".
• Turn off the circuit breaker.
• Pull out power supply plug.
• Open the door and locate the light bulb on the upper left side of the seal.
• Loosen the screw of the cover and open the cover.

• Turn bulb counterclockwise. Replace the bulb with a new appliance bulb only (obtainable through parts department).
• Replace the cover and secure with the screw.
• Plug in dryer or reconnect power supply.

Troubleshooting

TO AVOID RISK OF ELECTRICAL SHOCK!
TO AVOID EXPLOSION HAZARD!
Repairs or replacement of parts may be carried out by authorized technicians only.
Before calling the customer service, check whether you can rectify the fault yourself by means of the following table.
If a fault cannot be rectified or a repair is required:

1. Set program selector to "Off".
2. Turn off the circuit breaker.
3. Pull the main plug out of the socket.
4. Close the shut off valve.
5. Call customer service.

Problem	Possible cause	Remedial action
Dryer does not start. "Start/Stop" indicator light does not Start/Stop indicator light does not illuminate.	Main plug not inserted at all or not inserted correctly.	Insert main plug correctly.
	A fuse of power supply has tripped.	Replace/switch on fuse.
	"Start/Stop" button not pressed.	Press "Start/Stop" button.
	No program selected.	Select program.
	Door not closed.	Close door.
	Ambient temperature below 41°F/5°C.	Increase room temperature.
Laundry is wet after drying.	The shut off valve is closed.	Open the shut off valve.
Program has been interrupted. A warning signal is emitted and the display shows "E:01".	Lint filter dirty.	Clean filter Switch off/switch on again.
	Exhaust air duct is blocked or too long.	Clean exhaust air duct. Reduce exhaust air duct to maximum length Switch off/switch on again.
	Fault in program sequence or malfunction.	Switch off dryer, leave to cool down for 30 min, switch on again. Restart program.
	The room/cabinet is not adequately ventilated.	Provide an adequate supply of fresh air. Switch off/switch on again.
Degree of drying has not been reached or the drying time is too long. Display may indicate "E:03".	Moisture sensor dirty.	Clean moisture sensor Switch off/switch on again.
	Exhaust air duct is blocked or too long.	Clean exhaust air extraction. Reduce exhaust air duct to maximum length Switch off/switch on again.
	Lint filter dirty.	Clean filter Switch off/switch on again.
	Laundry was too wet.	Spin laundry at higher speed in the washing machine. Switch off/switch on again.
	Unsuitable program selected.	Select program with aid of the program selection table. Switch off/switch on again.
	Maximum drying time was exceeded.	Clean lint filter. Check exhaust air extraction. Spin laundry at a higher speed in your washer.
	Motor limit temperature was exceeded.	Switch off dryer, leave to cool down for 30 min. Switch on again. Start program.
Drum light does not function.	No program selected.	Select program.
	Light bulb defective, light bulb burned out.	Change light bulb.
	No power supply.	Guarantee power supply.
	Light bulb is loose.	Tighten light bulb. Remove and reinstall the cover.
"Start/Stop" indicator light does not illuminate "Wrinkle block" indicator illuminate "Wrinkle block" indicator lights. The display shows "000".	Fault in program sequence or malfunction.	Switch off dryer, leave to cool down for 30 min, switch on again switch on again. Restart program.
Lint filter LED is blinking after lint filter has been cleaned	Blinking of lint filter LED is not an indication of a problem. It is used only as a reminder.	No action required. Light will stop blinking.

SERVICE and REPAIR

Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. verify proper operation after servicing.
The Bosch dryers require no special care other than the care and cleaning noted above.
If you are having a problem with your dryer, before calling for service please refer to Table above.
If service becomes necessary, contact your dealer or installer or an authorized service center. Do not attempt to repair the appliance yourself. Any work performed by unauthorized personnel may void the warranty.
If you are having a problem with your Bosch dryer and are not pleased with the service you have received:

• First, please contact your installer or the Bosch Authorized Service Contractor in your area and explain to them why you are not satisfied. This will usually correct the problem.
• If after working with your installer or service person the problem still has not been resolved to your satisfaction, please let us know by either writing to us at,
  BSH Home Appliances
  5551 McFadden Avenue
  Huntington Beach, CA 92649
  or, calling us at 1 800 944 2904.

Please be sure to include, if writing, or have available, if calling, the following information:

• Model Number
• Serial Number
• Date of Original Purchase
• Date Problem Originated
• Explanation of Problem

Also, if writing, please be sure to include a daytime telephone number and a copy of the sales invoice.
You will find the model number and serial number information on the rating plate located on the inside of the front panel.

For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or death.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS
  • Do not try to light any appliance.
  • Do not touch any electrical switch. Do not use any phone in your building.
  • Clear the room, building or area of all occupants.
  • Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
  • If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer, service agency or the gas supplier.

IMPORTANT SAFETY INSTRUCTIONS

1. Read all instructions before using the dryer. Bosch dryers are provided with Operating, Care and Installation Instructions.
2. Do not dry articles that have been previously cleaned, washed, soaked, or spotted with gasoline, dry cleaning solvents, other flammable, or explosive substances as they give off vapors that could ignite or explode.
3. Do not allow children to play on or with the appliance. Close supervision of children is necessary when the appliance is used near children.
4. When children become old enough to operate the appliance, it is the legal responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons.
5. Do not reach into the appliance if the drum is rotating.
6. Do not install or store this appliance where it will be exposed to the weather.
7. Do not tamper with the controls.
8. Do not repair or replace any part of the appliance or attempt any service unless specifically recommended in the user maintenance instructions or in published user repair instructions that you understand and have the skills to carry out.
9. Do not use fabric softeners or products to eliminate static unless recommended by the fabric manufacturer.
10. Do not use heat to dry articles containing foam rubber or similarly textured rubber like materials. Foam rubber materials can ignite when heated.
11. Clean lint screen before or after each load.
12. Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust and dirt. An obstructed port might reduce the airflow and cause over heating.
13. The interior of the machine and exhaust duct should be cleaned periodically by qualified service personnel.
14. Removing any panel or cover, including the light cover, may expose live electrical circuits. Always unplug the dryer from the electrical supply before attempting any service.
15. Store all laundry chemicals and aids in a cool dry place according to the manufacturer's instructions. Make sure children cannot reach them.
16. To reduce the risk of fire, clothes, cleaning rags, mop heads and the like which have traces of any flammable substance, such as vegetable oil, cooking oil, petroleum based oils or distillates, waxes, fats, etc., must not be placed in the dryer. These items may contain some flammable substance(s) even after washing.
17. Combustible materials, gasoline, and other flammable vapors and liquids must not be stored near the dryer.
18. Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
19. Do not climb or sit on top of the dryer.
20. To reduce the risk of fire or electrical shock, DO NOT use an extension cord or an adapter to connect the dryer to the electrical power supply.
21. The dryer must only be used for its intended purpose.
22. Always check pockets and remove any objects. Cigarette lighters are particularly hazardous.
23. Do not operate until worn out power cords and/or loose plugs are replaced.
24. Do not operate the dryer if any guards and/or panels have been removed.
25. Do not operate the dryer if any parts are missing or broken.
26. Do not bypass any safety devices.
27. Do not use a plastic or non metal flexible duct with this dryer. Plastic or non metal flexible duct are a potential fire hazard.
28. Do not operate this dryer until you are sure that the dryer has been installed according to the INSTALLATION INSTRUCTIONS and that installation and grounding are in compliance with all local regulations and/or other applicable regulations and requirements.
29. Failure to install, maintain and/or operate the dryer according to the manufacturer's instructions may result in injury and/or damage.
30. BEFORE THE APPLIANCE IS REMOVED FROM SERVICE OR DISCARDED, REMOVE THE DOOR TO THE DRYING COMPARTMENT.
31. To avoid floor damage and mold growth, do not let spills or splashout cause standing water around or under the appliance.
32. No other fuel burning appliances shall be installed in the same closet as the dryer.
33. Removing any panel, including the round service panel in the front can expose sharp edges and points, electrical connections and hot surfaces.

Notes:

1. The IMPORTANT SAFEGUARDS and WARNINGS presented in this manual do not cover all possible conditions that may occur. Common sense, caution and care must be exercised when installing, maintaining or operating the dryer.
2. Always contact your dealer, distributor, service agent or the manufacturer about any problems or conditions that you do not understand.
3. Follow also the Safety Information in the INSTALLATION INSTRUCTIONS and the OPERATING INSTRUCTIONS.

GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a cord having an equipment grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

For the State of Massachusetts Installations:

1. Installation must be performed by a licensed plumber or gas fitter licensed by the state, province or region where this appliance is being installed.
2. Shut-off valve must be a "T" hand le gas cock.
3. Flexible gas connector must not be longer than 36 inches.

Improper connection of the equipment grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the dryer is properly grounded.
DO NOT modify the plug provided with the appliance if it will not fit the outlet have a proper outlet installed by a qualified electrician or exchange the cord with an appropriate one rated for the dryer.
