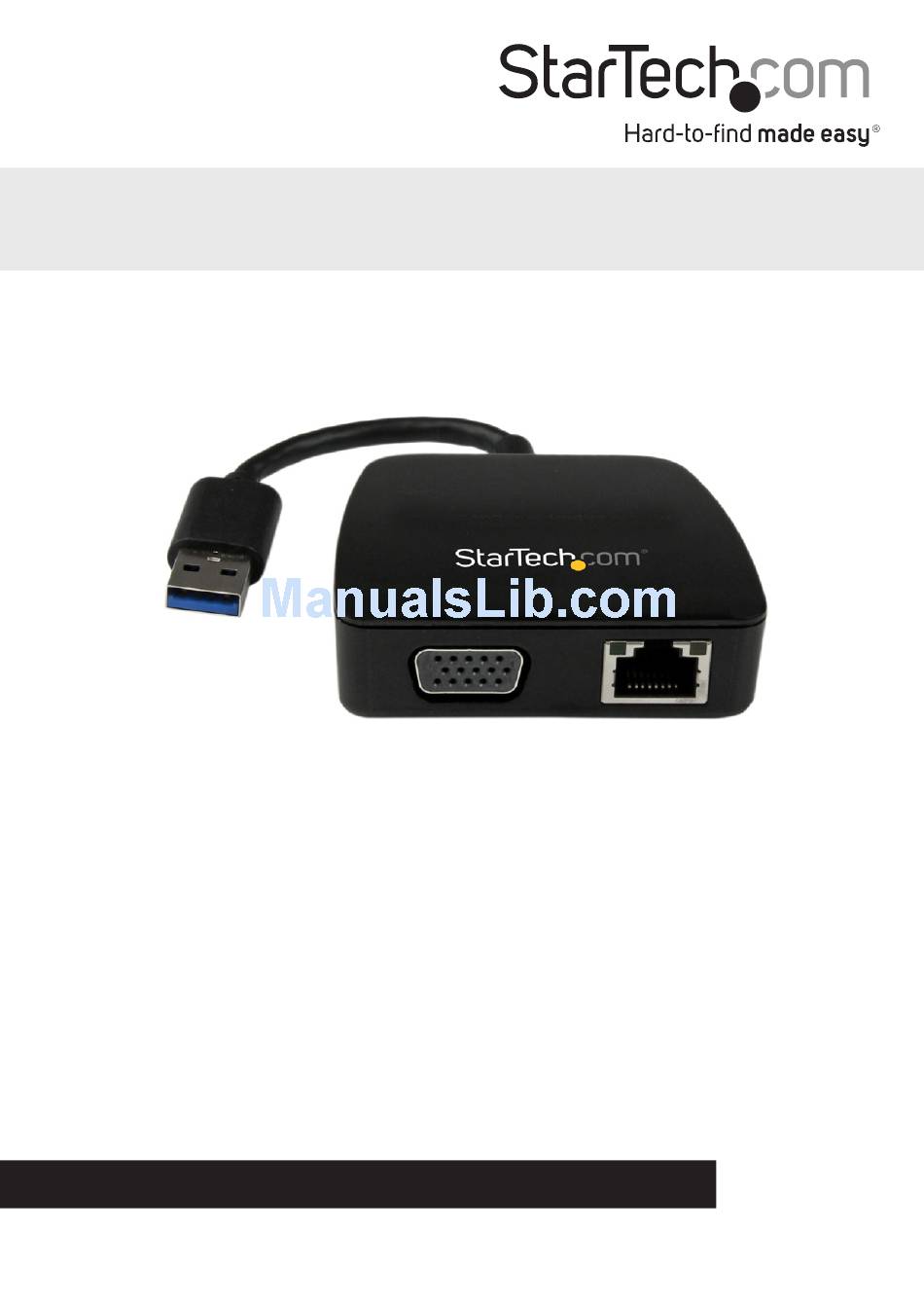

USB 3.0 Mini Docking Station Adapter
with Gigabit Ethernet and VGA
USB31GEVG
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/27/2014
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com USB31GEVG
Summary of Contents for StarTech.com USB31GEVG
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 08/27/2014...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Overview ..................1 Product Diagram ............................1 Installation ....................2 Driver Installation ............................2 Hardware Installation ..........................3 Verifying Installation ..........................4 Multiple Adapter Installation ........................ 5 Operation ....................5 Windows ............................... -
Page 4: Introduction
Introduction Packaging Contents • 1x USB 3.0 Mini Docking Station Adapter • 1x Driver CD • 1x Instruction Manual System Requirements • USB enabled computer system with an available USB 3.0 port • Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP SP3 (32), Mac OS® 10.6 and up (Tested up to 10.10) •... -
Page 5: Installation
Driver Installation process. Windows 1. Download the latest drivers from the www.startech.com website (recommended), or insert the included Driver CD into your computer’s CD/DVD-ROM drive. 2. If AutoPlay is enabled, select the “Open folder to view files” option when the dialog appears. -
Page 6: Hardware Installation
Mac OS 1. Download the latest drivers from the www.startech.com website (recommended), or insert the included Driver CD into your computers CD/DVD-ROM drive. 2. Browse to your CD/DVD drive location, or to the downloaded driver file location and open the DisplayLink “.dmg” install application, located in the “Mac” folder to start the installation process. -
Page 7: Verifying Installation
Verifying Installation Windows 1. From the main desktop or start menu, open the Device Manager by right-clicking on Computer, and then selecting Manage. In the Computer Management window, select Device Manager from the left window panel. (For Windows 8.1, right-click on the Start button and click Device Manager). -
Page 8: Multiple Adapter Installation
Multiple Adapter Installation Multiple USB 3.0 Mini Docking Station Adapters can be used on a single system. The number of adapters and the performance of each will depend entirely on your system specifications. 1. Complete the standard driver installation steps, up to when you plug in the first Mini Docking Station Adapter. - Page 9 1. From the taskbar, click the Show hidden icons arrow to show all available icons. 2. Click the DisplayLink® icon. You will see a “USB 3.0 to VGA and LAN Combo” option, selecting this display will extend a sub menu with the configurable options for the connected device.
-
Page 10: Mac Os
Screen Rotation This option allows you to change orientation in which the screen is viewed. The two most common types of orientation are portrait and landscape. Set as Main Monitor Selecting this option allows your computer to consider the monitor connected through the Mini Docking Station Adapter as your primary monitor. - Page 11 Using the Adapter in Extended or Mirror Mode By default the Mini Docking Station Adapter will be setup as an extended display. To change the display as a mirrored/cloned display, check the “Mirror Display” box on the “Arrangement” page for that monitors Displays settings window. To return the monitor to an extended display, uncheck this option.
-
Page 12: Specifications
Specifications Bus Type USB 3.0 Chipset ID DisplayLink - DL-3700N IEEE 802.3, IEEE 802.3u, IEEE 802.3ab Industry Standards USB 3.0 1 - USB 3.0 A (9 pin; SuperSpeed) Male 1 - VGA (15 pin; High Density D-Sub) Connector Type(s) Female 1 - RJ-45 Female Auto MDIX Compatible Networks... -
Page 13: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 14 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
