16

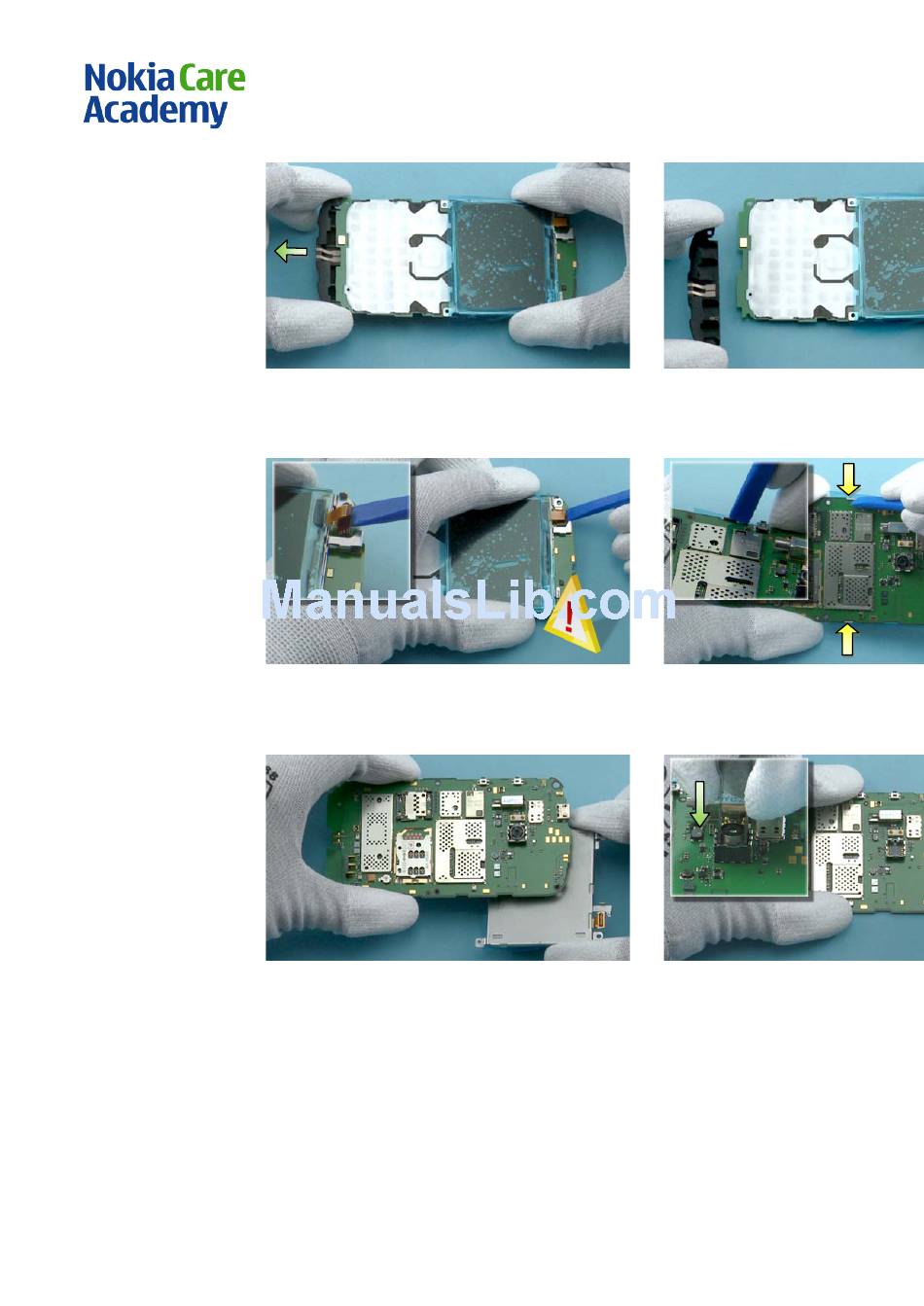

25) To release the MAIN ANTENNA ASSEMBLY, pull it
to the direction shown.
27) Use the SS-93 to open the LCD CONNECTOR.
Be careful not to damage the connector!
29) Separate the DISPLAY SUPPORT ASSEMBLY.
Conf idential | Copyright © 2011 NOKIA A ll rights reserved
Nokia E5-00
RM-632 / RM-634 / RM-699
Service Manual Level 1&2
26) Remove the MAIN ANTENNA ASSEM
28) Release the two clips holding the
SUPPORT ASSEMBLY with the SS-93.
30) Push the camera removal tool SS-
the camera retaining clips are release
SS-88 and remove the CAMERA MODUL
Version 3.0
