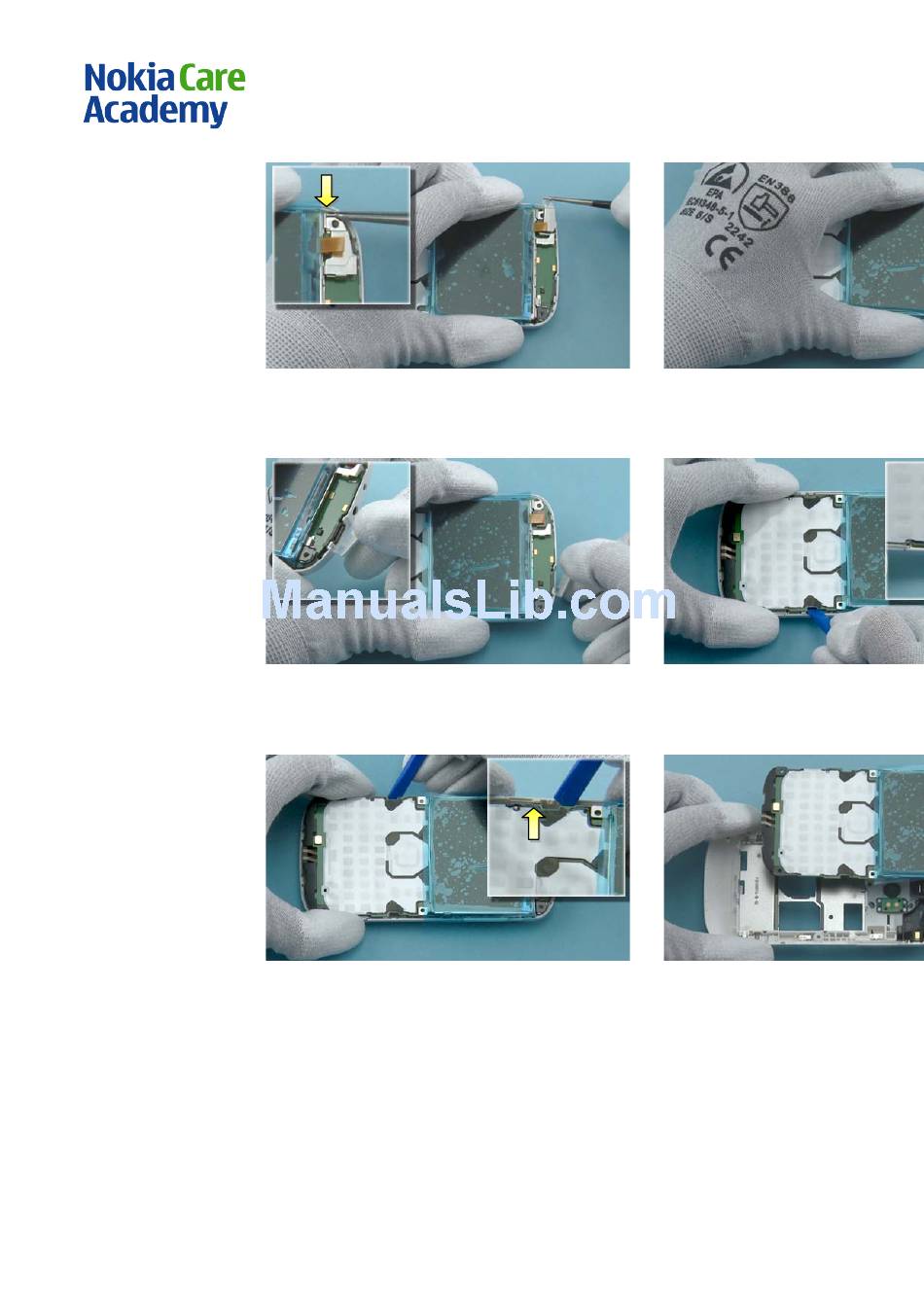

19) Release the clip holding the LOCKING PLATE
ASSEMBLY with the tweezers. Lift up the locking
plate as shown.
21) Open the USB PLUG.
23) ... and the second clip on the other side holding
the LIGHT SWAP PWB.
