QUICK
SETUP GUIDE
19" LED TV
NS-19E310NA15
Thank you
for purchasing this state-of-the-art
Insignia television. We hope you enjoy
the quality and reliability of this
television for years to come.
Included accessories
FIND YOUR
USER GUIDE ONLINE!
We are going green so a copy of your
User Guide is not provided in the box
but is available online.
Go to www.insigniaproducts.com,
then click Support & Service. Enter your
model number in the box under Manual,
Firmware, Drivers & Product Information,
then click .
START HERE

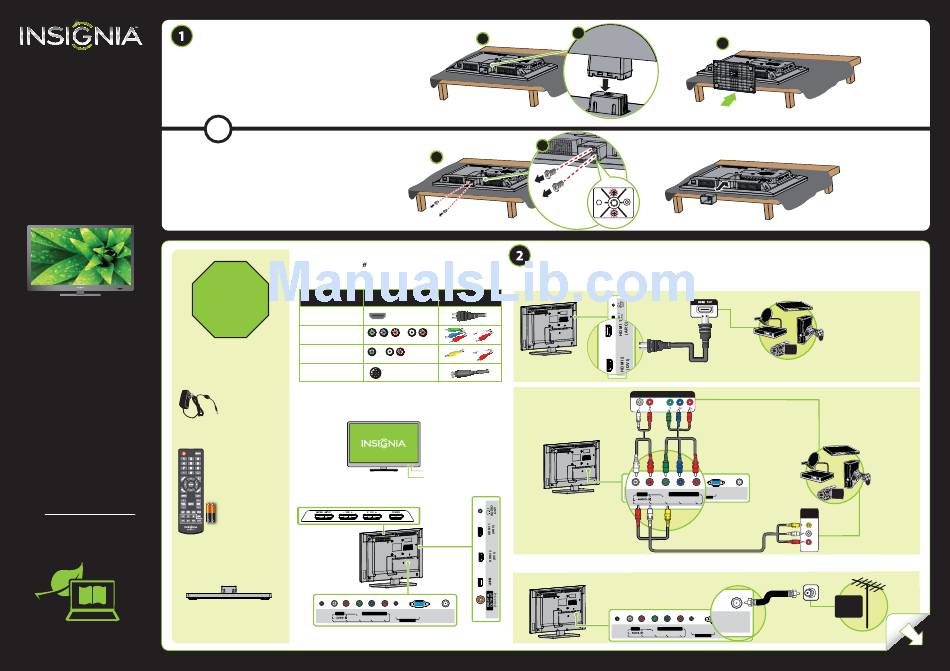

How do I attach the stand to my TV?
(not for wall mounting)
A Carefully place your TV face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
B Find the front of the TV stand, then slide the slot in the stand over the tab in
the stand column.
C Push the TV stand into the stand column until it snaps into place.
- OR -
How do I prepare my TV for wall mounting
(not for use with a TV stand)
A Carefully place your TV face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
B Remove the two screws that secure the stand column to the TV screen,
then remove the stand column.
C See the instructions that came with your wall mount for more informa-
tion about how to correctly mount your TV.
Which cables do you have?
Your TV has several di erent jacks for connecting devices. For the
STOP!
best video quality, use the best available connection. Use the cables
that came with your devices.
Do not plug your
power adapter in
VIDEO QUALITY
until all other devices
have been
BEST
connected.
BETTER
Component video and analog audio
GOOD
Composite video and analog audio (AV)
GOOD
Note: You can also connect a DVI device to your TV. See your online
User Guide for connection instructions.
Power adapter
Features
Front view
Remote control
and two AAA batteries
Back view
TV stand
AV IN COMPONENT IN
DC IN
VIDEO/Y P
(12V) B
Note: Images do not necessarily represent the exact design of your television.
A
B
A
MAKING CONNECTIONS
How do I watch TV (cable or satellite receiver) or connect a device such as a
DVD or Blu-ray disc player, game station, or camcorder?
JACK TYPE CABLE CONNECTOR
Using an HDMI cable (BEST)
HDMI video/audio
Coaxial video/audio
Using component cables (BETTER)
- OR -
Using an AV cable (GOOD)
Remote control sensor
Power indicator
How do I connect my TV to an antenna or cable wall jack?
PC/DVI VGA
ANT/
AUDIO
P
R CABLE IN DC IN
PC IN
(12V)
Before using your new product, please read these instructions to prevent any damage.
B
C
Front
+
+
AUDIO/VIDEO OUT Component cable option
PC/DVI VGA
AV IN COMPONENT IN
DC IN ANT/
AV IN COMPONENT IN AUDIO PC/DVI VGA
VIDEO/Y P P
DC IN (12V) B R CABLE IN
AUDIO
PC IN
VIDEO/Y P P
(12V) B R
PC IN
Note: Connect the yellow video
cable connector to the green
VIDEO/Y jack on the back of your TV.
PC/DVI VGA
AV IN COMPONENT IN
ANT/
AUDIO
P P
VIDEO/Y
B R CABLE IN
PC IN
AV IN COMPONENT IN PC/DVI VGA
DC IN ANT/
AUDIO
VIDEO/Y P P
(12V) B R CABLE IN
PC IN
Multi-purpose jacks: You can plug any
device that uses HDMI into either
HDMI jack. However, certain devices
must be connected to the ARC or DVI
jacks. See the instructions that came
with your ARC or DVI device.
Note: The component and AV jacks
are shared. This means you can
connect only one component or AV
device at a time. We suggest using
HDMI if your device supports it.
ANT/
CABLE IN
AUDIO/VIDEO
OUT
AV cable option
CABLE
OVER
