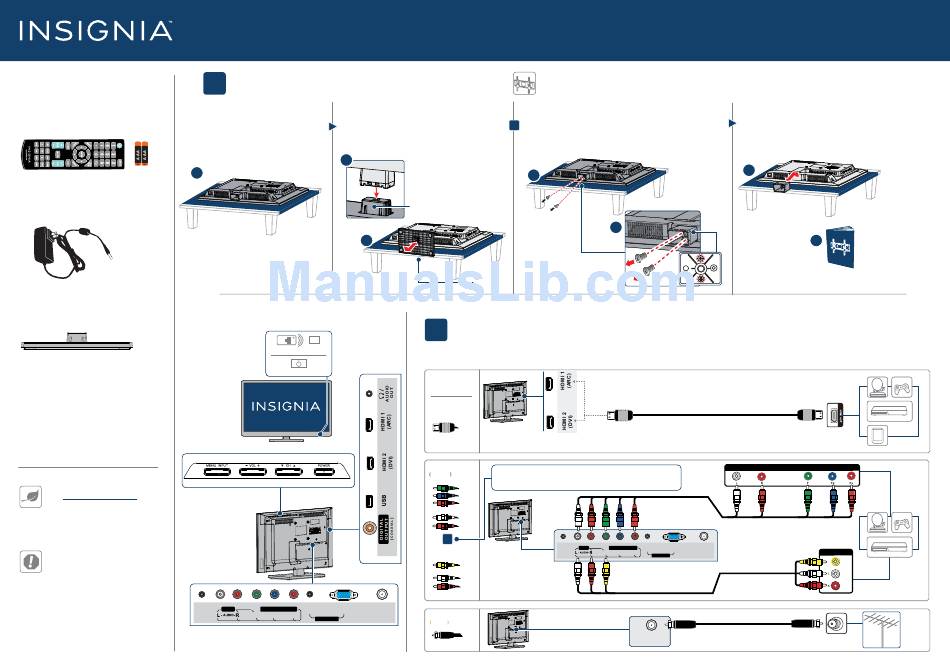

Insignia NS-19E310NA15 Quick Setup Manual

INCLUDED ACCESSORIES
Remote control and
two AAA batteries
A Carefully place your TV face-down on a
cushioned, clean surface.
+ +
A
Power Adapter
TV stand
FEATURES
FIND YOUR USER GUIDE ONLINE!
Go to www.insigniaproducts.com, then
click Support & Service. Enter
NS-19E310NA15 in the box under
Manual, Firmware, Drivers & Product
►
Information, then click .
STOP
Do not plug your power cord in until all
other devices have been connected.
DC IN
(12V)
1 START HERE
How do I attach the stand to my TV? (not for wall mounting)
You'll need: Soft surface.
B
Find the front of the TV stand, then slide the slot
in the stand over the tab in the stand column.
C
Push the TV stand into the stand column until it
snaps into place.
B
C
Remote control sensor
Power indicator
PC/DVI VGA
AV IN COMPONENT IN
ANT/
AUDIO
VIDEO/Y P P
B R CABLE IN
PC IN
Before using your new product, please read these
instructions to prevent any damage.
WALL MOUNT
How do I prepare my TV for wall mounting? (not for use with a TV stand)
You'll need: Soft surface and Phillips screwdriver
A
Carefully place your TV face-down on a cushioned,
OR
clean surface.
B Remove the two screws that secure the stand column
to the TV screen.
A
Front
Front
MAKING CONNECTIONS
2
How do I watch TV (cable, satellite, or antenna) or connect a device such as a DVD or Blu-ray disc player or game
console?
WHICH CABLES
DO YOU HAVE?
HDMI
(BEST)
Best video quality
COMPONENT
Note: The component and AV jacks are shared. This means you can connect
BETTER
only one component or AV device at a time. We suggest upgrading to HDMI
(BEST) if your device supports it.
OR
AV IN
AV DC IN
(GOOD)
(12V)
Note: Connect the yellow
video cable to the
green VIDEO/Y jack.
COAXIAL
AV IN
GOOD
DIGITAL L AUDIO R
- - VIDEO / Y P
B
OUTPUT
COMPONENT IN
(OPTICAL)
Quick Setup Guide
C
Remove the stand column.
D
See the instructions that came with your wall mount for
more information about how to correctly mount your TV.
C
B
+
+
Multi-purpose jacks: You can plug any device that uses HDMI into any HDMI jack. However,
certain devices must be connected to the ARC jack. See the instructions that came with your
ARC enabled device for more information.
AUDIO/VIDEO OUT
PC/DVI VGA
COMPONENT IN
ANT/
AUDIO
P P
VIDEO/Y B R CABLE IN
PC IN
P
R ANT/
CABLE IN
|
NS-19E310NA15
19" 720p. 60Hz LED TV
Your TV has four VESA mounting
D
holes on the back. If you attach a
wall-mount bracket to the back of
your TV, the bracket must be
securely attached, using all four
holes. If you do not use all four
mounting holes, your TV may fall and cause property damage
or personal injury. See the documentation that came with
your wall mount for complete mounting instructions.
AUDIO/VIDEO OUT
CABLE
