Summary of Contents for Eve Audio SC204

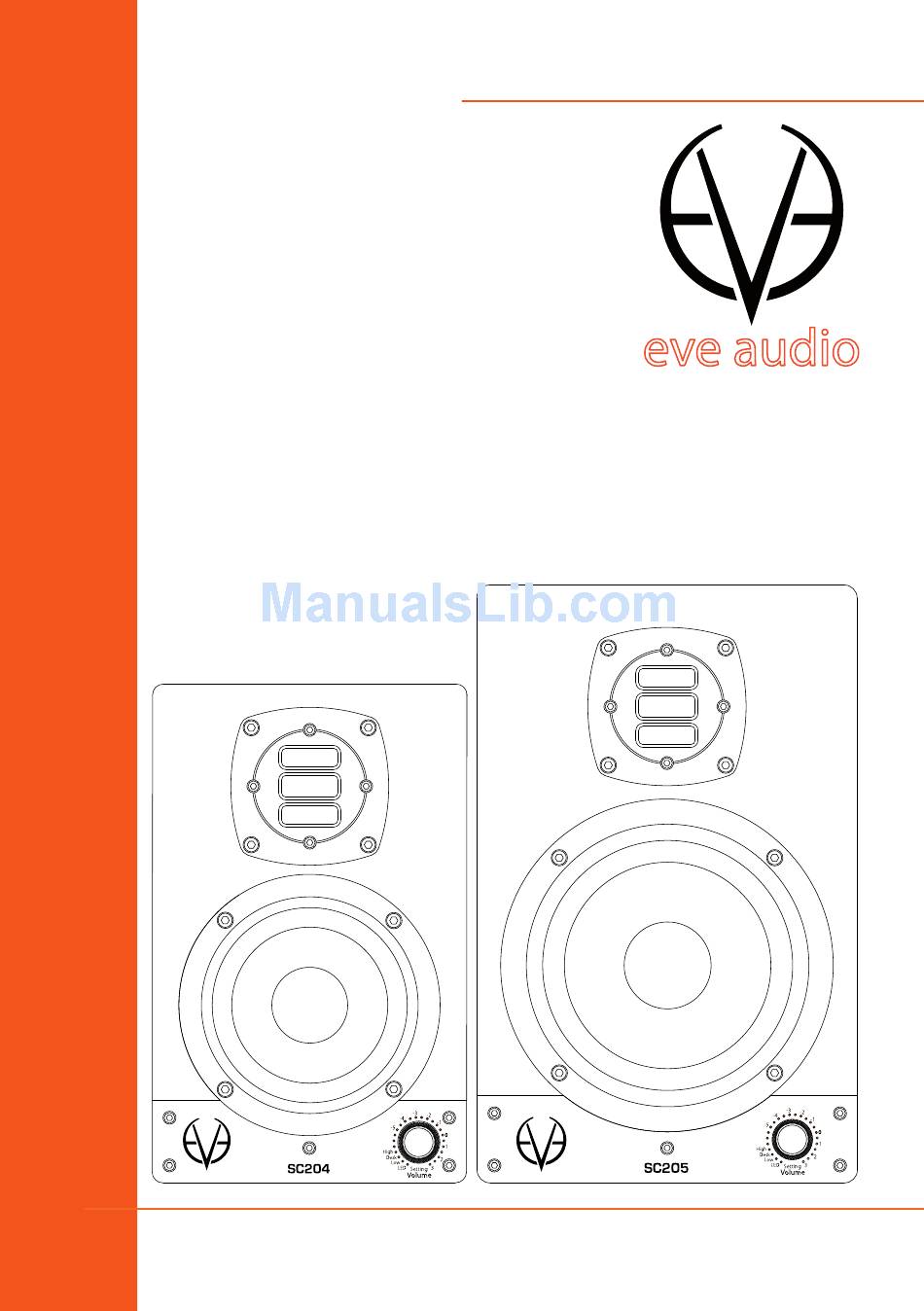

- Page 1 AUDIO PRODUCT MANUAL AUG 2013 SC204 SC205...
-
Page 2: Table Of Contents
SC204 SC205 Audio product manual SAFETY INSTRUCTIONS TABLE OF CONTENTS INTRODUCTION ................4 To avoid the risk of electrical shock, do not attempt to open the unit. There are no user-serviceable parts inside. Do not attempt to service the QUICK START .................5 equipment yourself. -
Page 3: Introduction
50 W amplifiers and high-resolution DSP level should be as low as possible. technology. The threads on the bottom allow the SC204 and SC205 to be mounted on 2.3. Powering On any commercial microphone or loudspeaker stand, while the brackets on Engage the Power switch on the rear side of the loudspeaker to turn it on the rear side allow them to be wall mounted. -
Page 4: Operation
The Grid Standby Mode. The volume will decrease gradually while the LED ring In order to protect the tweeter, your EVE Audio monitors are supplied with lights up once around the Volume control. Afterwards, the LED on the right a metal grid, which has no impact on the sound. The grid is attached to the end will light dimly and the power consumption is reduced to 1 watt. -
Page 5: Volume Mode
-8 dB 3.7. Filters The filters of the EVE Audio monitors were specially developed to offer you the possibility of adjusting your monitoring system to the characteristics of your room. These filters help correct the alterations to the frequency 1 Step = 2 dB 1 Step = 0.5 dB... -
Page 6: High Filter
The Desk Filter has two functions. When turned down it acts as a narrow- If you have a very dead room, it might be wise to boost the high frequencies band EQ set to 200 Hz (SC204) or 180 Hz (SC205). in order to have a more balanced overall sound. When the listening position... -
Page 7: Led Mode
• Maximal boost is +3 dB and maximal attenuation is –5 dB. • Refer to the chapter on POSITIONING to set the filters of your EVE Audio In order to prevent switching noise with your monitoring system keep in monitors effectively. -
Page 8: Positioning
“Bottom Side”) or mount them on a wall by means of the M6 brackets on the rear. If the room conditions force you to place the SC204 or SC205 monitors in horizontal position, make sure that the tweeter is pointing to the outside and that the loudspeakers are angled towards the listening position. -
Page 9: Height And Distance
The ideal distance between the monitors and the listening position is 0.7- allow you to set the crossover frequency for the satellite loudspeakers and 1.5 m (2.2-4.9 ft) for the SC204 and 0.7-2 m (2.2-6.5 ft) for the SC205. the subwoofer. These values are only meant as a reference and depend a lot on the The positioning of the two satellites should be done in the same manner as characteristics of the room. -
Page 10: Mixer/Workplace Reflections
Ideally, a 5.1 system would comprise five EVE Audio SC205 or SCC204 and If this is the case with your setup, use the Desk Filter of your EVE Audio a TS107 or TS108 subwoofer. Following combination is also possible: Front: monitors to reduce the impact of the reflections from the desk or mixer. -
Page 11: Technical Specifications
Tweeter AMT RS1 AMT RS1 declare under our sole responsibility that the products: Woofer 100mm / 4” 130mm / 5” SC204 and SC205 Crossover frequency 3,000Hz 3,000Hz Maximum SPL @ 1m 96dB 101dB comply with the following directives and standards:... -
Page 12: Warranty
The client should always keep the original packaging of any EVE Audio product. Only products with original packaging are eligible for warranty service. If the product is not packaged in its original box, EVE Audio will not be liable for any damages occurred during transit. - Page 13 . w w w. e v e - a u d i o. c o m . facebook.com/EveAudio . twitter.com/EveAudio Aug 2013 © EVE Audio. All rights reserved. EVE Audio reserves the right to make changes in or additions to the information provided at any time.
