- Page 1 AUDIO PRODUCT MANUAL NOV 2015 TS110 TS112...
-
Page 2: Safety Instructions
TS110 TS112 SAFETY INSTRUCTIONS READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Page 3 Audio product manual To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus.
- Page 4 TS110 TS112 WARNING: This product is intended to be operated ONLY from the AC Voltages listed on the back panel or included power supply of the product. Operation from other voltages other than those indicated may cause irreversible damage to the product and void the products warranty. The...
-
Page 5: Table Of Contents
Audio product manual TABLE OF CONTENT INTRODUCTION ................6 QUICK START .................7 2.1. First Steps ..........................7 2.2. Subwoofer Connection ....................7 2.3. Powering On ........................7 OPERATION ...................8 3.1. First Steps ..........................8 3.2. Operating Modes ......................9 3.3. Powering on/off: Standby Mode .................9 3.4. Volume Mode ........................9 3.5. -
Page 6: Introduction

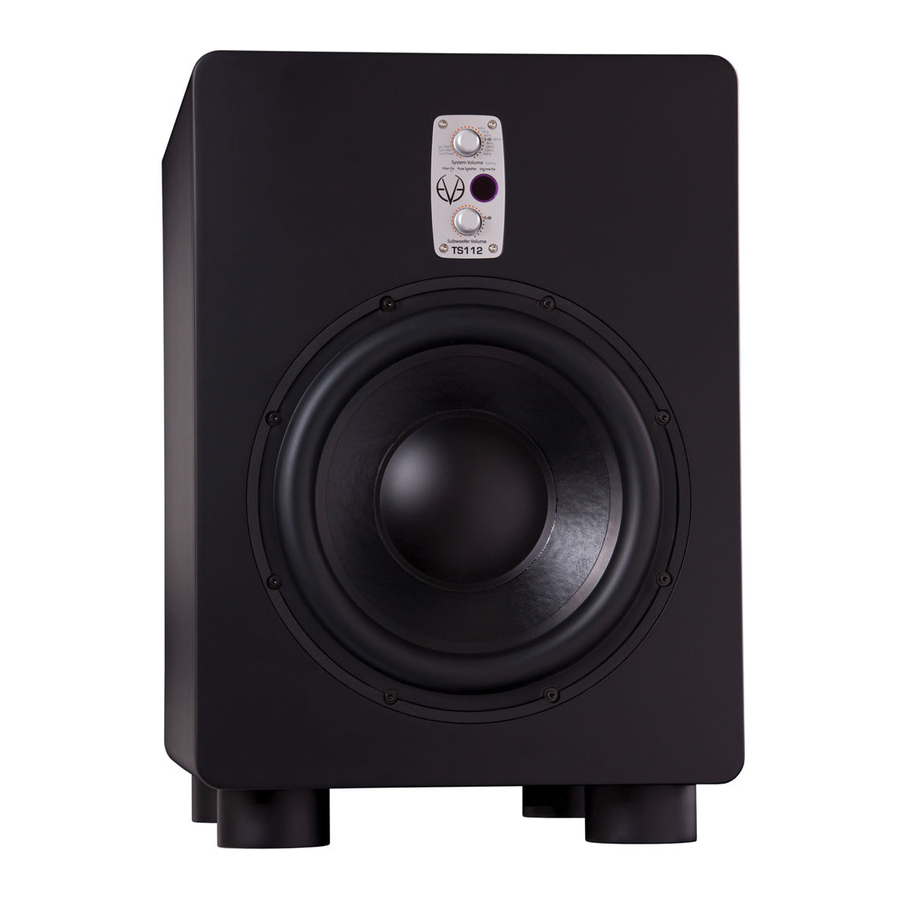

Chassis (10” or 12”), PWM amplifiers (250 and 400 Watt), accurate DSP technology and IR remote control. We wish you a lot of fun with your EVE Audio subwoofer. If you have any questions regarding our products, do not hesitate to contact your nearest dealer or get directly in touch with us... -
Page 7: Quick Start
Audio product manual QUICK START If you already have experience with studio subwoofers, the Quick Start guide ought to be more than enough to get you started. For unexperienced users we recommend reading the whole user’s manual in order to prevent any misuse. 2.1. -
Page 8: Operation
TS110 TS112 OPERATION 3.1. First Steps Rear Connections & DIP Switches Check the package components (loudspeaker, remote control + batteries, user’s manual, power cord). Check the voltage setting (see “Mains Voltage Selector”). Check the setting of the DIP Switches (variable). -
Page 9: Operating Modes
Audio product manual 3.2. Operating Modes Standby mode | Volume mode (-10 dB) | Settings menu (Sub Filter @ 100 Hz) 3.3. Powering on/off: Standby Mode Press and hold the System Volume control three seconds in order to put the subwoofer in Standby mode. The total volume (subwoofer + satellites) will decrease gradually while the LED ring lights up once around the System Volume control. - Page 10 TS110 TS112 -20 dB 1 Step = 0.5 dB (1 LED = 4 Steps) 1 Step = 1 dB -12 dB (1 LED = 4 Steps) 1 Step = 0.5 dB (1 LED = 2 Steps) -48 dB -8 dB 1 Step = 2 dB 1 Step = 0.5 dB...
-
Page 11: Settings Menu
Volume mode. 3.6. Filter The filters of the EVE Audio subwoofer were specially developed to offer you the possibility of adjusting your subwoofer to the characteristics of your system. These filters help control the overlapping of frequencies between the subwoofer and the satellites. -
Page 12: Sub Filter
TS110 TS112 filter to avoid the overlapping of frequencies between the subwoofer and the satellites and to clean up the sound image in the lower end. Generally speaking, the Sat. Filter should be engaged (default setting). If inactive, for example, when the satellite speakers cannot reproduce the frequency range below 80 ... -
Page 13: Saving Your Settings
3.12. Remote Control Your EVE Audio subwoofer comes with an IR remote control that allows you to control almost all functions available on the front panel. In order to start using the remote control, you must first insert the supplied batteries in the battery compartment. -
Page 14: Power Switch
TS110 TS112 • Pure Satellite Button Use the Pure Satellite button to mute the subwoofer (Mute function: see Subwoofer Mute) so that the audio signal is transmitted without any filtering to the satellite speakers. This allows you to switch easily between satellites + subwoofer mode and pure satellite mode (without subwoofer and without any filtering). -
Page 15: Dip Switches
The Mains Voltage Selector allows you to adjust the operating voltage of your EVE Audio subwoofer to the local power grid. Set it to “230” if your local power grid is 220-240 volts or “115” if it is 110-120 volts. - Page 16 TS110 TS112 • Turn the subwoofer off. • Disconnect it from the power grid. • Detach the IEC connector from the unit. • Remove the fuse. • Change the fuse. The replacement fuse should comply with the values stated on the subwoofer.
-
Page 17: Positioning
0.5 m (19 inches) to the walls, in order to avoid low frequency boosting. 4.2. Height and Distance Your EVE Audio subwoofer should be placed on the floor. The surface where it stands ought to be as firm and stable as possible, in order to prevent surface vibrations from generating unwanted resonances. -
Page 18: Stereo Setup + Subwoofer (2.1)
TS110 TS112 4.3. Stereo Setup + Subwoofer (2.1) In such a setup, the subwoofer is fed by the stereo signal source. The subwoofer filters the low frequency components of the stereo channels and sums them to produce a mono signal, which it then reproduces. The high frequencies are forwarded to the full-range satellite speakers. -
Page 19: Multichannel Setup (5.1)
Audio product manual 4.4. Multichannel Setup (5.1) The most common 5.1 systems consist of three front channels (left, right and center), two surround channels (left/right) and a subwoofer for the low frequencies. The speakers form a circle around the listening position. Refer to the table above to determine the best 5.1 setup for your room. -
Page 20: Room Acoustics
TS110 TS112 4.5. Room Acoustics In order for the described measures to work effectively, we recommend that you put special attention to the room acoustics. The size, contents, wall parallelism, proportion, and reflective behavior of the room, as well as the corners, the building materials and their characteristics play a very important role in the acoustics of a room. -
Page 21: Technical Specifications
Audio product manual TECHNICAL SPECIFICATIONS Product TS110 TS112 Description Subwoofer Subwoofer Dimensions 330 x 485 x 430 390 x 560 x 508 (WxHxD) (mm) Dimensions 12.99 x 19.09 x 16.93 15.35 x 22.05 x 20 (WxHxD) (“) Frequency Range 24 - 300Hz... -
Page 22: Compliance
EVE Audio GmbH, with registered office in Ernst Augustin Str. 1a, 12489 Berlin, Germany, herewith declare that the TS110 and TS112 comply with the following norms: EC Norms: EN 60065: 2002 + A1:2006 + A11:2008 + A2:2010 + A12:2011 EN 50564: 2011... -
Page 23: Warranty
Always keep the original packaging of any EVE Audio product: Only products with original packaging are eligible for warranty service. If the product is not packaged in its original box, EVE Audio will not be liable for any damages occurred during transit. - Page 24 . w w w. e v e - a u d i o. c o m . facebook.com/EveAudio . twitter.com/EveAudio Nov 2015 © EVE Audio. All rights reserved. EVE Audio reserves the right to make changes in or additions to the information provided at any time.
