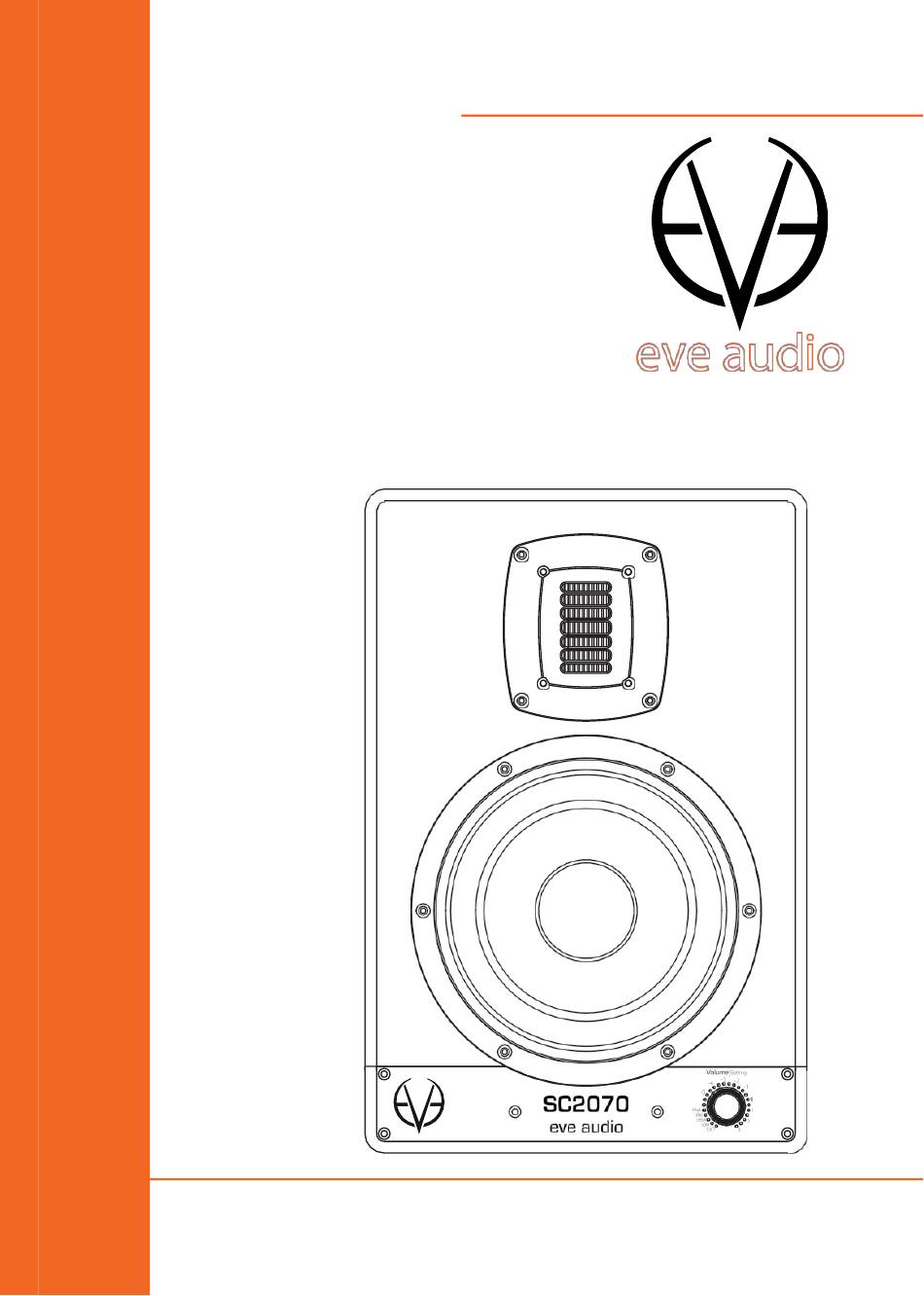

- Page 1 AUDIO PRODUCT MANUAL AUDIO 产品说明书 Dec 2022 2022年12月 SC2070...
- Page 2 SAFETY INSTRUCTIONS 安全须知 To avoid the risk of electrical shock, do not attempt to open the unit. There are no user-serviceable parts inside. Do not attempt to service the equipment yourself. In case of problems, please contact your local dealer or distributor.
-
Page 3: Table Of Contents
Audio product manual Audio 产品手册 TABLE OF CONTENTS 目录内容 .................. 4 INTRODUCTION 介绍 QUICK START ................5 快速启动 2.1....................5 First Steps 初始步骤 2.2. Speaker Connection ................5 扬声器连接 2.3. Powering On ......................5 开机 OPERATION ..................6 操作 3.1......................6 First Steps 初始步骤... -
Page 4: Introduction

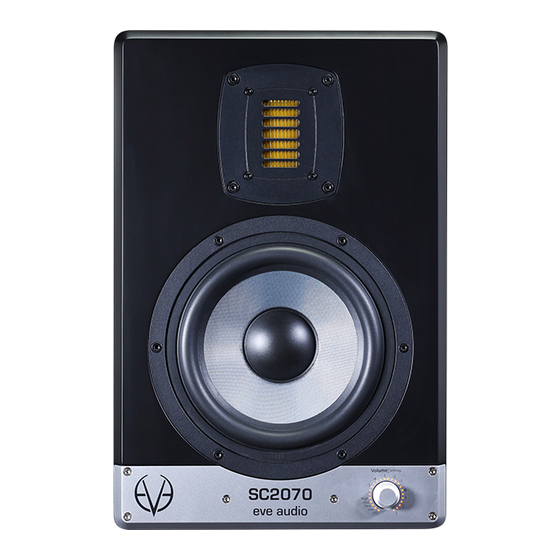

使用最优质的元件是我们生产的第一要求，我们坚信这是制造最高质量产品的唯一途径。 You have chosen a loudspeaker from our Silvercone SC series. The SC2070 was conceived as a two-way system. The features allow multiple applications for use in professional recording studios as well as home studios. -
Page 5: Quick Start 快速启动
2.QUICK START 快速启动 If you already have experience with studio monitors, the Quick Start guide ought to be more than enough to get you started. 假如您有使用录音室监听的经验，那么快速启动指南应该可以让您获得除简单操作以外更多的内容。 For unexperienced users we recommend reading the whole user ’s manual in order to prevent any misuse. -
Page 6: Operation 操作
Analog Input 模拟输入 Unbalanced 非平衡 Volume 音量 Filter 滤波器 Max. Input 最大输出 not used 未使用 locked 锁定 variable 可变 Balanced 平衡 Rear connectors & DIP switches 后面板的连接器和DIP开关 Check the package components (loudspeaker, user’s manual, power cord, grid, rubber feet). 检查包装内的原件（音箱、用户手册、电源线、橡胶脚垫）。 Check the voltage setting (see “Mains Voltage Selector”). -
Page 7: Operating Modes 运行模式
EVE Audio product manual EVE Audio 产品手册 Operating Modes 运行模式 Standby Mode | Volume Mode (-10dB) | Setting Menu (Low filter @ -2dB) 待机模式|音量模式（-10dB）|设置菜单（低通滤波@-2dB） 3.3 Powering on/off: Standby Mode 开/关机：待机模式 Press and hold the control three seconds in order to put the monitor in Standby Mode. The volume will decrease gradually while the LED ring lights up once around the Volume control. - Page 8 •Volume adjustment 音量调整 Turn the knob to adjust the volume. Depending on the LED mode selected (see LED Mode), the volume will be displayed as a dim/bright circle or as a dim/bright point. 转动音量旋钮对音量进行调整。根据所选择的 LED 模式（详见“LED 模式”），音量将会显示为微暗 /明亮的一圈或者是昏暗/明亮的点。 The control’s response curve is not linear. The increments become finer as the volume increases: -80dB (minimum) to -48dB: -48dB to -20dB: -20dB to 0dB (maximum):...
-
Page 9: Settings Menu
音量模式。 3.6 Filters 滤波器 The filters of the EVE Audio monitors were specially developed to offer you the possibility of adjusting your monitoring system to the characteristics of your room. EVE Audio监听的滤波器是专门根据房间的特点，提供调整监听系统的可能性而开发的。 These filters help correct the alterations to the frequency response produced by the room acoustics and listening distance. -
Page 10: High Filter 高通滤波器
If the low frequencies are boosted by the room, you can attenuate them with the Low-Shelf Filter. The reasons for this boost could be the room modes or the loudspeakers being too close to the walls. In the same way, if the low frequencies are to weak, you can boost them to balance the frequency response. -
Page 11: Desk Filter 桌面滤波器
The following applies to the Low, High and Desk filters: ！ •Every step represents a 0.5dB increment. •Maximal boost is +3dB and maximal attenuation is -5dB. •Refer to the chapter on POSITIONING to set the filters of your EVE Audio monitors effectively. 以下内容适用于低、高和桌面滤波器： •每一步（的距离）代表0.5dB 的增量。 •最大的提升是+3dB，最大的衰减是-5dB 。... -
Page 12: Saving Your Settings 保存设置
Bright Ring 亮环 All LEDs up to the selected volume level light up brightly. The louder the signal, the longer the brightly lit-up ring. 所选的音量电平的 LED 会亮起来。信号越强，灯亮范围越大。 Bright Point 亮点 Only the LEDs corresponding to the selected volume level light up brightly. The louder the signal, the further up the brightly lit-up point moves. -
Page 13: Dip开关
3.14 DIP Switches DIP开关 On the rear panel of your EVE Audio monitors you will find three DIP Switches. These allow you to secure your loudspeaker settings to prevent them from being changed inadvertently. 在EVE Audio 监听后面板上，有三个 DIP 开关。这些可以保护你的扬声器设置，以防止不经意间 地改变。... -
Page 14: Positioning 摆位
我们建议，摆放位置与墙壁保持至少0.5米（19英寸）的距离，以避免低频提升。 EVE Audio monitors can also be flush-mounted in a wall, in which case there should be enough air flow. This is important to keep the electronic components cool but also to allow for the best performance of the bass reflex ports. -
Page 15: Height And Distance
4.2 Height and Distance 高度和距离 The tweeter of your EVE Audio monitors should be ideally placed at the same height as your ears. If this is not possible tilt the monitors so that the tweeter is directed to your ears. -
Page 16: Stereo Setup + Subwoofer (2.1)
这样的设置中，超重低音炮由立体声信号源供给。低音炮过滤立体声音轨的低频，并将其相加，产生一个 单声道信号，然后进行重现。高频会送到全音域卫星扬声器系统。 Ideally, such a system would comprise two EVE Audio SC2070 monitors plus one EVE Audio TS110 or TS112 subwoofer, or even two TS108 subwoofers. All these subwoofers allow you to set the crossover frequency for the satellite speakers and the subwoofer. -
Page 17: Multichannel Setup (5.1)
(left/right) and a subwoofer for the low frequencies. The speakers form a circle around the listening position. 最常见的 5.1 系统，是由三个前置声道（左、右、中央）、两个环绕声道（左/右）和一个用于低频的重低 音炮组成的。扬声器周围呈圆形环绕聆听。 Ideally, a 5.1 system would comprise five EVE Audio SC2070 and a TS110 or TS112 subwoofer. Other combinations are also possible. 理想情况下，一个5.1系统需要包括五个EVE Audio SC2070和一个TS110或TS112重低音扬声器。其他组合也是... -
Page 18: Mixer/Workplace Reflections
Especially in the low-mid frequency range. 无论监听是在带有调音台和电平表的录音室中使用，还是在桌面环境中使用，硬表面都会出现烦人的反射， 改变扬声器的自然再现。特别是在中低频范围。 If this is the case with your setup, use the Desk Filter of your EVE Audio monitors to reduce the impact of the reflections from the desk or mixer. 如果这正是你的设置情况，请使用EVE Audio监听的桌面滤波器，可以减少桌面或调音台的反射。... -
Page 19: Room Acoustics
EVE Audio product manual EVE Audio 产品手册 4.7 Room Acoustics 房间声学 In order for the described measures to work effectively, we recommend that you put special attention to the room acoustics. 为了使所述方法有效地发挥作用，我们建议要特别关注房间的声学效果。 The size, contents, wall parallelism, proportion, and reflective behavior of the room, as well as the corners, the building materials and their characteristics play a very important role in the acoustics of a room. -
Page 20: Technical Specifications 技术参数
5 TECHNICAL SPECIFICATIONS 技术参数 Product SC2070 产品 Description 描述： 2-Way Monitor Dimensions (WxHxD) (mm) 230 x 345 x 304 体积（WxHxD）（毫米）： Dimensions (WxHxD) (“) 体积（WxHxD）（英寸）：9.05 x 13.58 x 11.96 Free-field frequency range (-3dB) 38Hz - 25kHz 消声室频率范围： Tweeter 高音单元： AMT TW-RS7 Woofer 165mm / 6.5”... -
Page 21: Declaration Of Conformity
EVE Audio product manual EVE Audio 产品手册 6. DECLARATION OF CONFORMITY 符合标准声明 我们 EVE Audio GmbH EVE Audio GmbH whose registered office is situated at 公司注册地址位于 Ernst Augustin Str. 7, 12489 Berlin, Deutschland declare under our sole responsibility that the SC2070 product 德国柏林恩斯特奥古斯汀大街... -
Page 22: Warranty 保修
The client should always keep the original packaging of any EVE Audio product. Only products with original ▷ packaging are eligible for warranty service. If the product is not packaged in its original box, EVE Audio will not be liable for any damages occurred during transit. - Page 23 . facebook.com/EveAudio . twitter.com/EveAudio Jul 2022 © EVE Audio. All rights reserved. EVE Audio reserves the right to make changes in or additions to the information provided at any time. 2022 年 07 月份 © EVE Audio 版权所有 EVE Audio 保留更改所有信息的权利。...
