EVE
AUDIO PRODUCT MANUAL
APR 2021
SC4070

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC4070 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Eve Audio SC4070

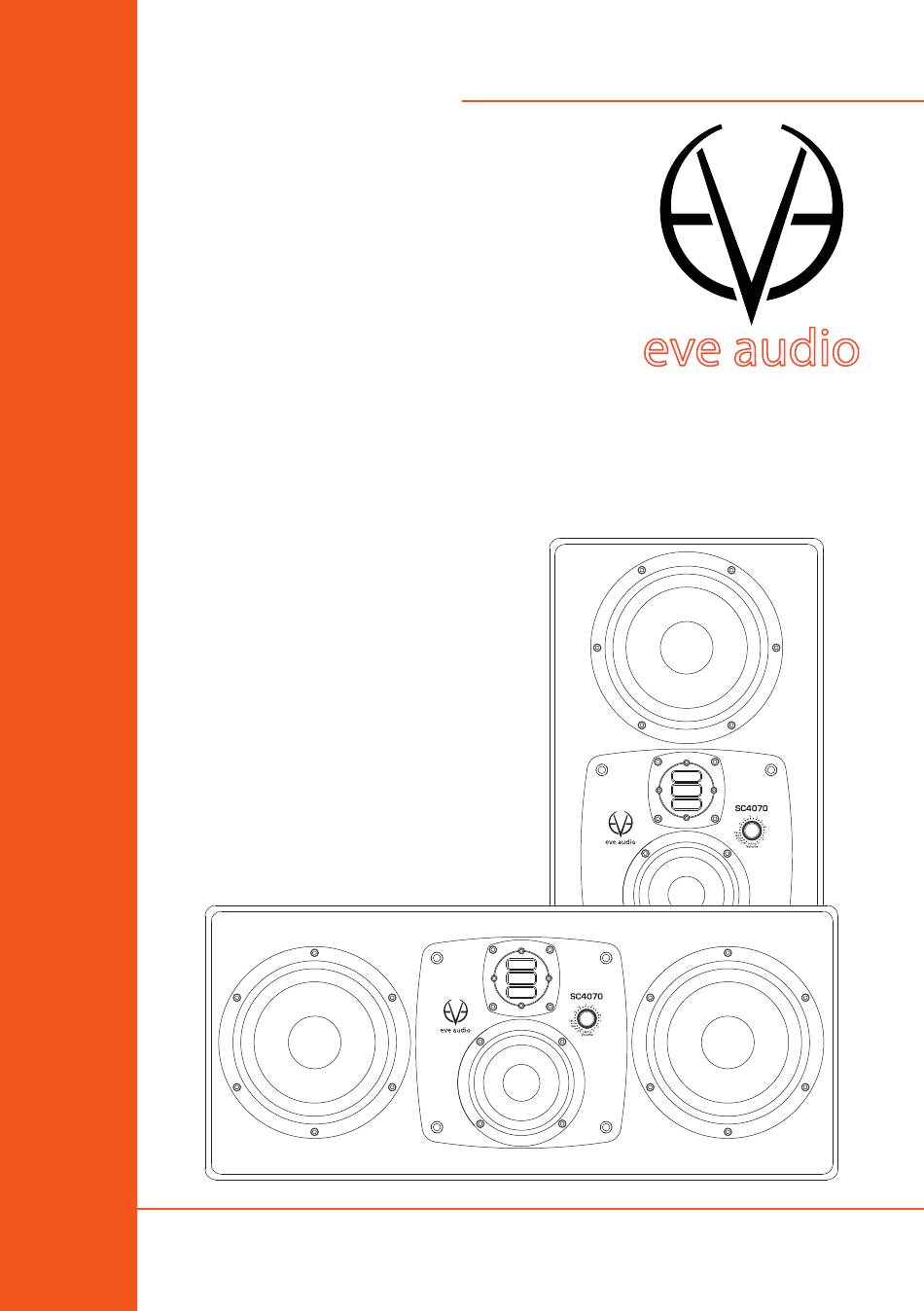

  • Page 1 AUDIO PRODUCT MANUAL APR 2021 SC4070...
  • Page 2 SC4070 SAFETY INSTRUCTIONS To avoid the risk of electrical shock, do not attempt to open the unit. There are no user-serviceable parts inside. Do not attempt to service the equipment yourself. In case of problems, please contact your local dealer or distributor.
  • Page 3: Table Of Contents

    Audio product manual TABLE OF CONTENTS INTRODUCTION ................4 QUICK START .................5 2.1. First Steps ..........................5 2.2. Speaker Connection ......................5 2.3. Powering On ........................5 OPERATION ...................6 3.1. First Steps ..........................6 3.2. Horizontal/Vertical Orientation ..................7 3.3. The Grid ..........................8 3.4. Operating Modes ......................8 3.5.
  • Page 4: Introduction

    DSP technology plus powerful and efficient amplifiers. We wish you a lot of fun with your EVE Audio monitors. If you have any questions regarding our products, do not hesitate to contact your nearest dealer or get directly in touch with us... We will be more than happy to help you out! All the best from Berlin.
  • Page 5: Quick Start

    Audio product manual QUICK START If you already have experience with studio monitors, the Quick Start guide ought to be more than enough to get you started. For unexperienced users we recommend reading the whole user‘s manual in order to prevent any misuse. 2.1.
  • Page 6: Operation

    SC4070 OPERATION 3.1. First Steps Rear Connections & DIP Switches Check the package components (loudspeaker, user‘s manual, power cord, grille, rubber feet); Check the voltage setting (see „Mains Voltage Selector“). Check the setting of the DIP Switches (variable). Connections: there are two input connectors on the rear side. These allow the connection of balanced sources with XLR connectors or unbalanced sources with RCA connectors.
  • Page 7: Horizontal/Vertical Orientation

    Audio product manual 3.2. Horizontal/Vertical Orientation The SC4070 can be used in horizontal or vertical position thanks to the incorporated swiveling „Mid/High Silver Plate.“ By default, your monitor is adjusted to be placed horizontally. To use it in vertical position, turn the tweeter/mid-driver section 90º...
  • Page 8: The Grid

    SC4070 3.3. The Grid In order to protect the tweeter, your EVE Audio monitors are supplied with a metal grid, which has no impact on the sound. The grid is attached to the tweeter by means of magnetic attraction. Be careful not to damage the folded tweeter diaphragm when placing the grid: Wrong grid position <...
  • Page 9: Volume Mode

    Audio product manual Standby mode. The volume will decrease gradually while the LED ring lights up once around the Volume control. Afterwards, the LED on the right end will remain dimly lit and the power consumption is reduced to 1 watt. To exit the Standby mode press briefly the Volume control once again.
  • Page 10: Settings Menu

    Volume mode. 3.8. Filters The filters of the EVE Audio monitors were specially developed to offer you the possibility of adjusting your monitoring system to the characteristics of your room. These filters help correct the alterations to the frequency response produced by the room acoustics and listening distance.
  • Page 11: Low Filter

    Audio product manual 3.9. Low Filter The Low-Shelf Filter allows you to boost or attenuate frequencies below 300 Hz in 0.5 dB steps. Use this filter whenever the acoustics of your room cause problems in the low frequency range. If the low frequencies are boosted by the room, you can attenuate them with the Low-Shelf Filter.
  • Page 12: Mid Filter

    SC4070 is too close to the loudspeakers or the room has reflective surfaces, it is reasonable to attenuate the high frequencies. 3.11. Mid Filter The Mid Filter is a bell filter with 1 kHz center frequency. It allows you to boost or cut the mid range up to +/-3 dB in 0.5 dB steps.
  • Page 13: Led Mode

    The following applies to the Low, High and Desk filters: • Every step represents a 0.5 dB increment. • Maximal boost is +3 dB and maximal attenuation is –5 dB. • Refer to the chapter on POSITIONING to set the filters of your EVE Audio monitors effectively. 3.13.
  • Page 14: Dip Switches

    The Mains Voltage Selector allows you to adjust the operating voltage of your EVE Audio monitors to the local power grid. Set it to “230” if your local power grid is 220-240 volts or “115” if it is 110-120 volts.
  • Page 15: Power Connector (Iec)

    3.18. Power Connector (IEC) Use the power cord supplied to connect your EVE Audio monitors to the power grid. The IEC connector includes an integrated fuse. If your EVE Audio monitors stop working and the fuse seems to be the problem, proceed as follows: •...
  • Page 16: Height And Distance

    4.2. Height and Distance The tweeter of your EVE Audio monitors should be ideally placed at the same height as your ears. If this is not possible tilt the monitors so that the tweeter is directed to your ears.
  • Page 17: Stereo Setup + Subwoofer (2.1)

    The high frequencies are forwarded to the full-range satellite speakers. Ideally, such a system would comprise two EVE Audio SC4070 monitors plus an EVE Audio TS110 or TS112 subwoofer. These subwoofers allow you to set the crossover frequency for the satellite loudspeakers and the subwoofer.
  • Page 18: Multichannel Setup (5.1)

    (left/right) and a subwoofer for the low frequencies. The speakers from a circle around the listening position. Ideally, a 5.1 system would comprise five EVE Audio SC4070 monitors plus an EVE Audio TS110 or TS112 subwoofer. However, you might also want to consider the following combinations: Front: SC4070, Center: SC4070, Rear: SC307.
  • Page 19: Mixer/Workplace Reflections

    Especially in the low-mid frequency range. If this is the case with your setup, use the Desk Filter of your EVE Audio monitors to reduce the impact of the reflections from the desk or mixer. 4.7.
  • Page 20 SC4070 • “Recording Studio Design” by Philip Newell. ISBN: 0-240-51917-5 • “Home Recording Studio – Build it like the Pros” by Rod Gervais. ISBN: 1-59863-034-2 • “Studio Akustik” (in German) by Andreas Friesecke. ISBN: 978-3-932275-81-4 • “Praktische Raumakustik” (in German) by Thomas Hentschel. ISBN 978-3- 8364-6800-8 •...
  • Page 21: Technical Specifications

    Audio product manual TECHNICAL SPECIFICATIONS Product SC4070 Description 4-way Monitor Dimensions (WxHxD) (mm) 600 x 260 x 320 Dimensions (WxHxD) (“) 23.62 x 10.24 x 12.6 Frequency Range (-3dB) 32Hz - 25kHz Tweeter AMT RS3.1 Woofer 2 x 165mm / 6.5”...
  • Page 22: Compliance

    EN 61000-3-2: 2006 + A1:2009 + A2:2009 EN 61000-3-3: 2008 This declaration certifies that the quality control and product documentation complies with the current corresponding EU directives. Issued in Berlin. Signature Roland Stenz Managing Director EVE Audio COMPLIANCE Room Acoustics...
  • Page 23: Warranty

    Always keep the original packaging of any EVE Audio product: Only products with original packaging are eligible for warranty service. If the product is not packaged in its original box, EVE Audio will not be liable for any damages occurred during transit.
  • Page 24 . w w w. e v e - a u d i o. c o m . facebook.com/EveAudio . twitter.com/EveAudio Apr 2021 © EVE Audio. All rights reserved. EVE Audio reserves the right to make changes in or additions to the information provided at any time.
