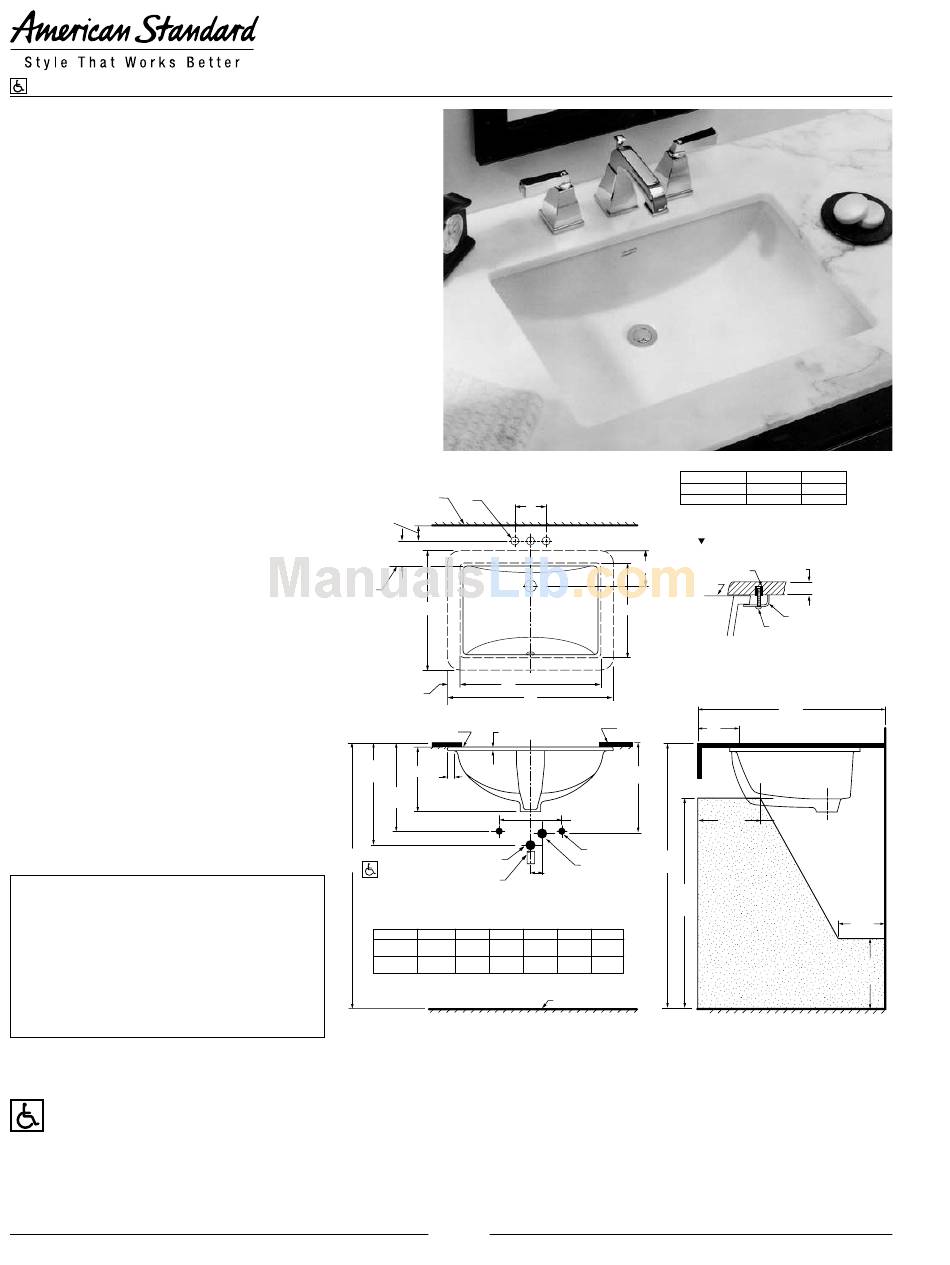

BARRIER FREE
STUDIO™ UNDERCOUNTER SINK
• Rectangular undercounter mount sink
• Made from vitreous china
• Front overflow
• Supplied with mounting kit (047194-0070A)
and template
❏
0614.000 Unglazed Rim
540 x 387mm
(21-1/4" x 15-1/4")
❏
0614.300 Glazed underside
Bowl size:
464mm (18-1/4") wide
308mm (12-1/8") front to back
171mm (6-3/4") deep
❏
0618.000 Unglazed Rim
600 x 422mm
(23-5/8" x 16-5/8")
❏
0618.300 Glazed underside
Bowl size:
537mm (21-1/8") wide
356mm (14") front to back
152mm (6") deep
Compliance Certifications -
Meets or Exceeds the
Following Specifications:
• ASME A112.19.2M for
Vitreous China Fixtures
• CAN/CSA B45 series
To Be Specified:
❏ Color: ❏ White ❏ Bone
❏ Linen ❏ Black
❏ Faucet*:
❏ Faucet Finish:
❏ Supplies:
❏ 1-1/4" Trap:
* See faucet section for additional models available
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 ACCESSIBLE AND USABLE
BUILDINGS AND FACILITIES - CHECK LOCAL CODES.
●
Countertop 864mm (34") from finished floor. Lavatory
installed 102mm (4") from front edge of countertop.
Countertop thickness to be 25mm (1") maximum.
© 2008 AS America Inc.
FINISHED WALL
A
OR SPLASHBACK
51mm
(2) MIN.
83mm
(3-1/4)
EDGE OF
COUNTER
TOP
F
CUTOUT
G
41mm
(1-5/8)
SEALING
13mm
COMPOUND
(1/2)
*
330mm
D
(13)
22mm
*
273mm
(7/8)
(10-3/4)
864mm
1-1/4 O.D.
(34)
WASTE
1-1/4 O.D.
TAILPIECE
CAT. NO.
E
F
G
540mm
387mm
464mm
0614.000
(21-1/4)
(15-1/4)
(18-1/4)
600mm
422mm
537mm
0618.000
(23-5/8)
(16-5/8)
(21-1/8)
NOTES:
WE RECOMMEND USING BASIN AS A TEMPLATE TO DETERMINE PROPER
CONTOUR. CUT COUNTERTOP 38MM (1-1/2") INSIDE BASIN CONTOUR.
*
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIED AND "P" TRAP ARE
SUGGESTED.
▼
UNDERCOUNTER MOUNTING KIT SUPPLIED WITH SINK.
FITTINGS NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARATELY.
SEALING COMPOUND SUPPLIED BY OTHERS.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the range
of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
J48
UNDERCOUNTER SINK
FITTING
CENTER-SET
SPREAD
B
C
LAVA
H
E
COUNTERTOP
102mm
(BY OTHERS)
*
279mm
(11)
203mm
(8)
SUPPLIES
AS REQ'D.
864mm
ADA DRAIN
(34)
38mm
OUTLET
(1-1/2)
686mm
(27)
MIN.
H
C
D
308mm
114mm
209mm
(12-1/8)
(4-1/2)
(8-1/4)
356mm
108mm
209mm
(14)
(4-1/4)
(8-1/4)
FINISHED FLOOR
STUDIO™
VITREOUS CHINA
A
B
1-1/16 (27mm)
4 (102mm)
1-1/4 (32mm)
8 (203mm)
DETAIL OF MOUNTING CLIP
(KIT No.47194.0070A)
19mm
BRASS
(3/4) MIN.
INSERT
CLIP
MACH.
SCREW
REFER TO INSTRUCTIONS
PROVIDED WITH KIT FOR
ADDITIONAL INFORMATION
610mm
(24)
(4)
203mm
(8)
MIN.
DRAWING FOR
DIMENSIONAL
PURPOSES ONLY.
IT IS NOT AN EXACT
REPRESENTATION.
152mm
(6)
MAX.
BARRIER FREE
CLEARANCE
229mm
(9)
MIN.
Revised 2/08
