American Standard CORNICE 0611 Installation Instructions Care And Maintenance

INSTALLATION INSTRUCTIONS
CARE AND MAINTENANCE
0611 CORNICE
™
Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product is installed
properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be
sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.
OBSERVE LOCAL PLUMBING AND BUILDING CODES
Recommended Tools & Materials
Tubing Cutter Tape Measure
Level

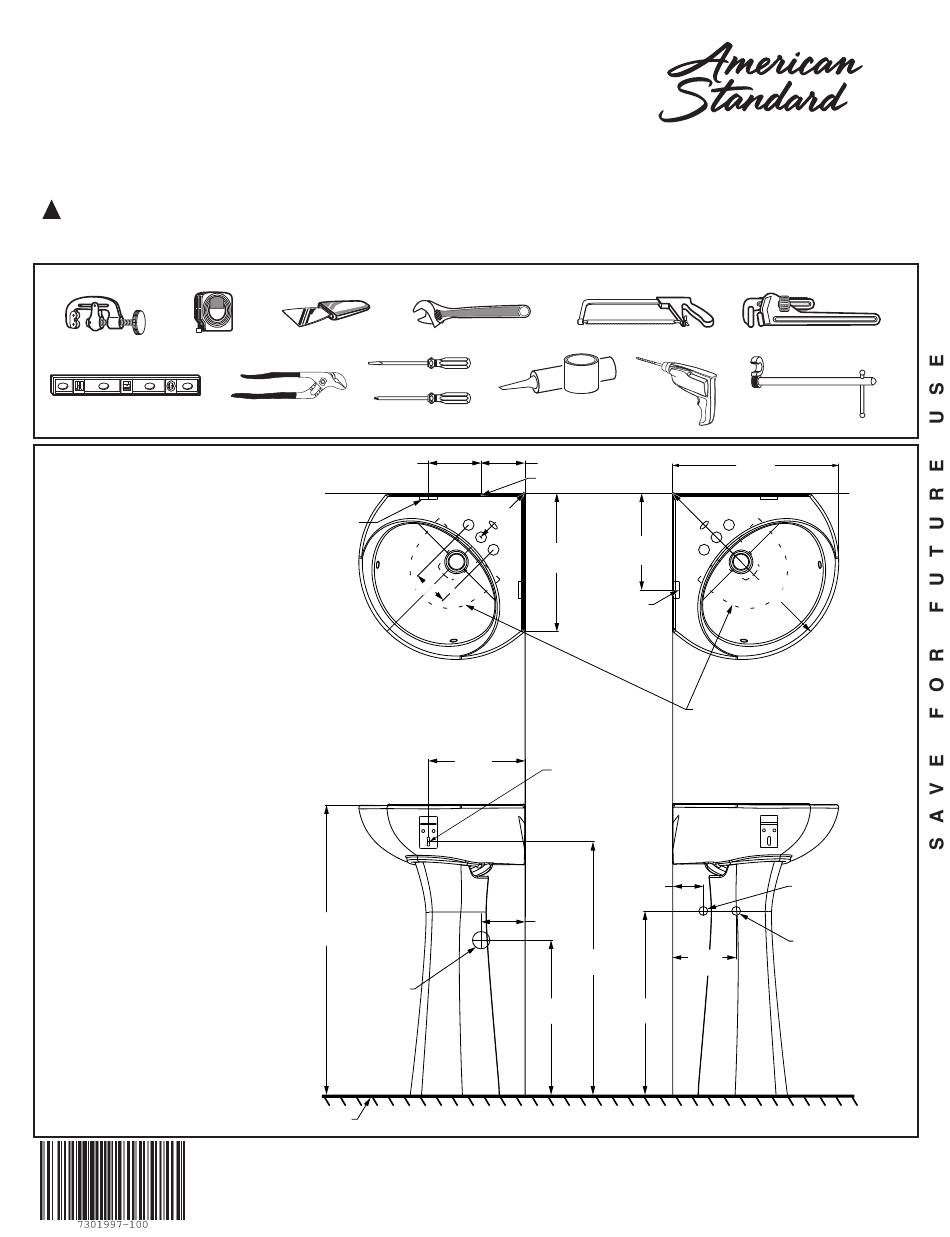

ROUGHING-IN DIMENSIONS:
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2020
PEDESTAL SINK
Putty Knife
Regular Screwdriver
Channel Lock Pliers Phillips Screwdriver
11" (279mm)
C/L HANGER
33-1/8"
(841mm)
C/L OUTLET
ROUGH
FINISHED FLOOR
Adjustable Wrench
Plumbers' Putty or
Caulking
5" (127mm)
C/L OUTLET ROUGH
7"
(179mm)
15-3/4"
(400mm)
4"
(102mm)
C/L HANGER
11"
CENTER OF SLOT
(279mm)
OF HANGER
5"
(127mm)
28-3/4"
(730mm)
17-3/4"
(451mm)
Hacksaw
Pipe Wrench
Basin Wrench
Drill
18-7/8"
(480mm)
11"
(279mm)
22-3/16"
(563mm)
OUTLINE OF
PEDESTAL
3-1/2"
(89mm)
7-1/4"
(184mm)
21"
(533mm)
3/8" (10mm)
HOT WATER
3/8" (10mm)
COLD WATER
