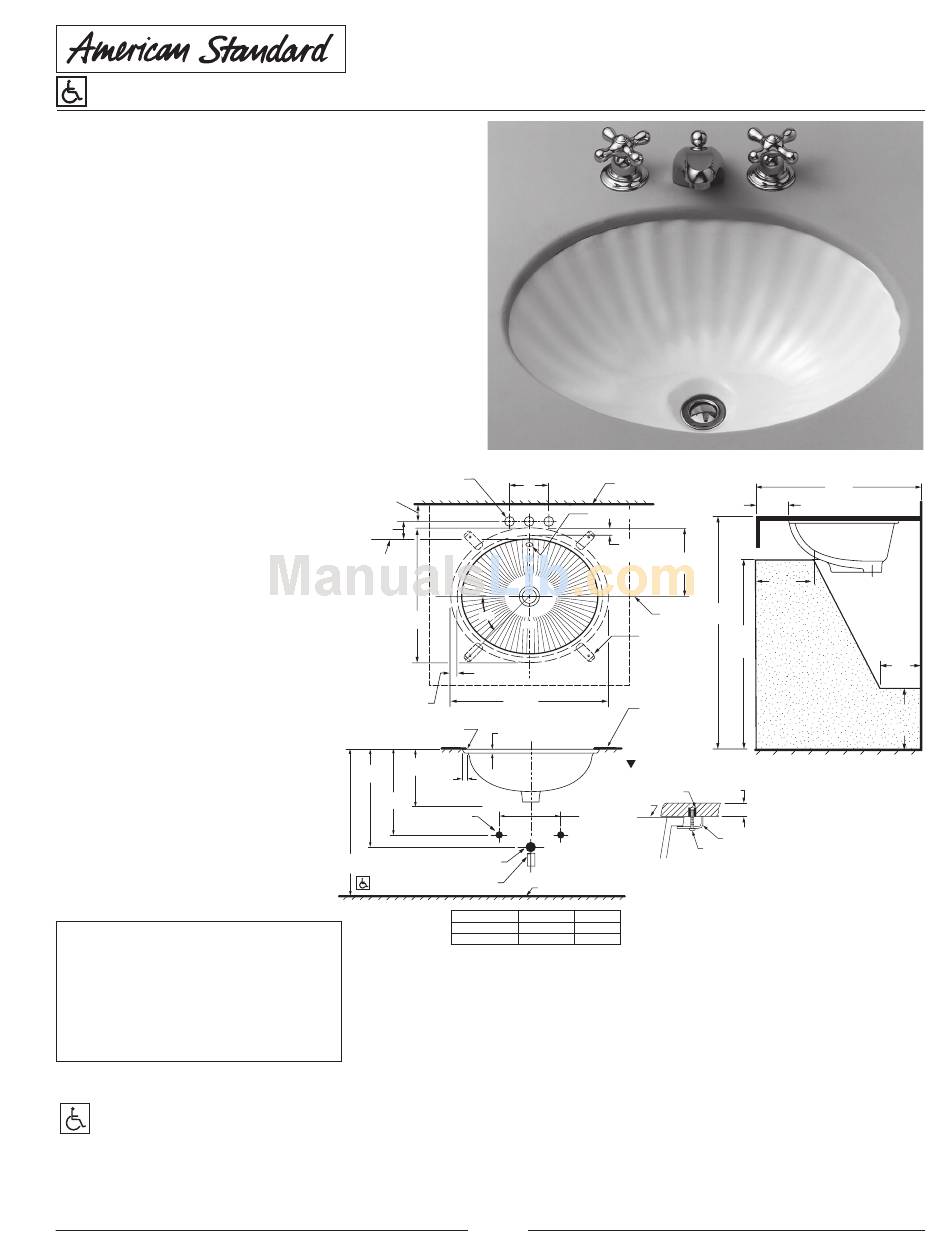

American Standard Glendale 0625.000 Specification Sheet

BARRIER FREE
GLENDALE™ UNDER COUNTER SINK
• Shell style pattern in bowl
• Made from vitreous china
• Unglazed rim for undermount
• Front overfl ow with option of rear overfl ow
installation for Barrier Free
• Center drain outlet
• Supplied with mounting kit (047194-0070A)
and template
❏
0625.000
464 x 381mm
(18-1/4" x 15")
Bowl Sizes:
406mm (16") wide
311mm (12-1/4") front to back
152mm (6") deep
Compliance Certifi cations -
Meets or Exceeds the
Following Specifi cations:
• ASME A112.19.2M for
Vitreous China Fixtures
To Be Specifi ed:
❏ Color:
❏ Faucet*:
❏ Faucet Finish:
❏ Supplies:
❏ 1-1/4" Trap:
* See faucet section for additional models available
MEETS THE AMERICANS WITH DISABILITIES ACT
GUIDELINES AND ANSI A117.1 ACCESSIBLE AND
USABLE BUILDINGS AND FACILITIES -
CHECK LOCAL CODES.
With overfl ow to the rear and countertop 864mm (34")
from fi nished fl oor. Lavatory installed 51mm (2") MIN.
from front edge of countertop. Countertop thickness to
be 25mm (1") maximum.
© 2006 American Standard Inc.
A
51mm
(2) MIN.
76mm
(3)
EDGE OF
COUNTER
TOP
CUTOUT
381mm
45°
(15)
25mm 464mm
(1) (18-1/4)
SEALING
19mm
COMPOUND
(3/4)
197mm
*
343mm
(7-3/4)
(13-1/2)
16mm
(5/8)
*
273mm
(10-3/4)
SUPPLIES
AS REQ'D.
1-1/4 O.D.
787mm (31)
864mm (34) WASTE
1-1/4 O.D.
TAILPIECE
FITTING
CENTER-SET
SPREAD
NOTES:
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P" TRAP ARE
*
SUGGESTED.
▼
UNDERCOUNTER MOUNTING KIT SUPPLIED WITH SINK.
FITTINGS NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARATELY.
IN-FIELD ADJUSTMENT OF POP-UP ROD EXTENSION REQUIRED. PROVIDE A
2-1/2" OFF-SET BEND FOR PROPER OPERATION.
USE ENCLOSED TEMPLATE FOR COUNTERTOP CUTOUT.
SEALING COMPOUND SUPPLIED BY OTHERS.
IMPORTANT: Dimensions of fi xtures are nominal and may vary within the range of
tolerances established by ANSI Standard A112.19.2. These measurements are
subject to change or cancellation. No responsibility is assumed for use of
superseded or voided pages.
