Magikitch'n FM-RMB-624 Specifications

Model FM-RMB/SMB 600 Series
Floor Radiant or Ceramic Coal Gas
Charbroiler

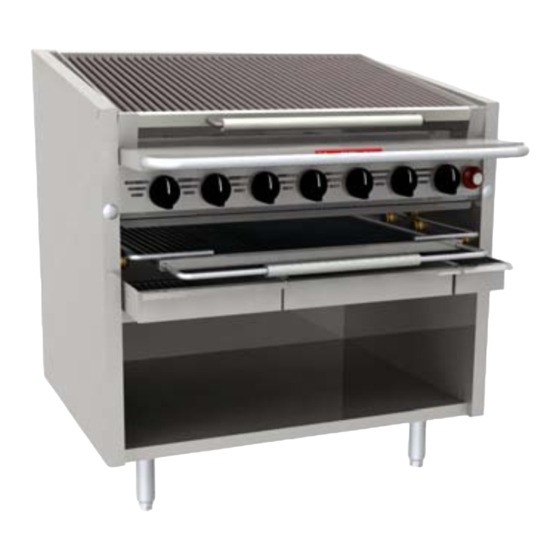

Unit shown with optional lower rack
OPTIONS & ACCESSORIES
Cooking Mode Conversion Kits
Ceramic Coal mode (from RMB to SMB)
SS Radiant mode (from SMB to RMB)
Cast Iron Radiants
Round Rod Top Grid
Fish spacing
MagiKrome Top Grids
Standard spacing
Scround Rod Top Grids
Standard spacing
6" Cast Iron Top Grids (
positions with reversible wide and thin marking)
Standard spacing
Service Shelf with towel bar
Low profile
10" (25.4 cm)
Supply shelf without towel bar
Pan Cutouts in Service Shelf (specify with order)
Divider for Pan cutouts
Cutting Boards
(10" or 12" shelves only)
Fajita Rack Inserts
MagiGriddle
(Replaces top grid)
Safety Pilot
(supervised pilot system, see gas installation
requirements)
Quick Disconnect gas hose and lanyard kit
Back Shelf
Slip On Covers
Side and Back Extensions
6" casters
Lower Rack
Smoker Box
MagiKitch'n
(AT ADDITIONAL COST)
Fish spacing
Fish spacing
3 independent adjustable
Fish spacing
8" (20.3 cm)
12" (30.5 cm)
(N/A with back shelf)
• P.O. Box 501, Concord
603-225-6684 • FAX: 603-225-8497 •
L10-136 Rev 3
Project_________________________
Item No.________________________
Quantity________________________
APPLICATION
The Model FM-RMB/SMB 600 Series is a high production
floor charbroiler. Many options and accessories are
available to tailor your charbroiler to match your menu
selection and operational needs in the kitchen. This series
is also available in a High Gas Output model for higher
temperatures for heavy production restaurants.
FM
-RMB-6xx-x
(Radiant Model)
Model Size Width and Gas Btu Output Rate
Standard Output**
624 60Kbtu/hr
630 90Kbtu/hr
636 105Kbtu/hr
648 150Kbtu/hr
660 195Kbtu/hr
672 240Kbtu/hr
STANDARD FEATURES & ACCESSORIES
FM-RMB-600 - V-shaped radiant for each burner
FM-SMB-600 - Ceramic coal screen
Free floating top grid ½" (1.3 cm) steel rods allows
expansion and contraction without warping
E-Z Tilt top grid drains grease into front trough
Round top grid with standard spacing with quick lift
handle
Convertible Radiant design to Coal style
Fully Insulated double walled outer cabinet
Stainless steel on all four sides
Water Tubs
6" (15.2 cm) stainless service shelf
Towel bar for utensil storage
Runner tube pilot system
Individual front burner controls for precise regulation
All stainless steel burners for long life
Single ¾" gas connection
Burners are 15Kbtu or optional High output 20Kbtu.
6" adjustable legs
Top Grid Scraper
APPROVALS
MEA Approved
,
NH 03302-0501 • 509 Route 3A, Bow, NH 03304
www.magikitch'n.com
08/07 Printed in the USA
MODELS
FM
-SMB-6xx-x
(Ceramic Coal Model)
(H) High Output
624-H 80Kbtu/hr
630-H 120Kbtu/hr
636-H 140Kbtu/hr
648-H 200Kbtu/hr
660-H 260Kbtu/hr
672-H 320Kbtu/hr
**
Standard
Output Only
