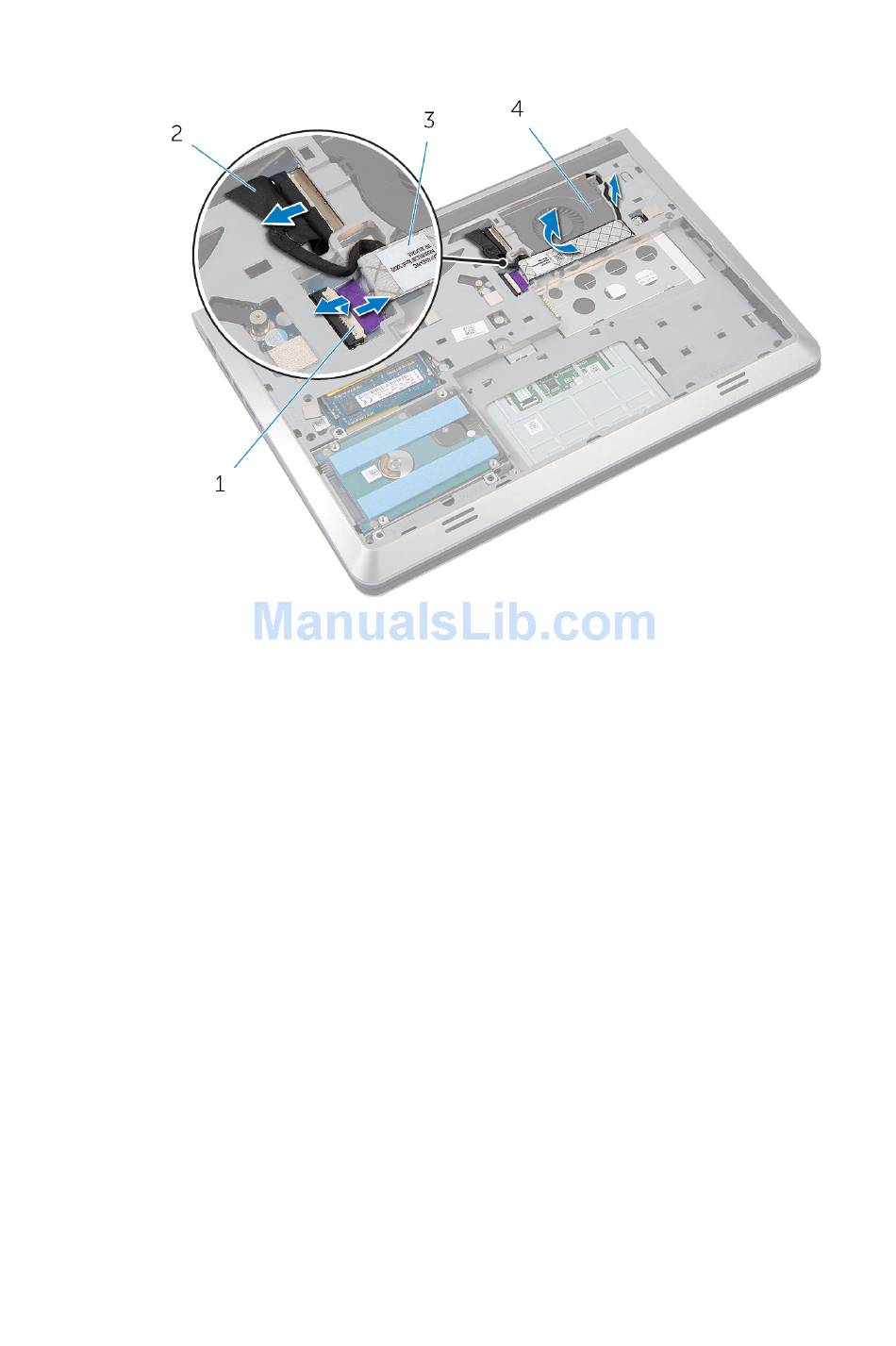

Note the display-cable routing and remove the cable from the routing
guides.
1
latch
3
I/O-board cable
5
Disconnect the fan cable from the system board.
6
Note the fan-cable routing and remove the cable from the routing
guides.
7
Remove the screws that secure the fan to the base frame.
2
display cable
4
fan
