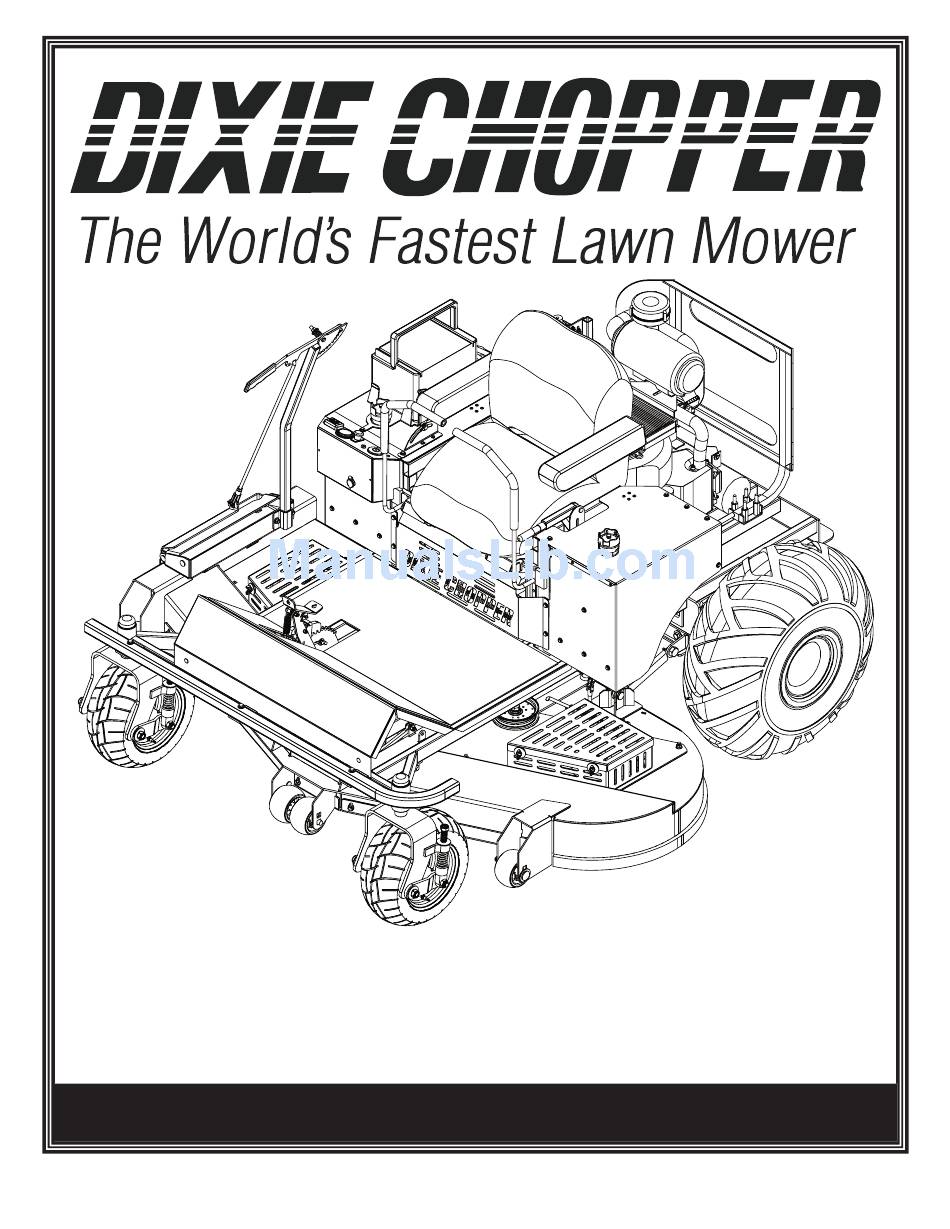

- Page 1 For Dixie Chopper Discount Parts Call 606-678-9623 or 606-561-4983 Model # ____________________ Engine Model # ____________________ Serial # ____________________ Engine Serial # ____________________ Date Purchased ____________________ Engine Spec. # ____________________ XCaliber Owner’s Manual 700110 January 2007 www.mymowerparts.com...
-
Page 2: About This Manual
Dixie Chopper Mowers. A space has been provided on the cover and below to record information about your new Dixie Chopper Mower. Please take time to record such information for future reference, especially when you contact an authorized Dixie Chopper Mower dealer with questions. -
Page 3: Table Of Contents
General Safety Precautions Safety Information Decals Safety Information Decals Mower Controls Operating the Mower Operating the Mower Mower Deck Adjustment Mower Deck Adjustment Routine Maintenance Dixie Chopper • 6302 E. County Road 100 N. • Coatesville, IN • 46121 • www.dixiechopper.com www.mymowerparts.com... - Page 4 Labor required for engine warranty will be covered by Dixie Chopper for the fi rst two years and at the unit owners expense during the third year.
-
Page 5: Optional Extended Warranty Programs
5 Year Extended Generac-Engine Warranty ($895) (5 Year Coverage from Purchase Date) This is an extension of the original three year warranty issued by Dixie Chopper and is subject to the same limitations. Please see Guardian Generac Engine owner’s manual for details of the original warranty. -
Page 6: Safety Information
• Check all belts for proper wear and correct tension. • Check engine oil and air fi lters as recommended in the engine manufacturers’ operators manual. Dixie Chopper • 6302 E. County Road 100 N. • Coatesville, IN • 46121 • www.dixiechopper.com www.mymowerparts.com... -
Page 7: General Safety Precautions
Do not operate the mower near any body of water, (lakes, ponds, riverbanks, etc.). When backing up, make sure the area behind you is clear. Dixie Chopper’s zero turning radius nearly eliminates the need for backing up. Simply turn the mower around within its own dimen- sion and proceed forward. - Page 8 Always run engine at idle for at least one minute (fi ve minutes maximum) for each hour of pre- vious running, before shutting down engine. Dixie Chopper • 6302 E. County Road 100 N. • Coatesville, IN • 46121 • www.dixiechopper.com www.mymowerparts.com...
-
Page 9: Safety Information Decals
PORTATION CHARGES TO AND FROM THE SERVICING DEALER. or necessary adjustments. DANGER Dixie Chopper • 6302 E. County Road 100 N. • Coatesville, IN • 46121 • www.dixiechopper.com www.mymowerparts.com... -
Page 10: Mower Controls
1. Ignition Switch 2. Electric Clutch Switch 3. Parking Brake 4. Deck Lift Pedal 5. Steering Control Levers 6. Throttle 7. Choke Dixie Chopper • 6302 E. County Road 100 N. • Coatesville, IN • 46121 • www.dixiechopper.com www.mymowerparts.com... -
Page 11: Throttle Control
1. Engine should NOT start if seat is not occupied. 2. With engine running, test operate seat switch by rising off seat. Engine should shut off. Dixie Chopper • 6302 E. County Road 100 N. • Coatesville, IN • 46121 • www.dixiechopper.com www.mymowerparts.com... -
Page 12: Operating The Mower
3500 when under load slow ground speed until engine maintains RPM as listed above. If at any time the engine does not operate consistently between the set parameters; contact your autho- rized Dixie Chopper dealer. Dixie Chopper • 6302 E. County Road 100 N. • Coatesville, IN • 46121 • www.dixiechopper.com www.mymowerparts.com... -
Page 13: Mowing Speed
3. Upper Screen with optional bolt-on lower screen on some models. SAFE OPERATION OF THIS MOWER IS THE SOLE RESPONSIBILITY OF THE OPERATOR! BE AWARE OF SURROUNDINGS AT ALL TIMES! Dixie Chopper • 6302 E. County Road 100 N. • Coatesville, IN • 46121 • www.dixiechopper.com www.mymowerparts.com... -
Page 14: Level Mower Deck
Dixie Chopper • 6302 E. County Road 100 N. • Coatesville, IN • 46121 • www.dixiechopper.com www.mymowerparts.com... -
Page 15: Routine Maintenance
4. Change engine oil fi lter per the engine manufacturer’s recommendations. Refer to Engine Owner’s Manual for recommendations and other maintenance items. 5. Service more often under dusty or dirty conditions. Dixie Chopper • 6302 E. County Road 100 N. • Coatesville, IN • 46121 • www.dixiechopper.com www.mymowerparts.com... - Page 16 With parking brake on, steering levers in the neutral lock position, and deck blades disengaged, start mower while sitting in the seat. When engine starts, lift up off the seat. The engine should shut down. If engine continues to run, see an authorized Dixie Chopper dealer to service the safety inter- lock system.
- Page 17 For Dixie Chopper Discount Parts Call 606-678-9623 or 606-561-4983 Routine Maintenance 1000 hours or Annually Front Caster Assembly (1 each side) 500 hours Steering Lever Pivot (1 each side Under Seat) Dixie Chopper • 6302 E. County Road 100 N. • Coatesville, IN • 46121 • www.dixiechopper.com www.mymowerparts.com...
- Page 18 Idler Pivot Arm Deck Hub Assemblies (3) Deck Engaging Swing Arm Scissor Linkage Pivot Deck Engaging Rod 100 hours Front Wheel Bearing (1 each side) Dixie Chopper • 6302 E. County Road 100 N. • Coatesville, IN • 46121 • www.dixiechopper.com www.mymowerparts.com...
- Page 19 For Dixie Chopper Discount Parts Call 606-678-9623 or 606-561-4983 Notes www.mymowerparts.com...
- Page 20 Coatesville, IN. 46121 Phone 1-765-CHOPPER www.dixiechopper.com Dixie Chopper, Magic Circle, and the Magic Circle Atom Logo are all trademarks of Magic Circle Corporation and may not be reproduced without permission. Printed In USA Specifi cations and instructions subject to change without notice.
