Page 1: Operators Manual

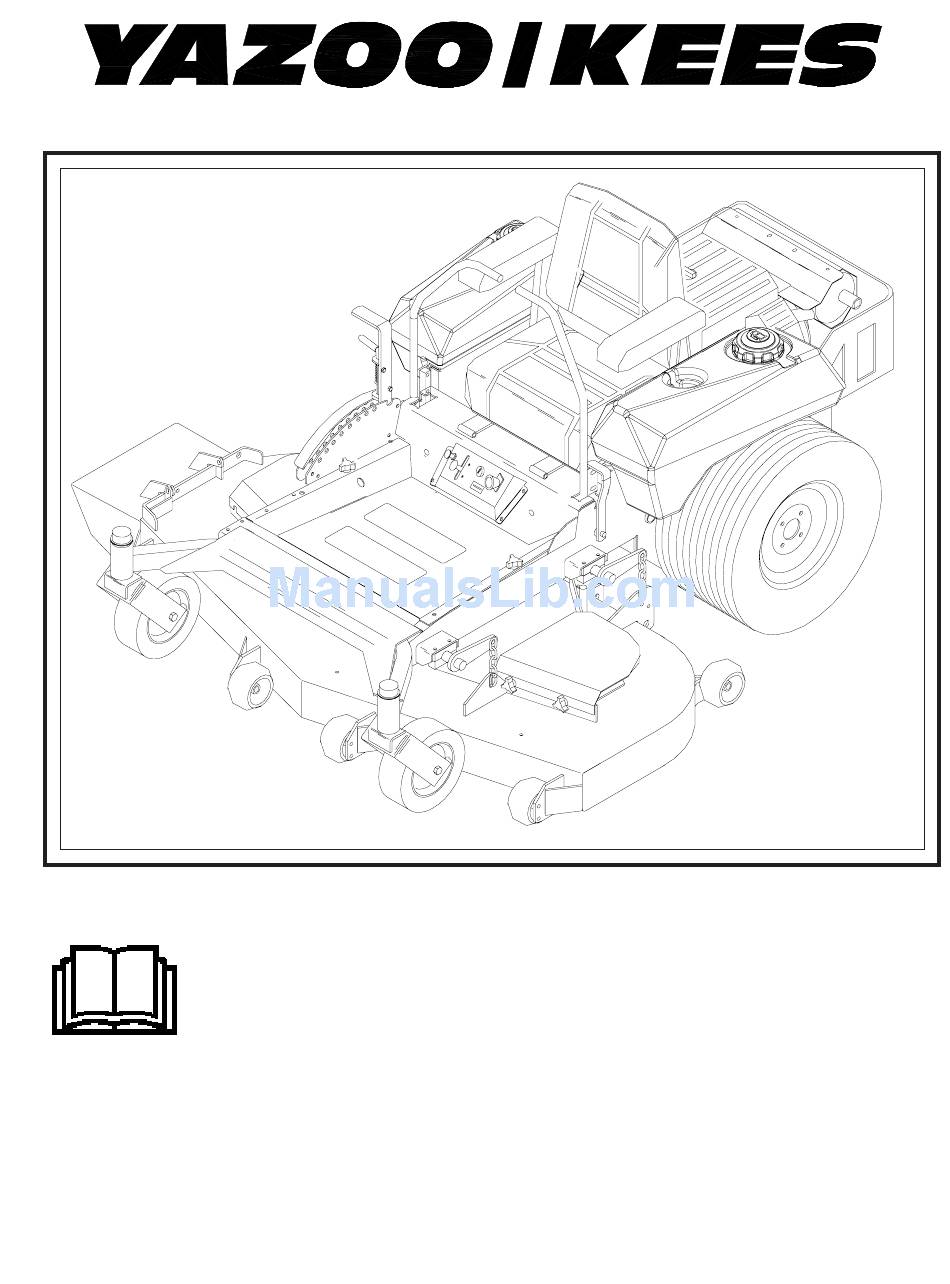

Models: Operators manual ZVKH61271 ZVKH72271 ZVKHL61231 ZVKW52251 ZVKW61251 Please read these instructions carefully and make ZVHO61241 sure you understand them before using the machine. For Serial No. 033600000 & Higher MANUAL NO. 109206 REV. IR (09/01/03) - Page 2 ©2003 Yazoo/Kees Power Equipment. All Rights Reserved. Beatrice, NE. Printed in U.S.A.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ........4-5 MAINTENANCE ........19 SYMBOLS & DECALS ......6 Engine oil ........19 SAFETY INSTRUCTIONS ....7 Mower blades ......19 General use and safety rules ..7-8 Safety interlock system ....19 Driving on slopes ......9 Cutter housings ...... -
Page 4: Introduction
INTRODUCTION Introduction Congratulations Thank you for purchasing a Yazoo/Kees ride-on mower. This machine is built for the greatest effi- ciency and rapid mowing of large areas. Convenient controls and a hydrostatic transmission regu- lated by steering levers also contribute to the machine’s performance. This manual is a valuable document. -
Page 5: Introduction
INTRODUCTION Good Service Yazoo/Kees products are sold all over the world and only in specialized retail stores with complete service. This ensures that you as a customer receive only the best support and service. Before the product is delivered, the machine has, for example, been inspected and adjusted by your retailer, see the certificate in the Service Journal in this operator’s manual. -
Page 6: Symbols & Decals
SYMBOLS AND DECALS Symbols and Decals These symbols are found on the machine and in the operator’s manual. Study them carefully so that you know what they mean. WA RNING! Xxxxxxx xxxx xxxxxxxx xxx x Xxxxx xxxxxx xx. xx xxxxxxxx xxxxx xxx xx. Used in this publication to notify the reader of a risk of personal injury, particularly if the reader should neglect to follow instructions given in the manual. -
Page 7: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions These instructions are for your safety. Read them carefully. WARNING! This symbol means that important safety instructions need to be emphasized. It concerns your safety. General Use • Read all instructions in this operator’s manual and on the machine before starting it. Ensure that you understand them and then abide by them. - Page 8 SAFETY INSTRUCTIONS • Be careful when rounding fixed objects, so that the blades do not hit them. Never drive over WARNING! foreign objects. Engine exhaust and certain vehicle components contain or emit chemi- • Only use the machine in daylight or in other cals considered to cause cancer, well-lit conditions.
-
Page 9: Driving On Slopes
SAFETY INSTRUCTIONS Driving on Slopes Driving on slopes is one of the operations where the risk is greatest that the driver will lose control or the machine will tip over, which can result in serious injury or death. All slopes require extra caution. -
Page 10: Children Safety
SAFETY INSTRUCTIONS Children: • Serious accidents may occur if you fail to be on guard for children in the vicinity of the ma- chine. Children are often attracted to the ma- chine and mowing work. Never assume that children will stay put where you last saw them. •... - Page 11 SAFETY INSTRUCTIONS • Allow the engine to cool before refueling. Do not smoke. Do not fill fuel in the vicinity of sparks or open flames. • If leaks arise in the fuel system, the engine must not be started until the problem has been resolved.
-
Page 12: Transportation
SAFETY INSTRUCTIONS • Never use the machine indoors or in spaces lacking proper ventilation. The exhaust fumes contain carbon monoxide, and odorless, poi- sonous, and lethal gas. • Stop and inspect the equipment if you run over or into anything. If necessary, make repairs before starting. -
Page 13: Presentation
PRESENTATION Presentation Thank you for buying a YAZOO/KEES! Before Lawnmowers and all power equipment, can be operating your new mower, read, understand potentially dangerous if used improperly. Safety and follow the safety instructions and other requires good judgement, careful use in accor- directions in this manual. -
Page 14: Setup And Adjustments
SETUP AND ADJUSTMENTS WARNING: No settings or adjustments are to be made unless: Engine is stopped, key has been removed, park brake is on and battery cable removed from battery. Setup Uncrate machine. Control Motion Control Mount rear drive wheels using the lug nuts Lever installed on the hubs. -
Page 15: Mower Deck Leveling
SETUP AND ADJUSTMENTS Rotate the motion control lever out into the Mower Deck Leveling neutral slot. While the lever is swung out into the Position machine on a flat surface. Preferably neutral slot pull it against the back edge of the level concrete. -
Page 16: Park Brake Adj
SETUP AND ADJUSTMENTS Park Brake Adjustment When park brake is in the engaged position the Spring 1/4” Gap distance between the trunion and the bolt head at the rear of the assembly should measure 1/8” to 1/4” and the spring should measure 1.25”. To adjust the gap between the trunion and the bolt head loosen the nut against the yoke then turn the bolt head the proper direction to achieve the... -
Page 17: Operating Instructions
OPERATING INSTRUCTIONS Run engine full throttle to make sure wheels do not rotate. Readjust if any rotation occurs. Repeat the whole process for the opposite side and tighten the nuts against the ball joints. Turn machine off. Reinstall the seat rod and check the wiring harness to the seat safety switch for a good connection and return the seat to the normal position. - Page 18 OPERATING INSTRUCTIONS By moving the levers an equal amount forward or back the machine will move in a straight line in that direction. FIG - 11 Movement of either lever forward will cause the right or left wheel to rotate in a forward direction. To stop movement pull both levers into the neutral position.
-
Page 19: Controls
MAINTENANCE Fuel shut off valve is located at the right rear of the seat. The valve has three positions a right tank, left Fuel Valve tank and center is the off position. FIG - 13. Pump release valves located at the right front corner of the pumps. -
Page 20: Hardware
MAINTENANCE Hardware Check daily. Inspect the entire machine for loose or missing hardware. Air filter See engine manufacturers specifications for cleaning and replacement intervals. Hydraulic system Check oil level in tank daily. Oil level should be 3/4” to 1” below the top of the tank. Check all fittings, hoses and lines for damage or leaks. -
Page 21: Pump Belt
MAINTENANCE Caster Wheels Pump belt Check every 200 hours. Lift front of unit off of Check belt every 100 hours for excessive wear. ground so caster wheels can rotate freely. To replace belt. Relieve tension on the deck belt Tighten caster bolt then back off 1/2 turn. Check and remove deck belt from clutch. -
Page 22: Torque Specifications
MAINTENANCE Torque Specifications · Engine crankshaft bolt 67 Nm(50 ft/lb) · Deck pulley bolts 61 Nm (45 ft/lb) · Hydraulic tube nuts 41 Nm (30 ft/lb) · Wheel motor hub nut 122 Nm (90 ft/lb) · Lug nuts 100 Nm (75 ft/lb) ·... -
Page 23: Maintenance Schedule
MAINTENANCE Maintenance Schedule For ZTH Riders Maintenance Maintenance Interval (hours) Daily Engine (4) Check oil level Change oil and filter (1) Clean the air filter’s (3) Replace air filter’s (3) Check for fuel and oil leakage Clean cooling flanges (3) Check cooling air inlet Check fuel pump’s air filter Replace fuel filter... -
Page 24: Trouble Shooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSES Blade switch on. Drive levers not in the neutral slots. Operator not in seat. ENGINE WILL NOT START. Park brake disengaged. Dead battery. Fuel valve closed or in the wrong position. No fuel. Spark plugs defective. Spark plug wires off. -
Page 25: Wiring Diagrams
WIRING DIAGRAMS CONSOLE HARNESS... - Page 26 WIRING DIAGRAMS CONSOLE HARNESS...
- Page 27 WIRING DIAGRAMS FRAME HARNESS...
-
Page 28: Wiring Diagrams
WIRING DIAGRAMS FRAME HARNESS...
