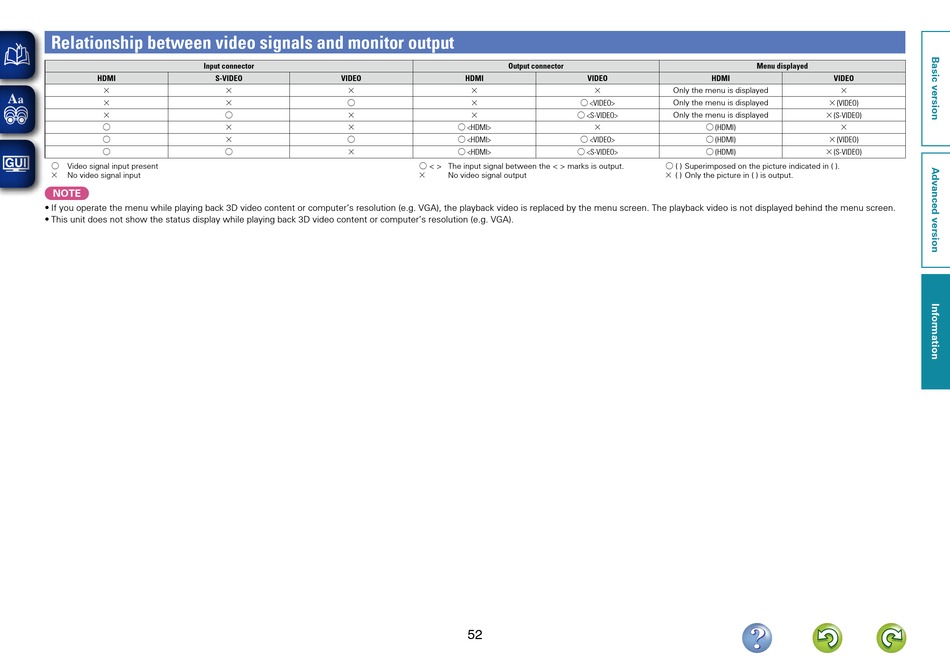

Relationship between video signals and monitor output

Input connector
HDMI S-VIDEO
A
A
A
S
S
S
S Video signal input present
A No video signal input
NOTE
• If you operate the menu while playing back 3D video content or computer's resolution (e.g. VGA), the playback video is replaced by the menu screen. The playback video is not displayed behind the menu screen.
• This unit does not show the status display while playing back 3D video content or computer's resolution (e.g. VGA).
VIDEO
A A
A S
S A
A A
A S
S A
Output connector
HDMI VIDEO
A A
A S <VIDEO>
A S <S-VIDEO>
S <HDMI> A
S <HDMI> S <VIDEO>
S <HDMI> S <S-VIDEO>
S < > The input signal between the < > marks is output.
A No video signal output
52
Menu displayed
HDMI VIDEO
Only the menu is displayed A
Only the menu is displayed A (VIDEO)
Only the menu is displayed A (S-VIDEO)
S (HDMI) A
S (HDMI) A (VIDEO)
S (HDMI) A (S-VIDEO)
S ( ) Superimposed on the picture indicated in ( ).
A ( ) Only the picture in ( ) is output.
