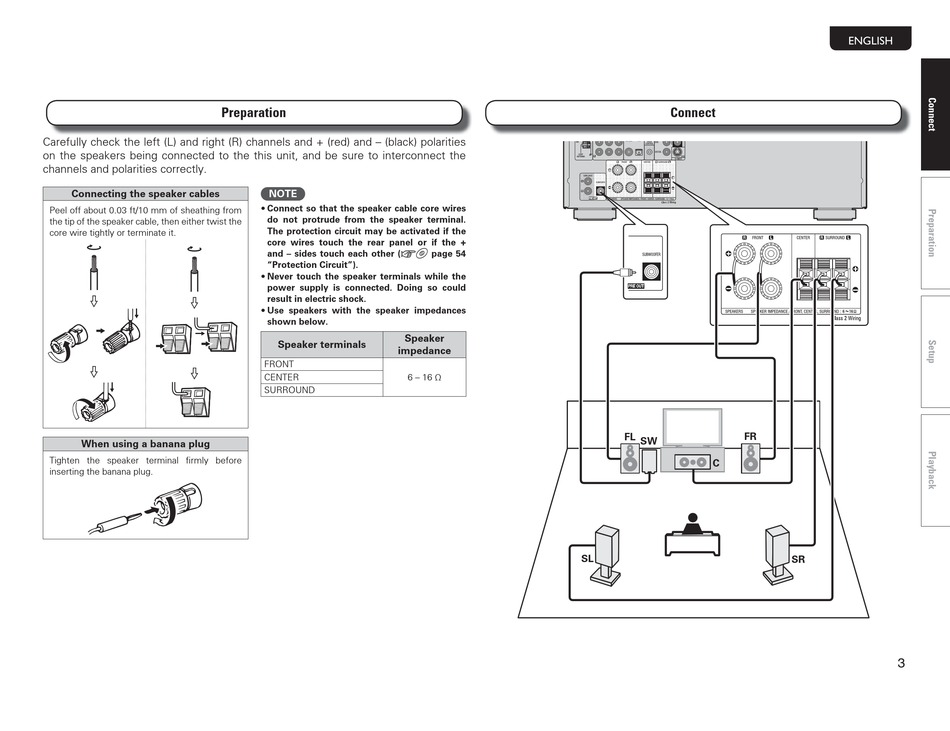

Denon AVR-1312 Getting Started page 6

SVENSKA NEDERLANDS ESPAÑOL PORTUGUÊS ESPAÑOL FRANÇAIS ENGLISH
NOTE
Connecting the speaker cables
Connect so that the speaker cable core wires
do not protrude from the speaker terminal.
The protection circuit may be activated if the
core wires touch the rear panel or if the +
and – sides touch each other (vm page 54
"Protection Circuit").
Never touch the speaker terminals while the
power supply is connected. Doing so could
result in electric shock.
Use speakers with the speaker impedances
shown below.
Speaker
Speaker terminals
impedance
FL FR
SW
When using a banana plug
C
SL
SR
3
