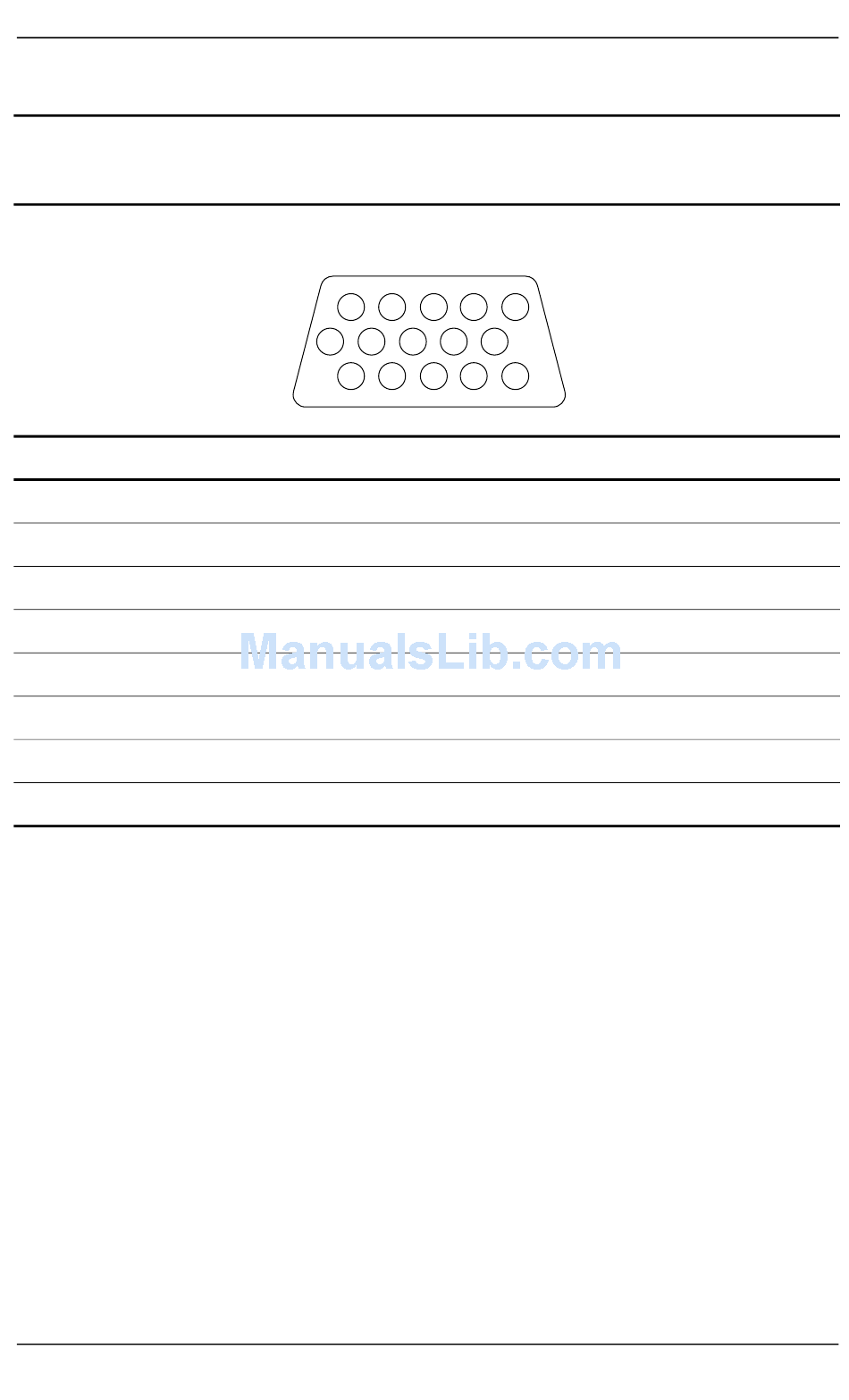

Compaq Evo Notebook N1005 Series Maintenance And Service Manual page 161

Pin Signal
1 Red analog
2 Green analog
3 Blue analog
4 Not connected
5 Ground
6 Ground analog
7 Ground analog
8 Ground analog
Maintenance and Service Guide
Table A-7
External Monitor
11
6
1
Pin
9
10
11
12
13
14
15
Connector Pin Assignments
15
10
5
Signal
+5 VDC
Ground
Monitor detect
DDC 2B data
Horizontal sync
Vertical sync
DDC 2B clock
A–5
