Removal and Replacement Procedures
4. Remove the two TM2.5 × 5.0 screws 1 that secure the
display release assembly to the palm rest (Figure 5-35).
5. Remove the assembly 2 from the palm rest.

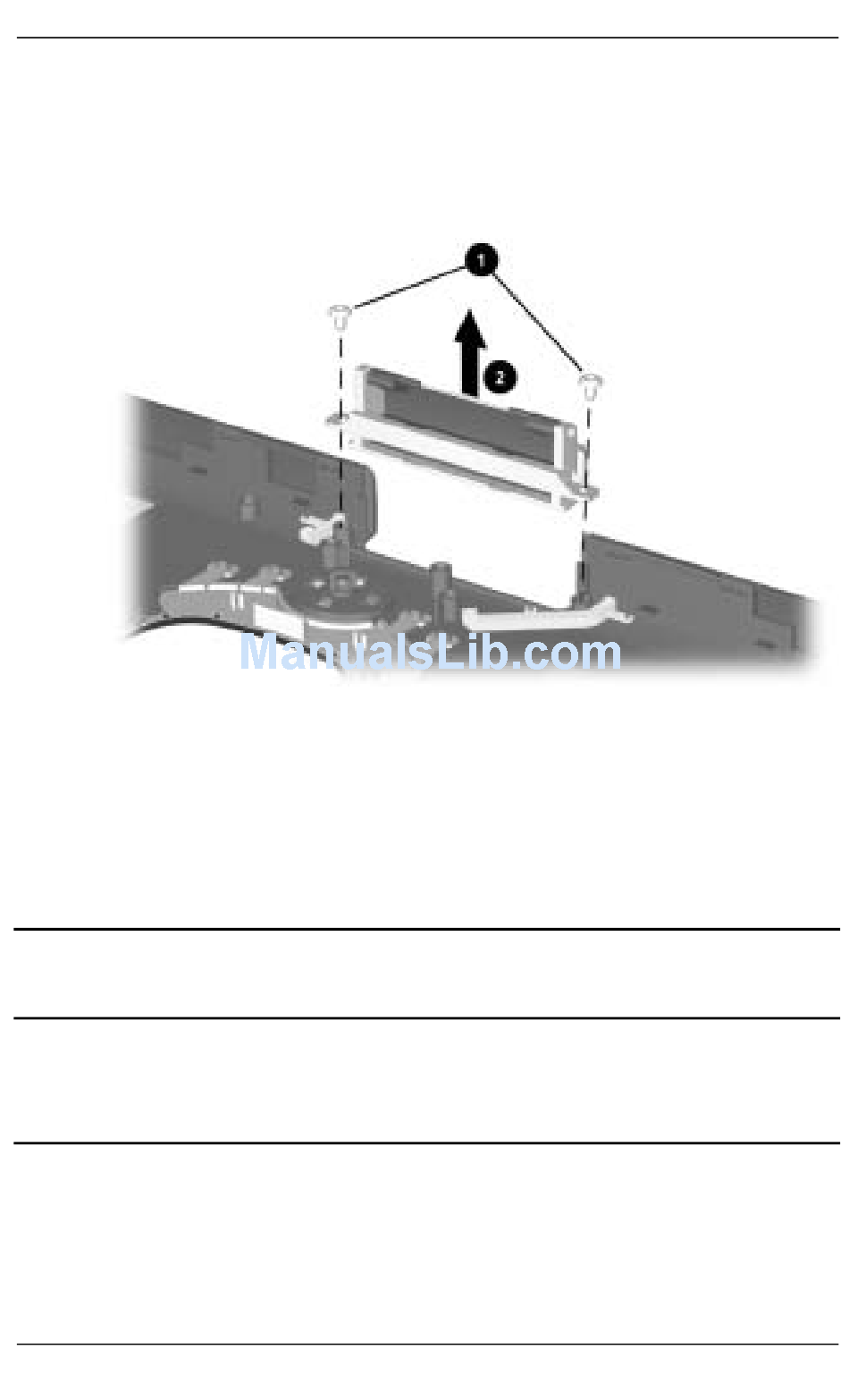

Figure 5-35. Removing the Display Release Assembly
Reverse the preceding procedures to install the display release
assembly.

5.18 Charger Board

Charger board
The charger board shield is included in the Miscellaneous
Plastics/Hardware Kit, spare part number 285541-001.
1. Prepare the computer for disassembly (Section 5.3).
2. Remove the palm rest (Section 5.14).
5–44
Charger Board
Spare Part Number Information
Maintenance and Service Guide
285525-001
