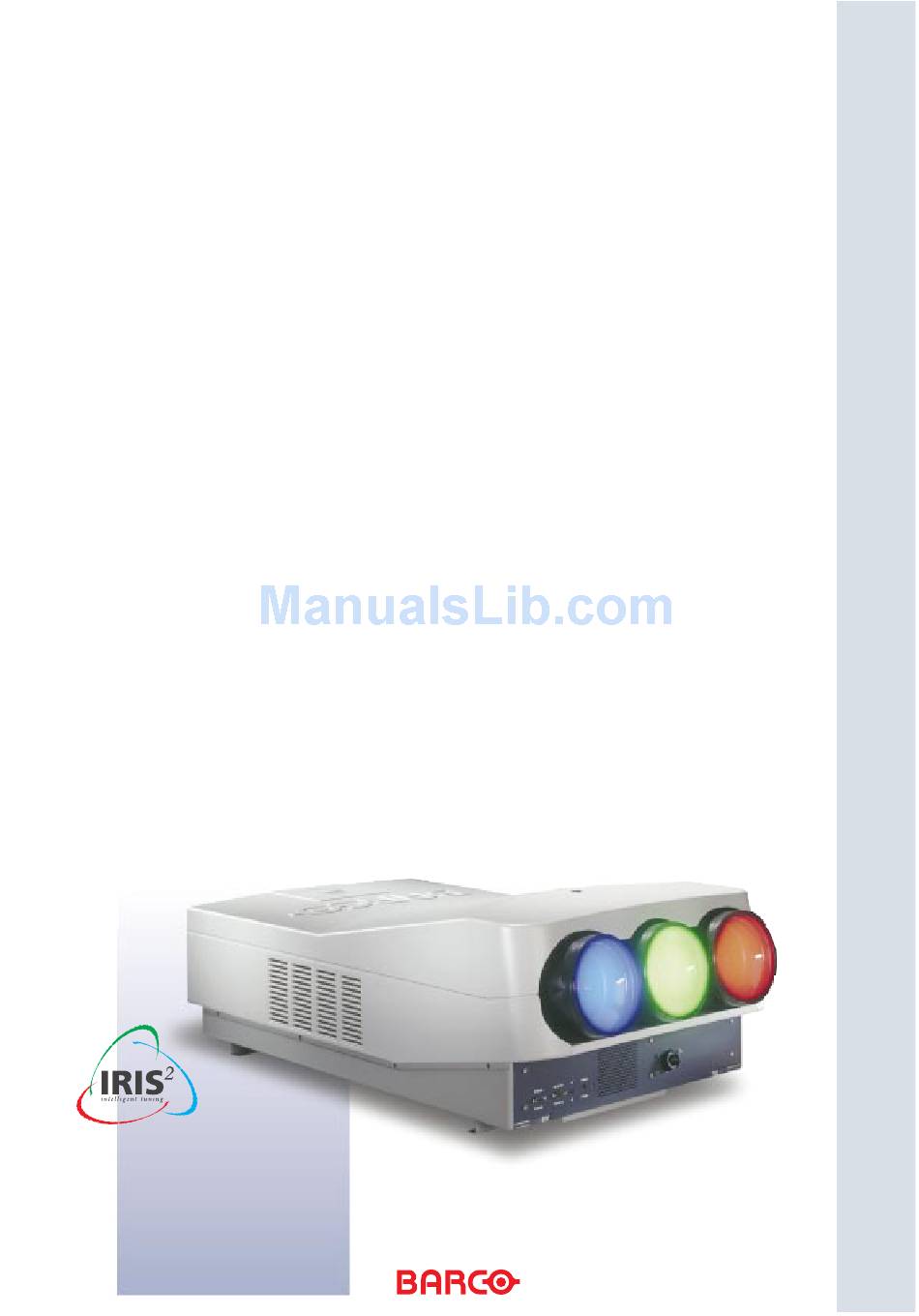

High Performance Graphics Projector
The B G 808s
A R C O R A P H I C S

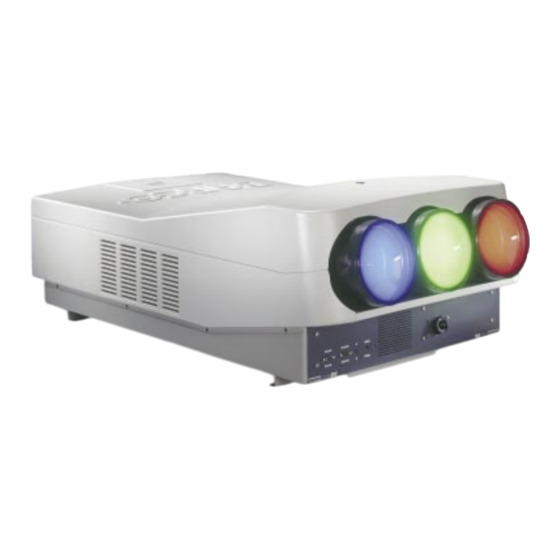

BARCO's new high performance
graphics projector designed to
project crystal clear images from
a wide range of high resolution
computer graphics workstations
and PC graphics boards on
screens up to 6 m (20 ft.) wide.
The BarcoGraphics 808s is ideally
suited for high resolution
applications such as CAD/CAM,
process control, command and
control management centres and
simulation.
New!
Now with Built-in
IRIS Auto-Convergence
2
RAPHICS 808s
is Outstanding image quality
The B G
ARCO RAPHICS
with unprecedented visual fidelity on screens from
1.4 m (4.6 ft.) up to 6 m (20 ft.) wide.
• High resolution 8" CRTs with electromagnetic focus
system
• High definition F1.06 hybrid lenses
• Optional built-in video line doubler
Broad compatibility
The B G
ARCO RAPHICS
compatibility from VHS video up to 1,600 by 1,200
pixel workstations.
• Horizontal autolock scan frequency range of
15-110 kHz
• Vertical scan frequency of 37 - 200 Hz autolock
• RGB bandwidth of 120 MHz
• Universal connection possibilities
Extremely flexible projector
• Built-in stepless Scheimpflug optical correction
for optimal optical focus for projection under
non-standard angles
• A range of options for multi-screen applications,
non-standard projection angles,...
• Extremely low RFI/EMI emissions: FCC part 15
Class B (120 V version) and CE EN55022 Class B (230 V
version)
• Built-in IRIS 2
on-screen convergence in less than 2.5 minutes with
more accuracy than ever before possible through the
conventional manual convergence process
808s renders large screen images
808s features a display
Automatic Convergence system aligns
