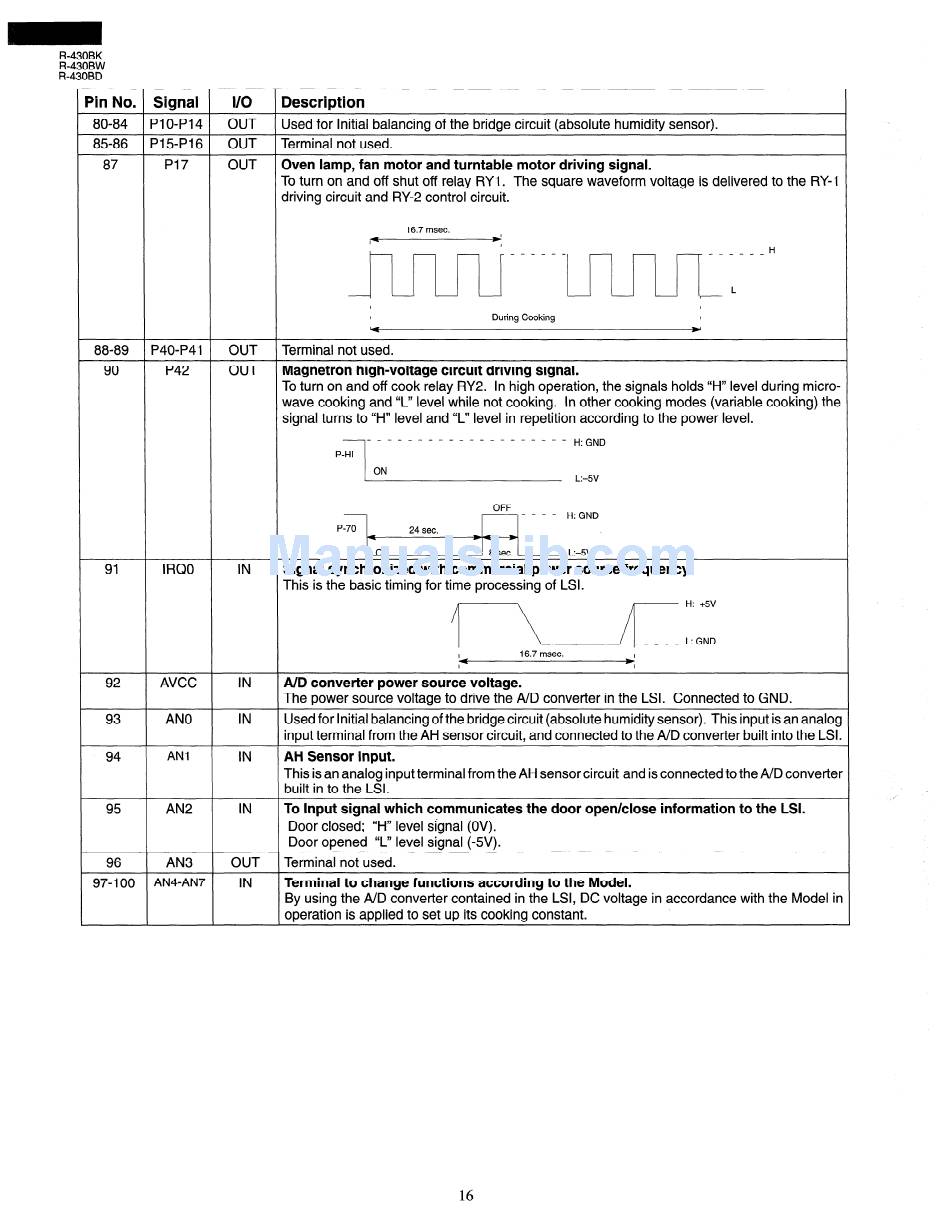

Pin No.
Signal
I/O
Description
80-84
PIO-PI4
OUT
Used for Initial balancing of the bridge circuit (absolute humidity sensor).
85-86
P15-PI6
OUT
Terminal not used.
87
PI7
OUT
Oven lamp, fan motor and turntable motor driving signal.
To turn on and off shut off relay RYI. The square waveform voltage is delivered to the RY-1
driving circuit and RY-2 control circuit.
16.7 msec.
"
1
~
'I-_----I
n
'I
R--L---H
I
I
I
During Cooking
I
'(
Y
88-89
P40-P41
OUT
Terminal not used.
90
P42
OUT
Magnetron high-voltage circuit driving signal.
To turn on and off cook relay RY2. In high operation, the signals holds "H" level during micro-
wave cooking and 'I" level while not cooking.
In other cooking modes (variable cooking) the
signal turns to "H" level and "L" level in repetition according to the power level.
- - -- -------
- --------
H: GND
P-HI
91
IRQO
IN
PF_
24 sec.
+rc
i'
Signal synchronized with commercial power source frequency.
This is the basic timing for time processing of LSI.
H: +5V
L: GND
92
AVCC
93
AN0
94
AN1
IN
IN
IN
I
16.7 msec.
d
I
I
A/D converter power source voltage.
The power source voltage to drive the A/D converter in the LSI. Connected to GND.
Used for Initial balancing of the bridge circuit (absolute humidity sensor). This input is an analog
input terminal from the AH sensor circuit, and connected to the A/D converter built into the LSI.
AH Sensor input.
This is an analog input terminal from the AH sensor circuit and is connected to the A/D converter
built in to the LSI.
95
AN2
IN
To Input signal which communicates the door open/close information to the LSI,
Door closed; "H" level signal (OV).
Door opened
'I_" level signal (-5V).
96
AN3
OUT
Terminal not used.
97-100
AN&AN7
IN
Terminal to change functions according to the Model.
By using the A/D converter contained in the LSI, DC voltage in accordance with the Model in
operation is applied to set up its cooking constant.
16
