R-430BK
EEY

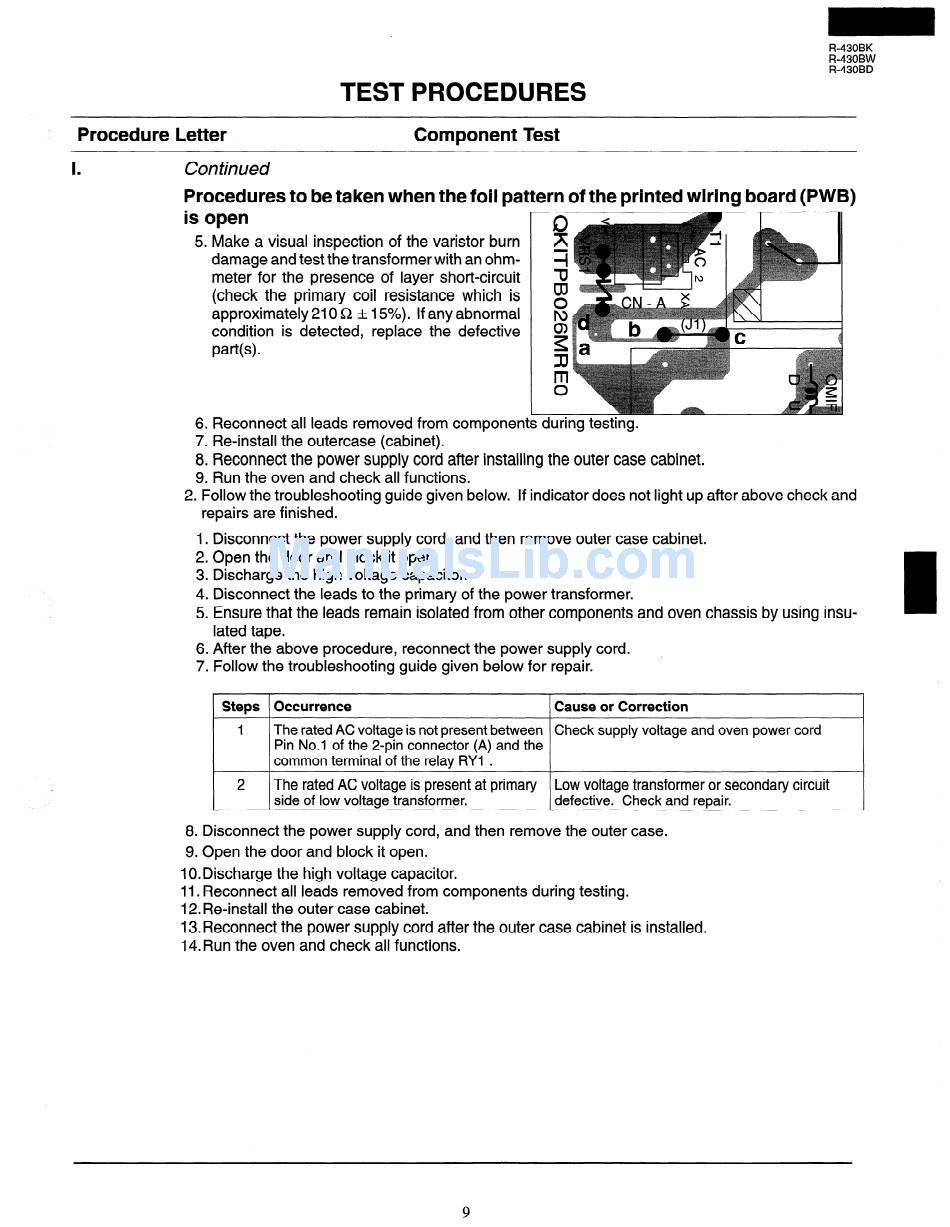

TEST PROCEDURES
.'
Procedure Letter
Component Test
1.
Continued
Procedures to be taken when the foil pattern of the printed wiring board (PWB)
is open
5.
Make a visual inspection of the varistor burn
damage and test the transformer with an ohm-
meter for the presence of layer short-circuit
(check the primary coil resistance which is
approximately 210 Q * 15%). If any abnormal
condition
is detected,
replace the defective
part(s) m
m
0
6. Reconnect all leads removed from components during testing.
7. Re-install the outercase (cabinet).
8. Reconnect the power supply cord after installing the outer case cabinet.
9. Run the oven and check all functions.
2. Follow the troubleshooting
guide given below. If indicator does not light up after above check and
repairs are finished.
1. Disconnect the power supply cord, and then remove outer case cabinet.
2. Open the door and block it open.
3. Discharge the high voltage capacitor.
4. Disconnect the leads to the primary of the power transformer.
5. Ensure that the leads remain isolated from other components and oven chassis by using insu-
lated tape.
6. After the above procedure, reconnect the power supply cord.
7. Follow the troubleshooting
guide given below for repair.
1 Steps
(
Occurrence
1
I I
The rated AC voltage is not present between
Check supply voltage and oven power cord
Pin No.1 of the 2-pin connector (A) and the
common terminal of the relay RYI
.
2
I
I
The rated AC voltage is present at primary
Low voltage transformer or secondary circuit
side of low voltage transformer.
defective.
Check and repair.
8. Disconnect the power supply cord, and then remove the outer case.
9. Open the door and block it open,
IO. Discharge the high voltage capacitor.
11. Reconnect all leads removed from components during testing.
12. Re-install the outer case cabinet.
13.Reconnect the power supply cord after the outer case cabinet is installed.
14.Run the oven and check all functions.
9
