LCDDVR4-500S Quick Start Guide

HARDWARE INSTALLATION

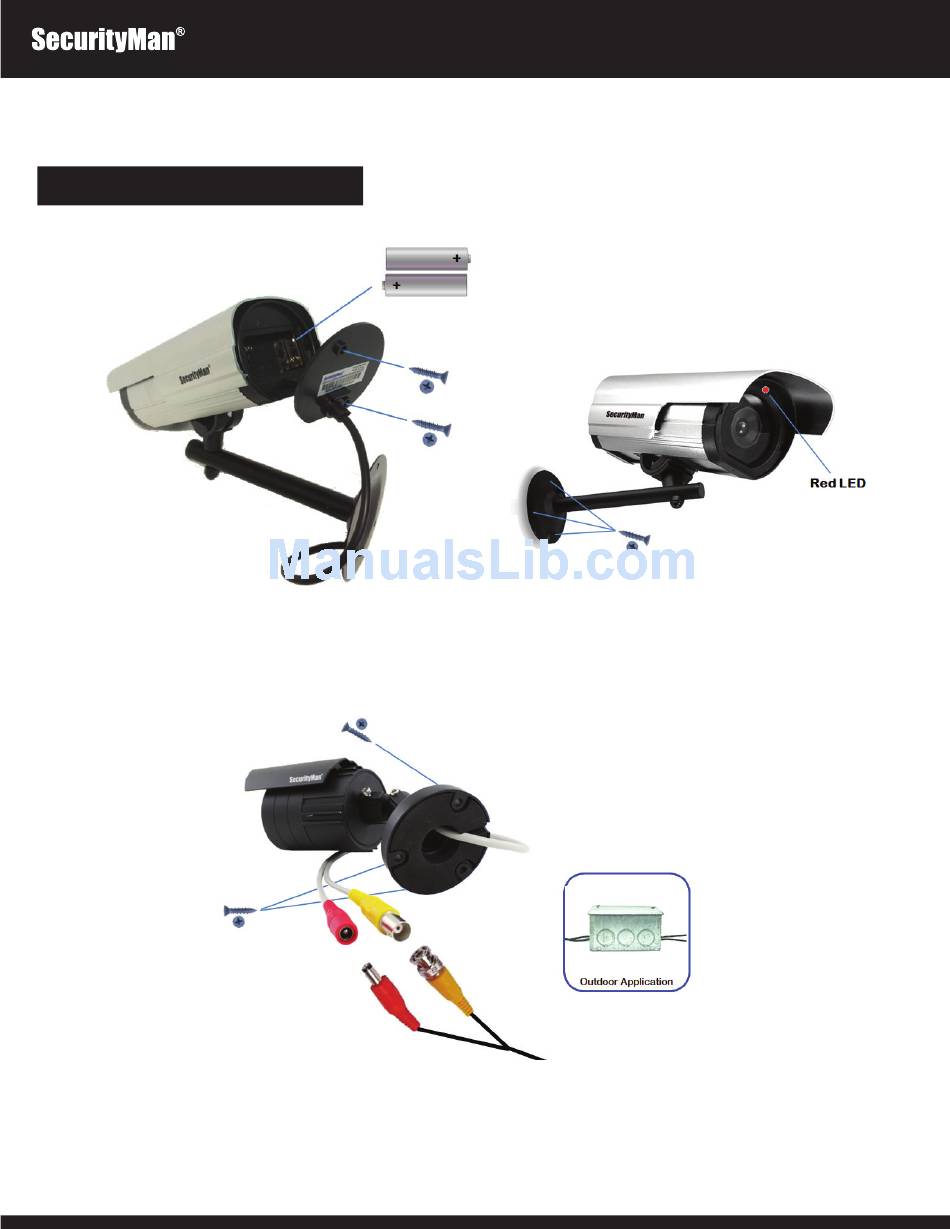

Using a Philips head screw driver, remove the back cover of the SM-3802 (dummy camera) and insert 2 AA batteries (not included). After inserting

the batteries, re-attach the back cover and secure the camera with mounting screws provided.

NOTE: Make sure that the Red LED locator in the front of the camera is flashing before mounting the camera to a desired location.

Connect the male ends of the 60ft VP cable to the female ends of the camera. To prevent electric shock and damage to the camera, please make sure to

properly insolate the camera's power and connections if being used in an outdoor application. Determine where the camera will be mounted and use the

screws provided to secure.

NOTE: Make sure you do not mount them no more than 60 ft from the DVR unless you have purchased additional BNC cable. Adjust the cameras to the

desired viewing angles.

Table of Contents

Do you have a question about the LCDDVR4-500S and is the answer not in the manual?

Page 1 LCDDVR4-500S Quick Start Guide HARDWARE INSTALLATION SM-3802 (Dummy Camera) Using a Philips head screw driver, remove the back cover of the SM-3802 (dummy camera) and insert 2 AA batteries (not included). After inserting the batteries, re-attach the back cover and secure the camera with mounting screws provided.
Page 2 LCDDVR4 CAMERAS: The first thing you want to do is get the female BNC end of the VP cables coming from the camera and connect them to the back of the DVR’s CH1 & CH2 Video IN ports. Make sure that you plug-n-twist the BNC connector into place to assure it is securely connected. Now, get the power adapter (12VDC 500mA) and insert the male end into the power socket of the 60ft VP cable and the other end into a wall outlet.
