Tripp Lite SRW12US33 Quick Manual

SmartRack 12U Extended-Depth Wall-Mount Rack
Enclosure Cabinet
MODEL NUMBER: SRW12US33

Description

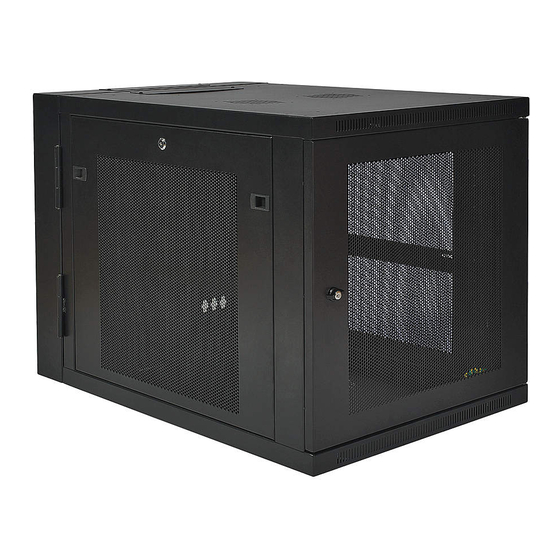

The SRW12US33 12U Extended-Depth Wall-Mount Rack Enclosure Cabinet is designed to integrate
wall-mounting, easy equipment access, and cable management in IT network applications with limited floor
space. Extended depth to 33" accommodates most 1U servers and provides extra clearance for cable
management. It has a heavy-duty steel construction to handle the added leverage. Ventilated front door and side
panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting
holes accommodate up to 12U of standard 19" rackmount equipment. Supports up to 250lbs of equipment. A
sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for
easy access to equipment and cabling. Top and bottom panels include convenient cutouts for cable routing.

Features

12U wall-mounted enclosure
Adjustable mounting depths from 3" to 33" - accommodates most 1U servers and simplifies cable management
Ventilated front door and side panels for increased airflow
Hinged cabinet swings away from wall bracket for easy equipment and cable access
Heavy duty construction to handle added leverage
Locking, reversible front door
Locking, removable side panels
Top and bottom panel cable access openings
Fully assembled for quick installation
Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance

Specifications

PHYSICAL

1 / 3
Highlights
12U with adjustable front and
rear vertical rackmount rails
33" depth accommodates most
1U servers and simplifies cable
management
Heavy duty construction supports
the added leverage
Hinged cabinet swings away
from wall bracket for easy
equipment access (swing
direction is reversible)
Locking, reversible front door and
locking, removable side panels
Fully assembled for quick
installation
Meets all enclosure requirements
towards PCI DSS (Payment Card
Industry Data Security Standard)
Compliance
Package Includes
SRW12US33 Wallmount Rack
Enclosure
(36) M6 screws
(36) M6 cage nuts
(36) M6 washers
(2) Keys
Owner's Manual
